Shaft Collars (10 Pack)

Shaft collars are common pieces of hardware used for capturing a shaft and constraining its range of linear motion.

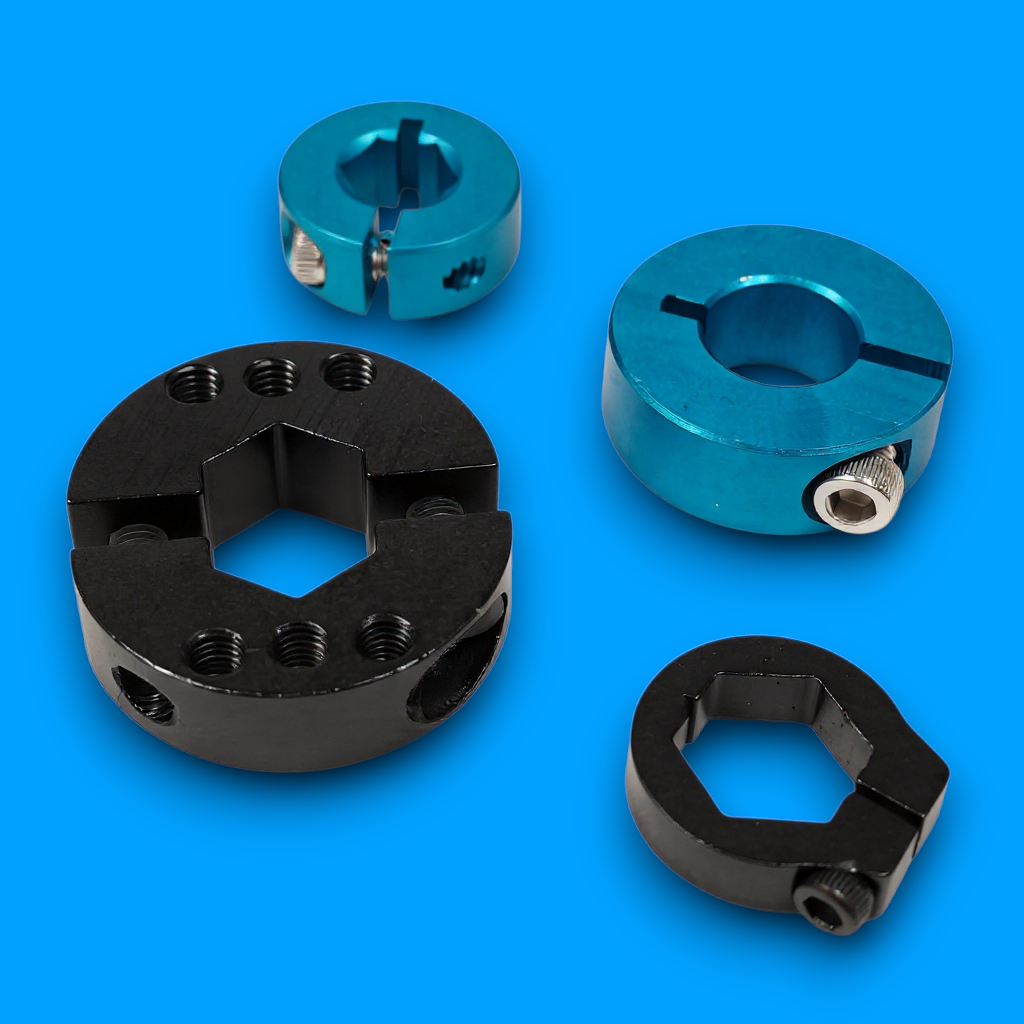

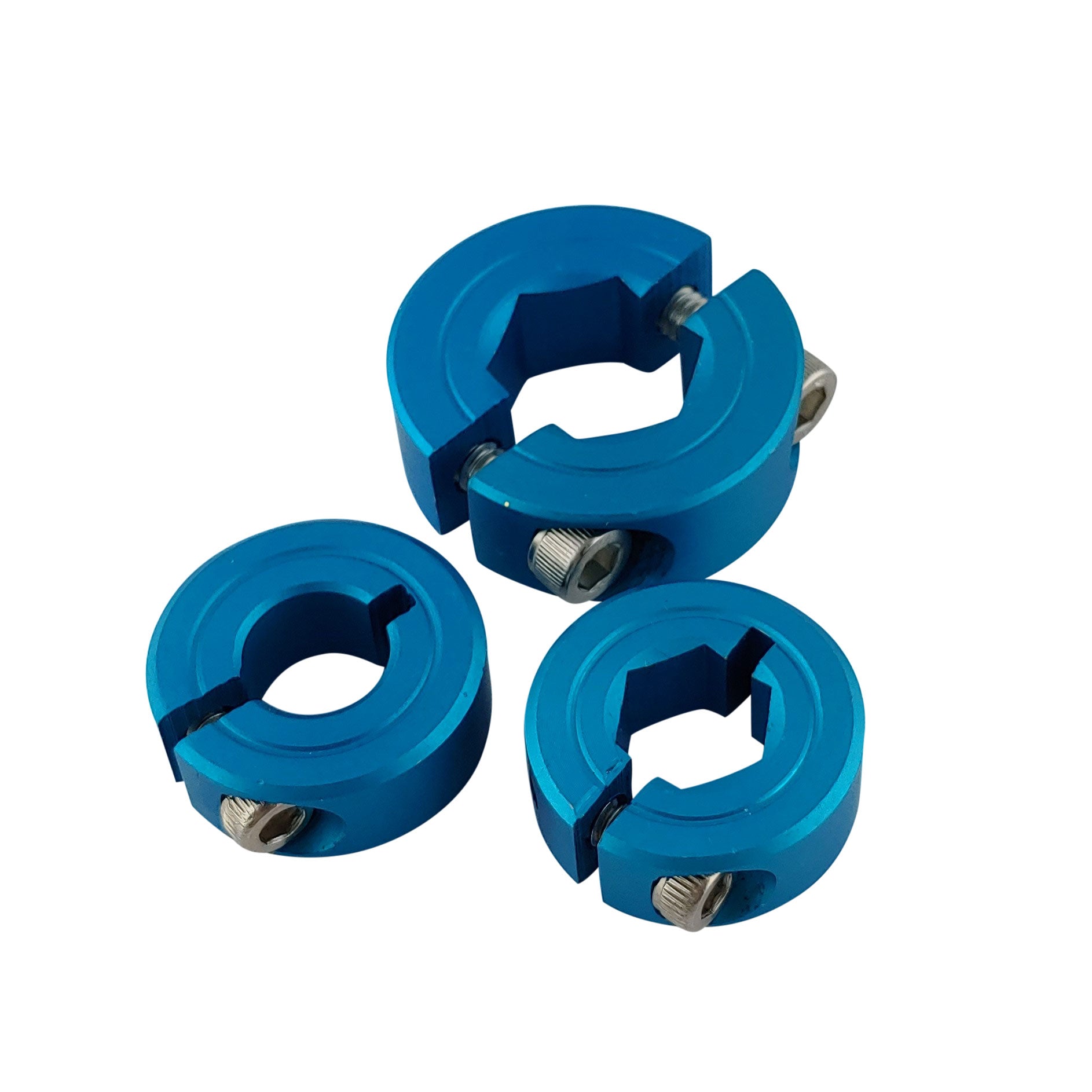

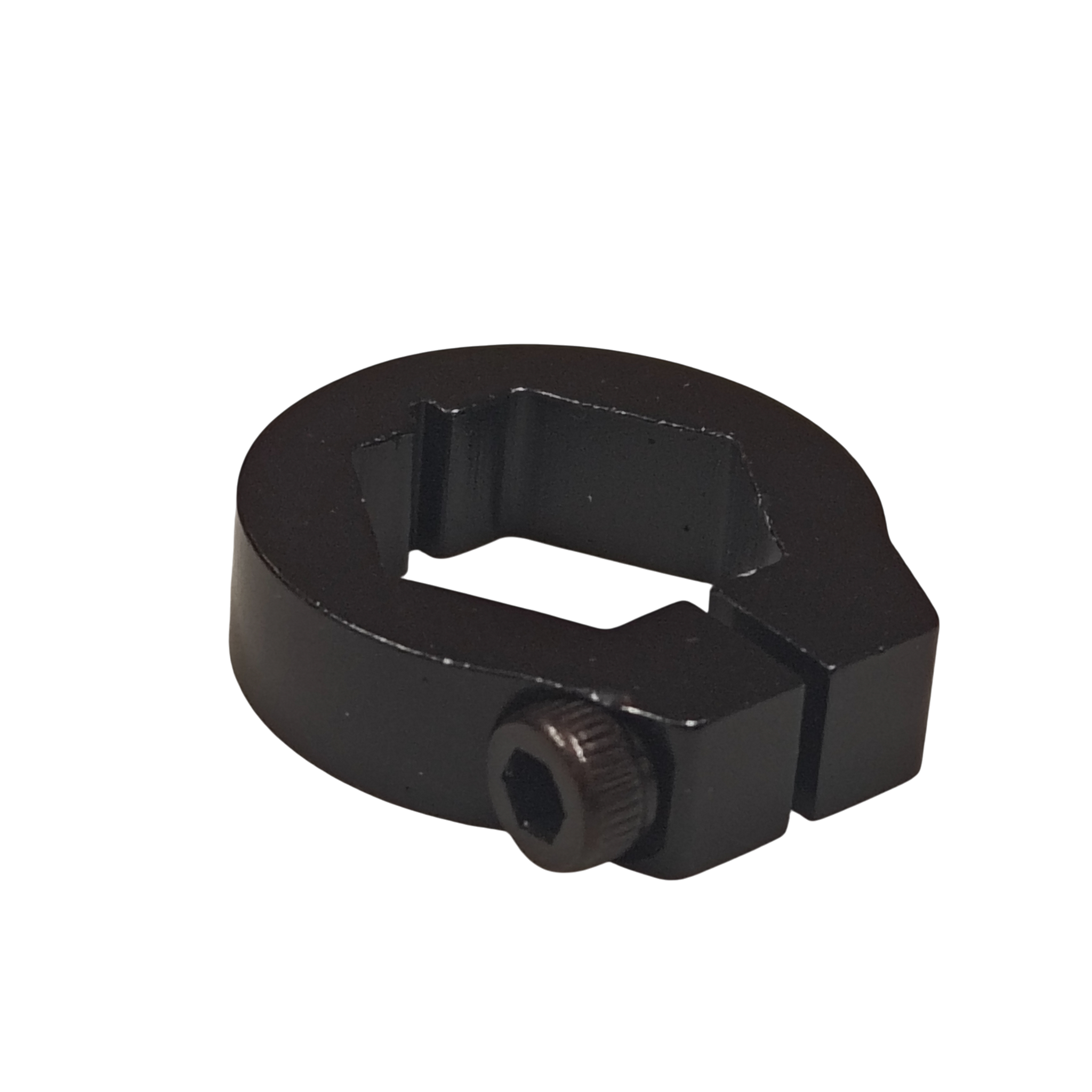

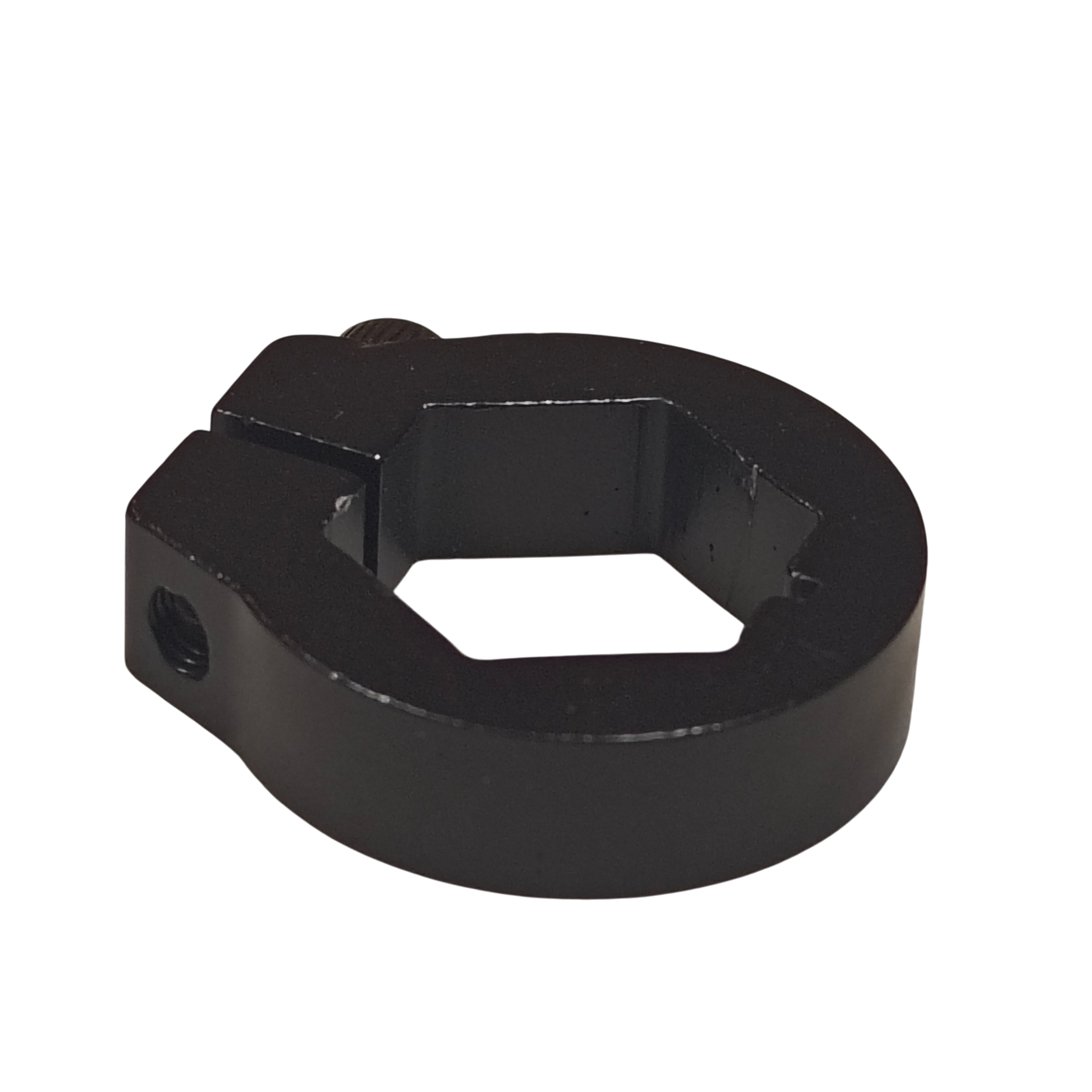

The shaft collars come in a variety of bores and styles (single or double split). All of the bolts used for adjusting the clamping force, use large socket heads to prevent thread stripping.

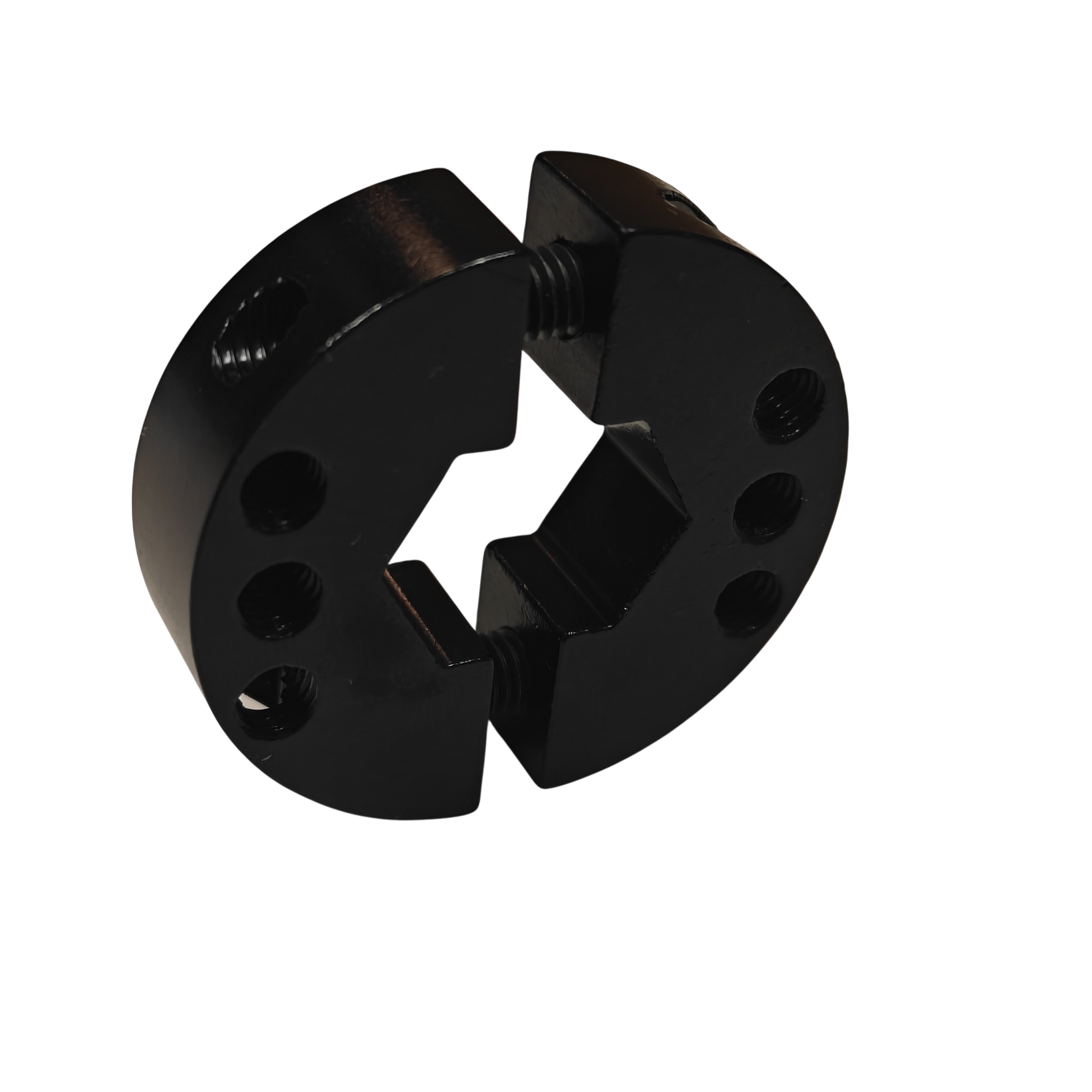

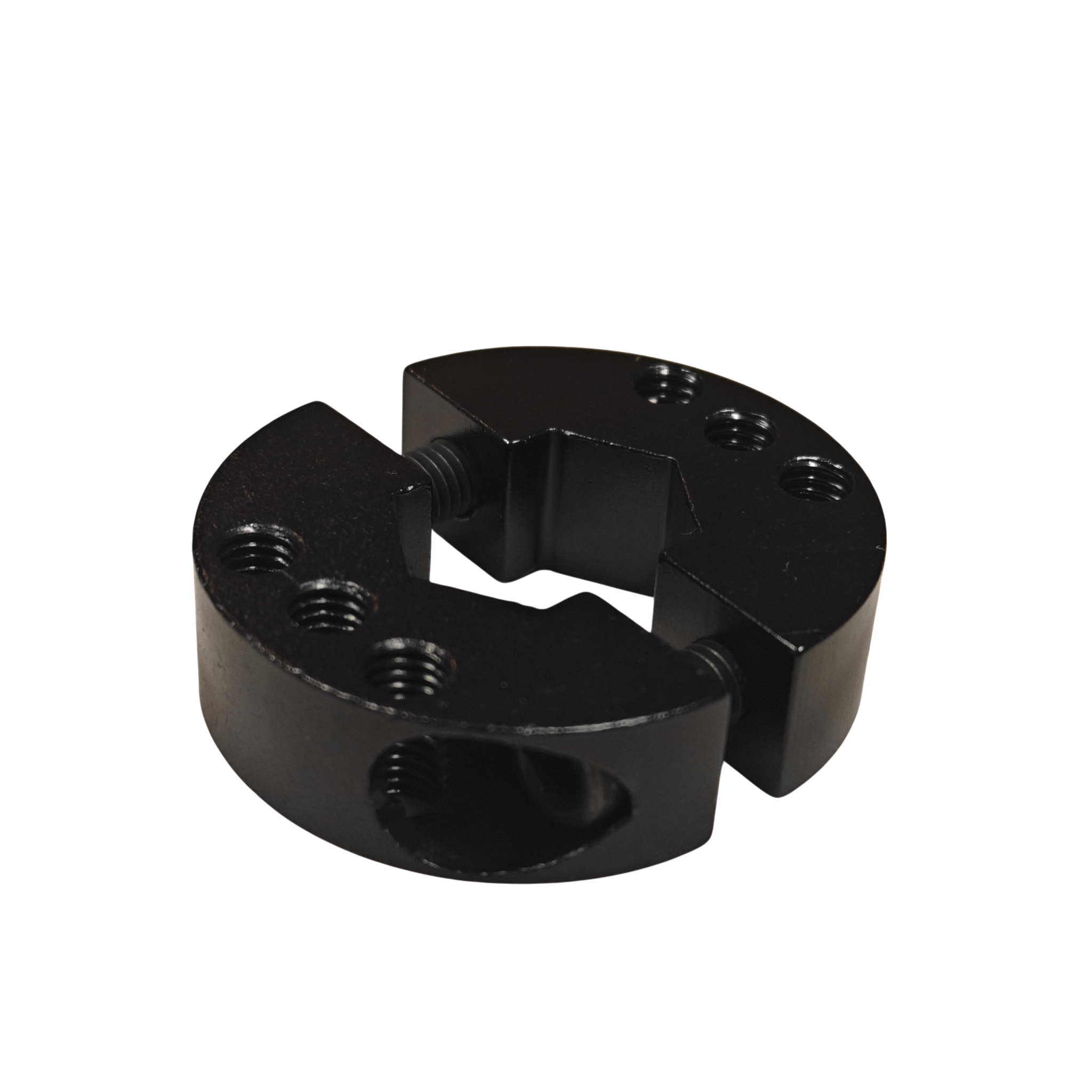

Use a double split shaft collars for the most demanding and high stress situations. The double split shaft collar offers higher clamping force and can also be installed without having to remove the shaft assembly.

STEP FILES:

SCH-0001

SCH-0002

SCH-0003

SCH-0004

SCH-0005
