SKU: SR-AXLE-HEX-0.5in-36in-AL7075
$15.99
$15.99
Limited-Time Offers, End in: 151D 8H 23M 0S
Type: 1/2" Hex (Fits 13.75mm Bearings)
Material: AL7075

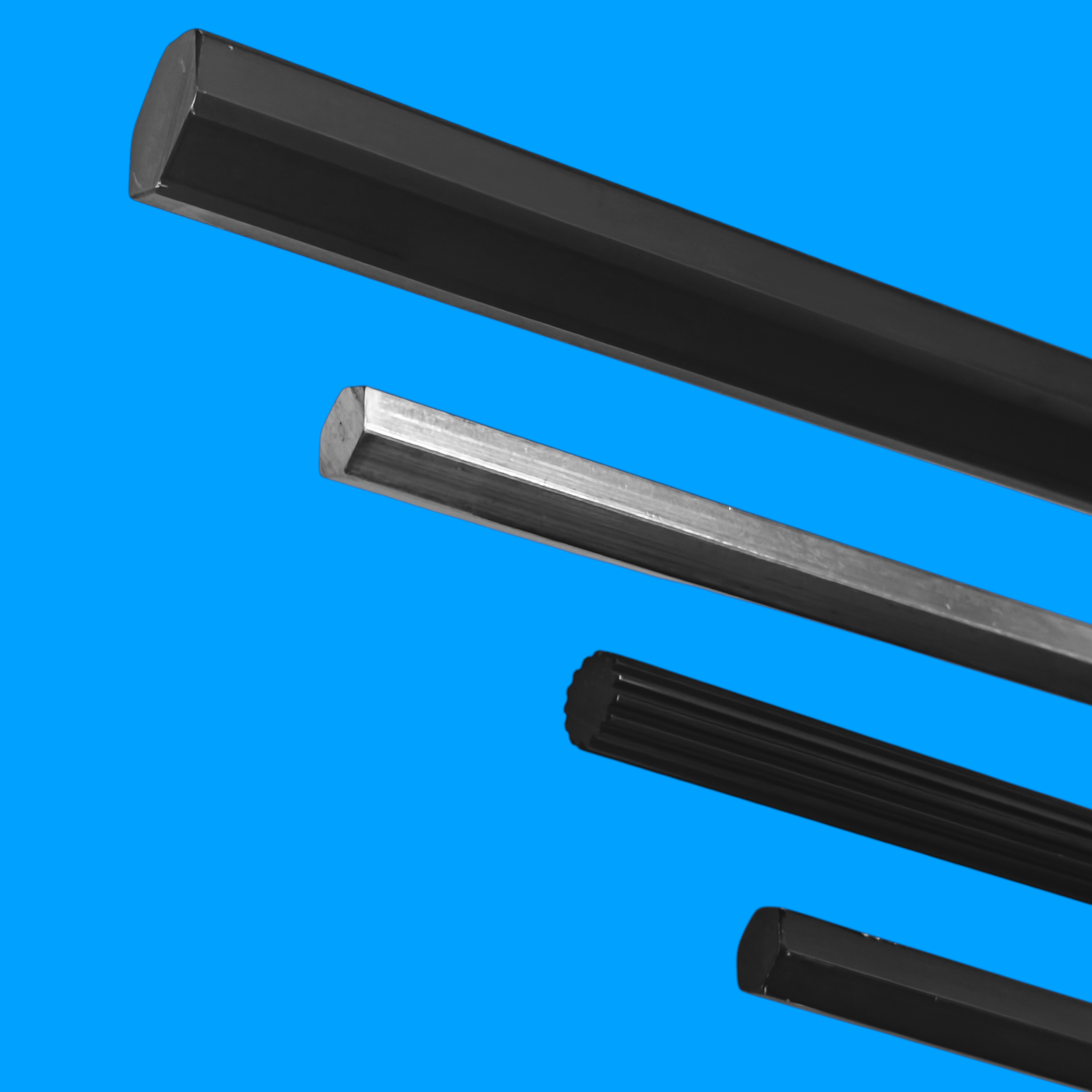

Build stronger and more efficient mechanisms with SWYFT Axles — precision-machined shafts available in multiple materials and configurations to match every FRC and FTC application. From ultra-strong stainless steel to lightweight aluminum options, SWYFT Axles give you the perfect balance of strength, weight, and customization.

Material & Application Guide

  • 304 Stainless Steel — The strongest shafts in the lineup. Ideal for high-load, high-stress applications such as large arms and heavy mechanisms.
  • 7075 Aluminum — Excellent strength-to-weight ratio. Strong enough for nearly all tasks while keeping weight low. Perfect balance for most robots.
  • 6061 Aluminum — Lightweight with center holes for easy modification. Best suited for lower-load applications like intakes and light mechanisms. Also great for standoffs

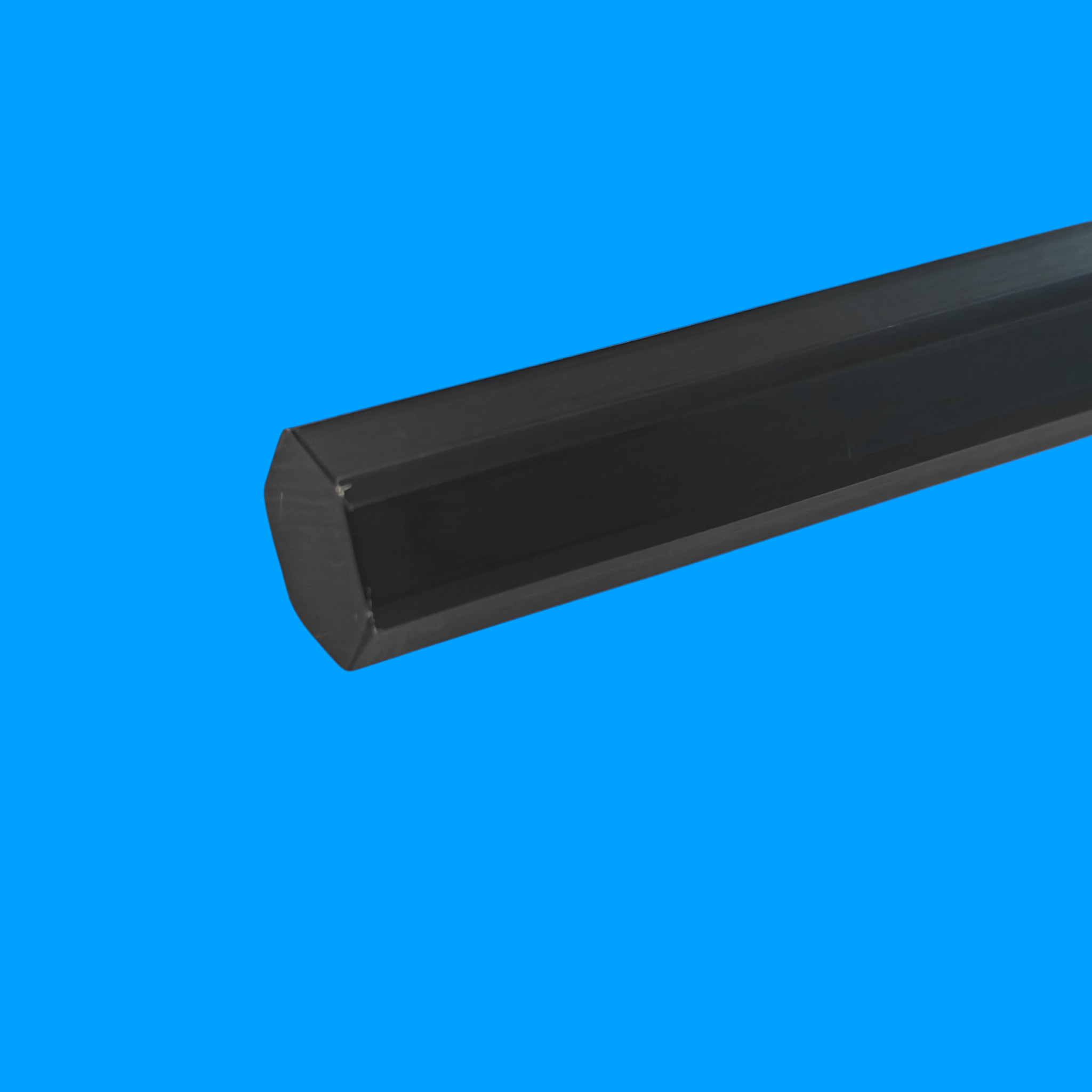

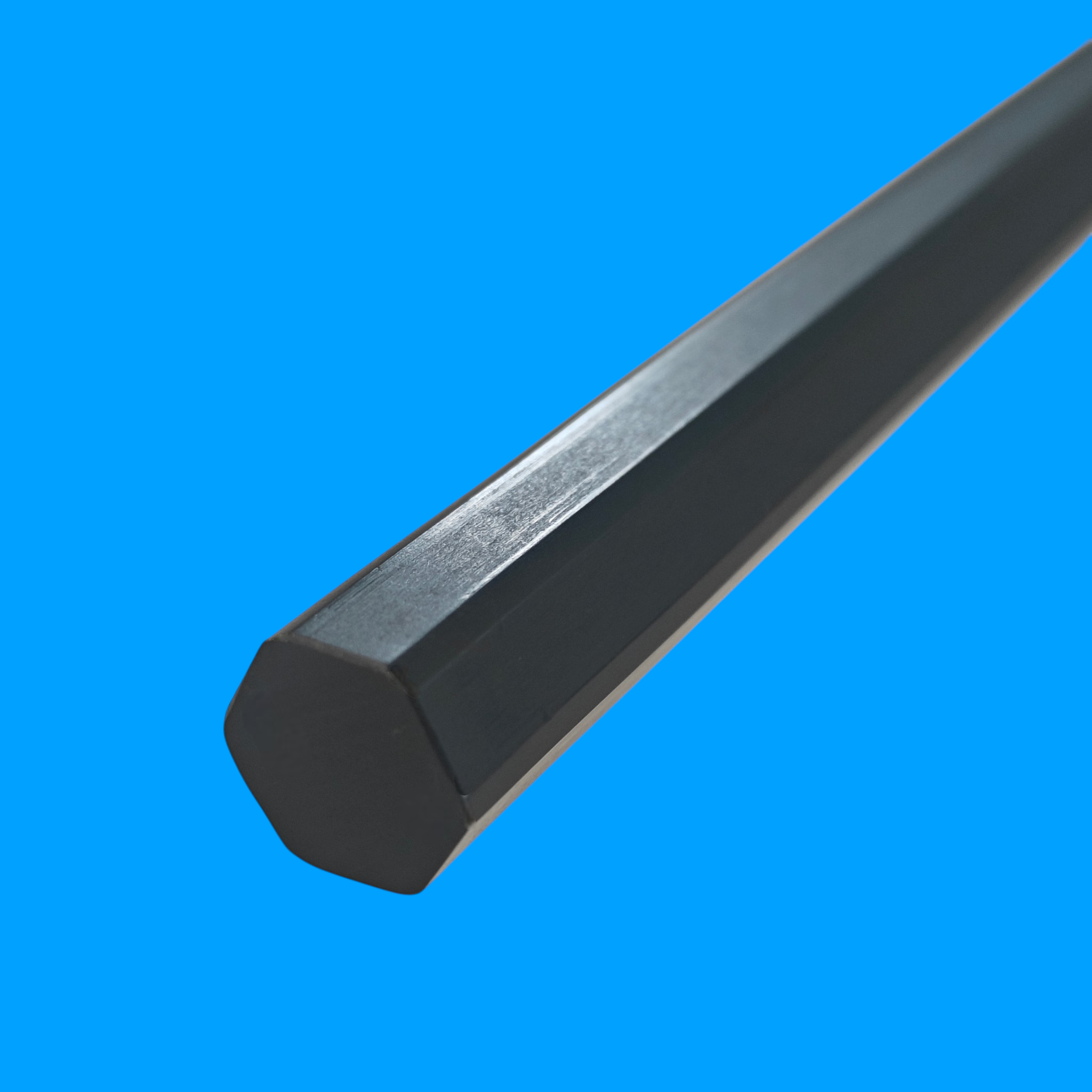

1/2" Hex Shafts (36")

Variant Material Center Hole Weight SKU CAD & Drawings
High Strength 7075 Aluminum None 12.43 oz (352 g) SR-AXLE-HEX-0.5in-36in-AL7075 Drawing
CAD
Lightweight with Spline 6061 Aluminum 15T SplineXS (tappable to 5/16"-18) 7.924 oz (225 g) SR-AXLE-HEXtoSPLINE-0.5in-36in-AL6061 Drawing
CAD

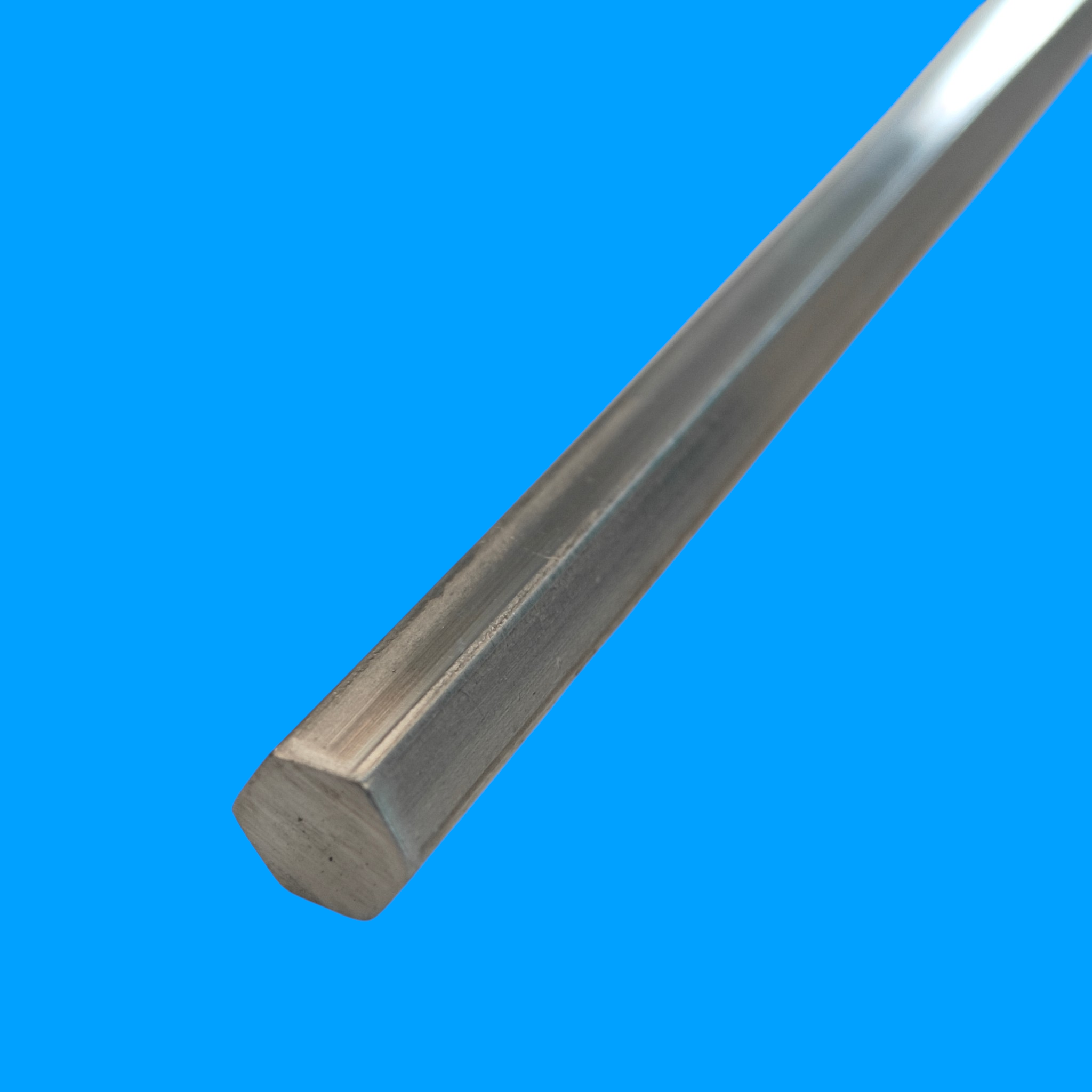

7mm Hex/8mm Round Shafts (450 mm length)

Variant Material Center Hole Weight SKU CAD & Drawings
High Strength 304 Stainless Steel None 5.234 oz (148 g) SR-AXLE-HEX-7mm-450mm-SS304 Drawing
CAD
Balanced Strength 7075 Aluminum None 1.838 oz (52 g) SR-AXLE-HEX-7mm-450mm-AL7075 Drawing
CAD
Lightweight 6061 Aluminum 3.3 mm (for M4 tap) 1.424 oz (40 g) SR-AXLE-HEXH-7mm-450mm-AL6061 Drawing
CAD

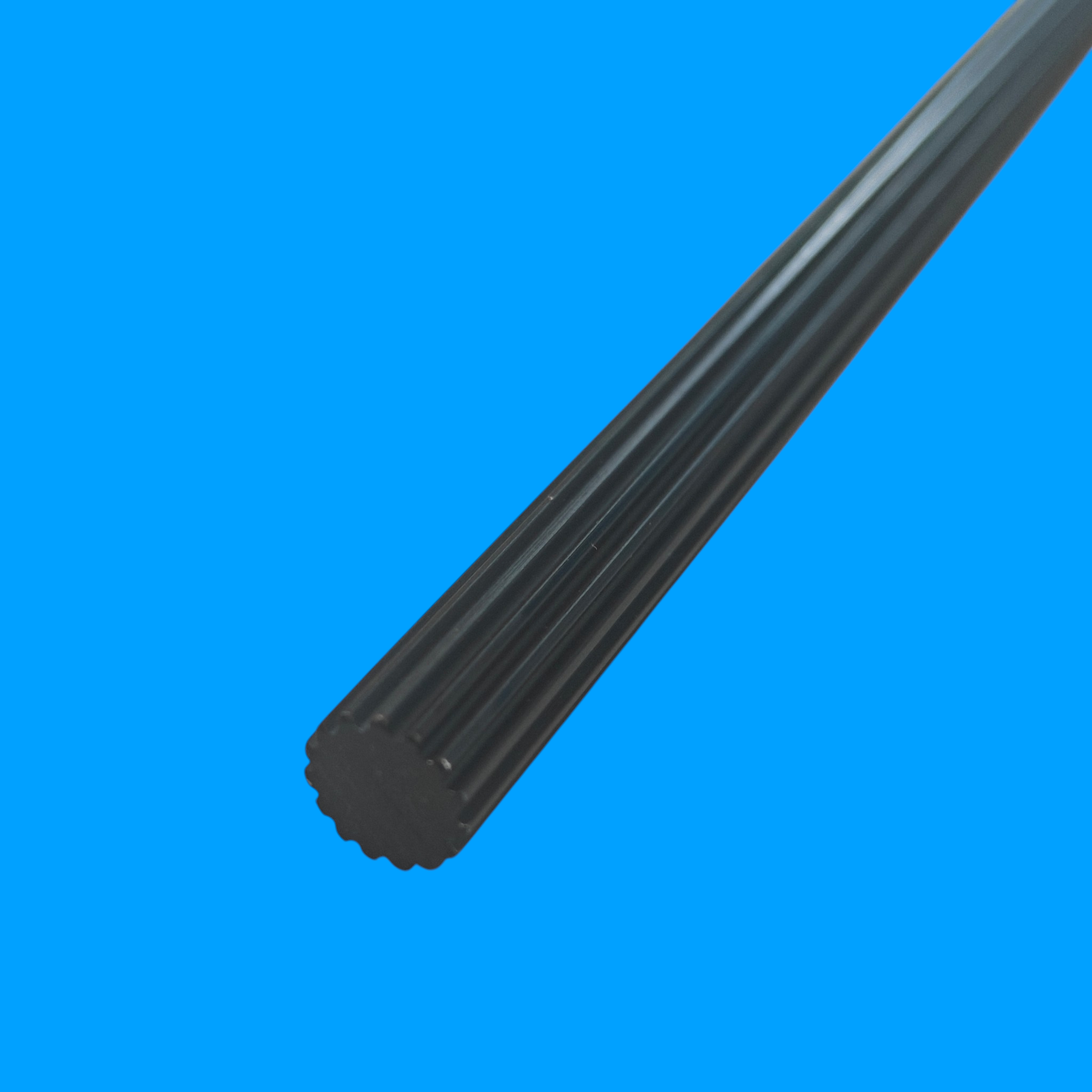

15T SplineXS Shafts (450 mm length)

Variant Material Center Hole Weight SKU CAD & Drawings
High Strength 304 Stainless Steel None 159 g (5.61 oz) SR-AXLE-SPLINE-15T-450mm-SS304 Drawing
CAD
Lightweight 7075 Aluminum None 55.9 g (1.97 oz) SR-AXLE-SPLINE-15T-450mm-AL7075 Drawing
CAD
