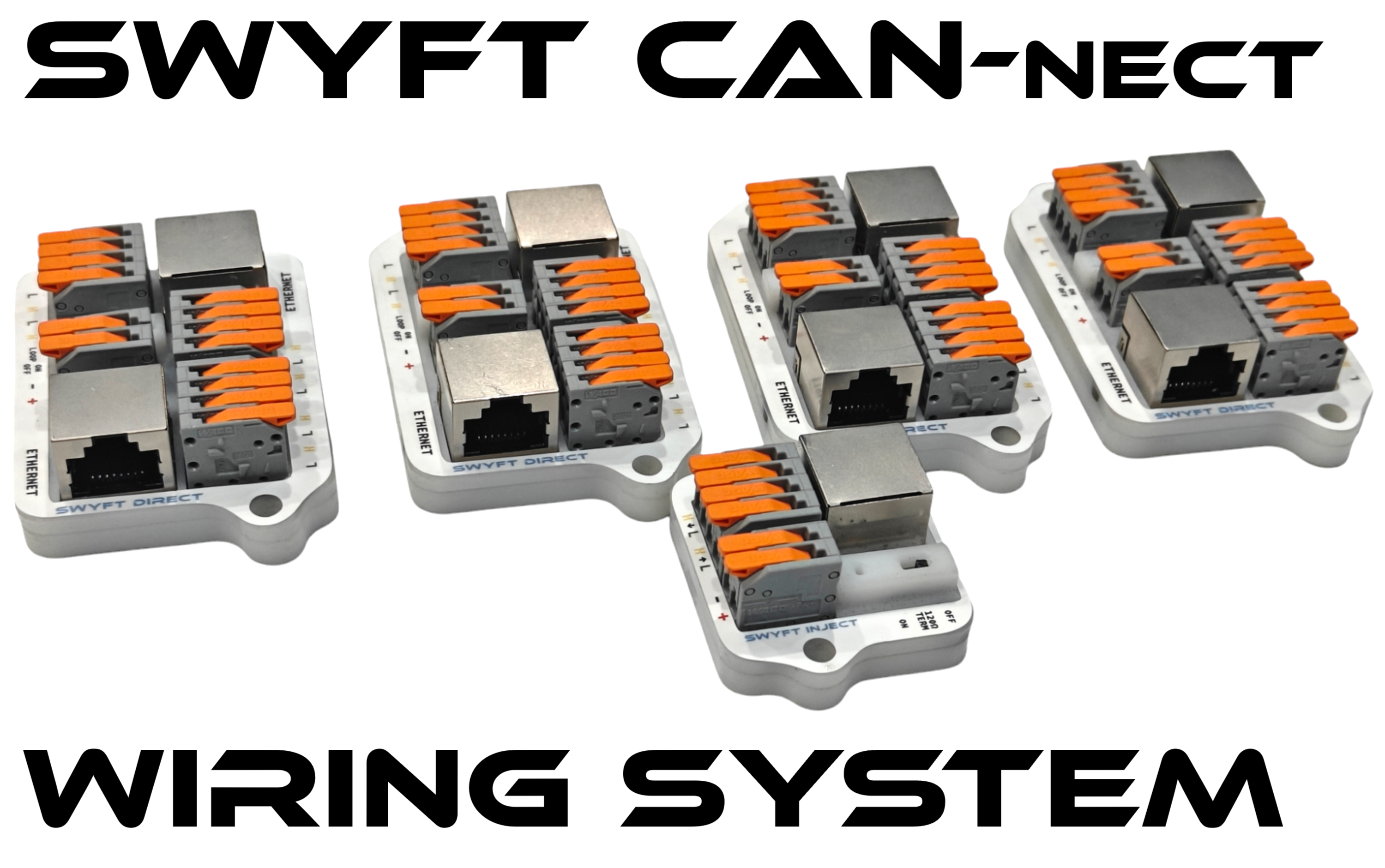

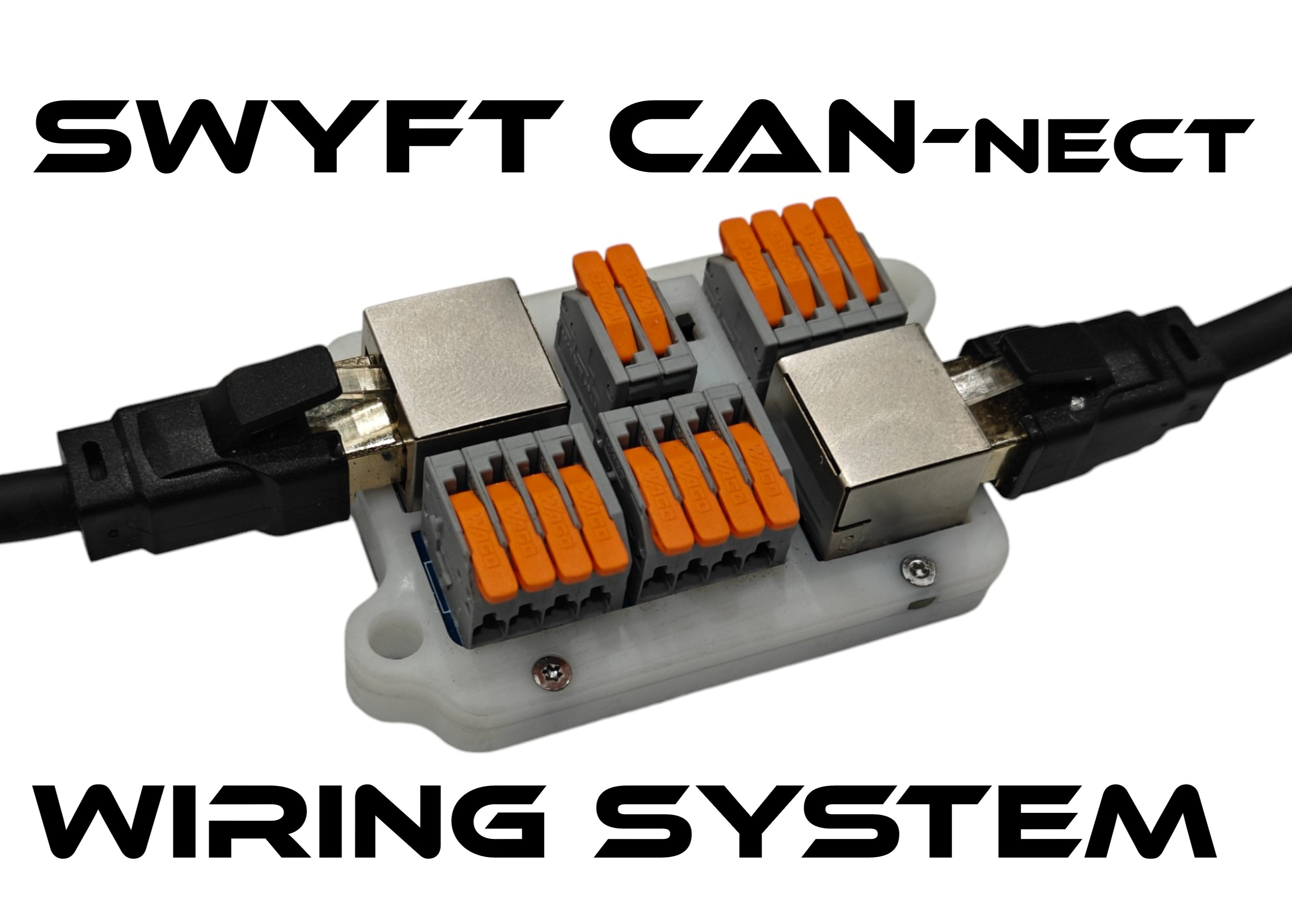

SWYFT CANnect Wiring System

Simplify Your Robot Wiring with the SWYFT CANnect Wiring System!

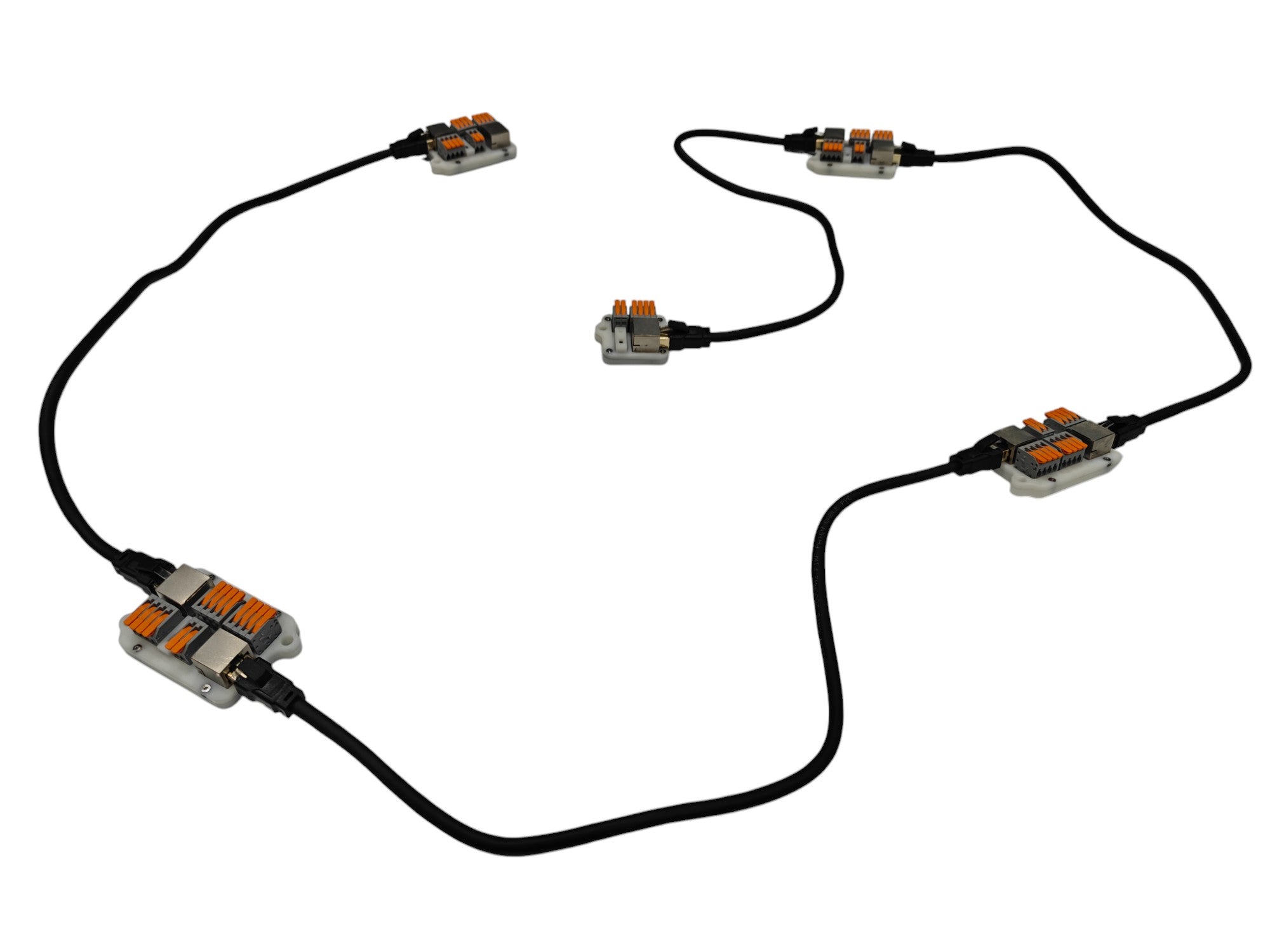

Tired of complex robot wiring? SWYFT CANnect revolutionizes your setup by allowing you to run CAN bus and 12V Power over standard Ethernet cables. This drastically reduces wiring complexity, especially for Swerve drivetrains, making your robot cleaner and more reliable. Plus, with built-in redundancy, you can run dual CAN wires to your motors and encoders, ensuring uninterrupted operation even if a wire pair is completely cut!

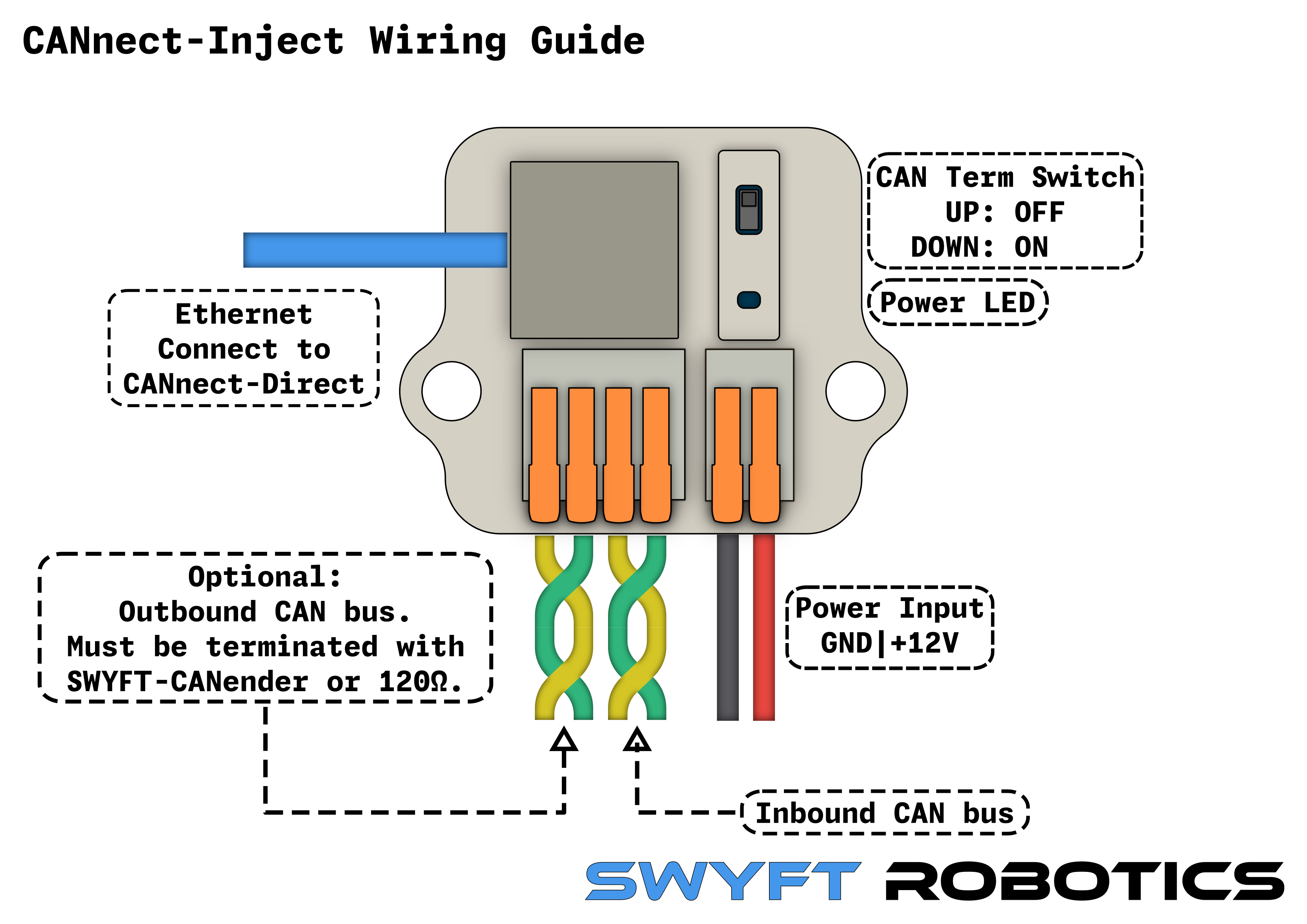

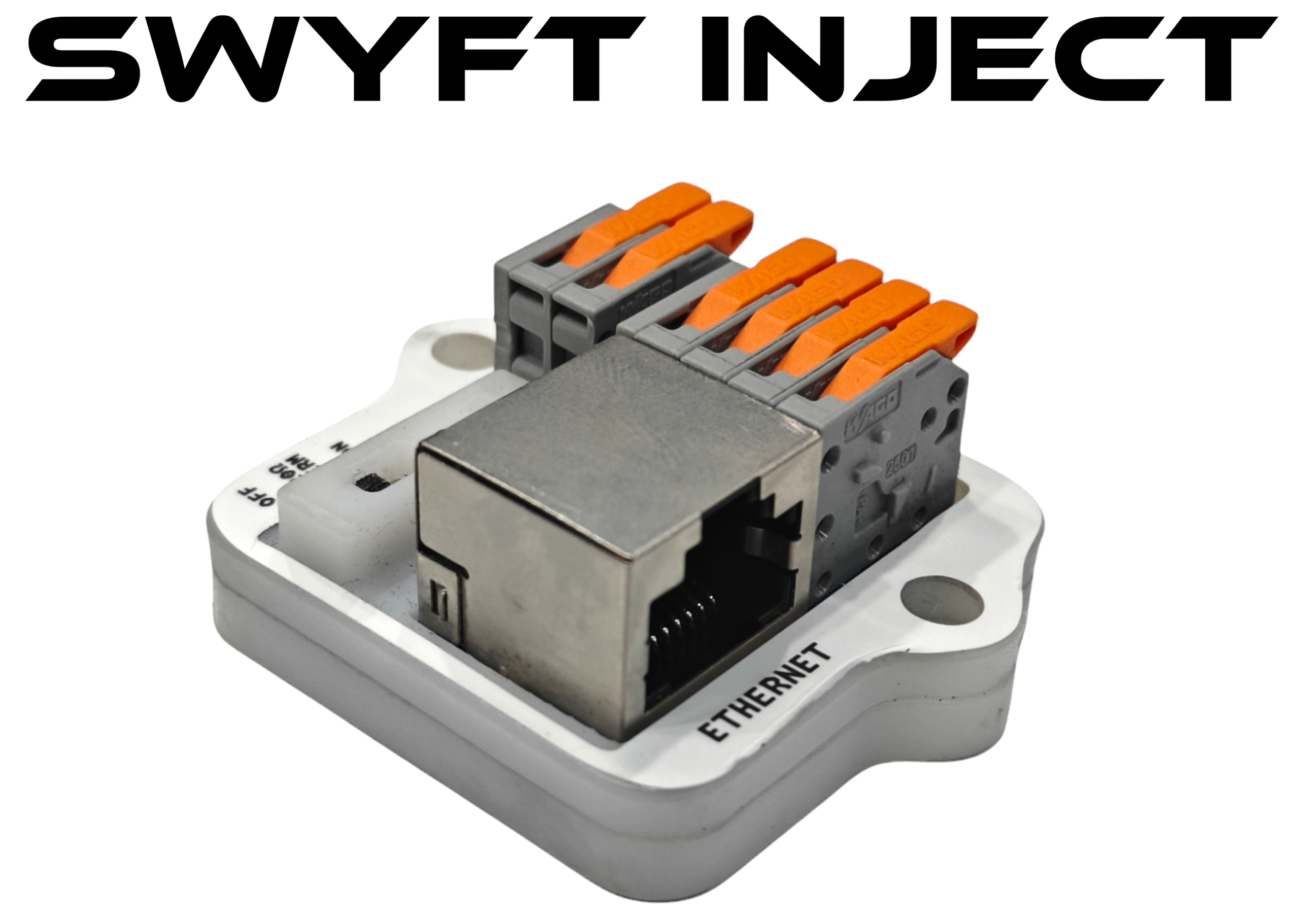

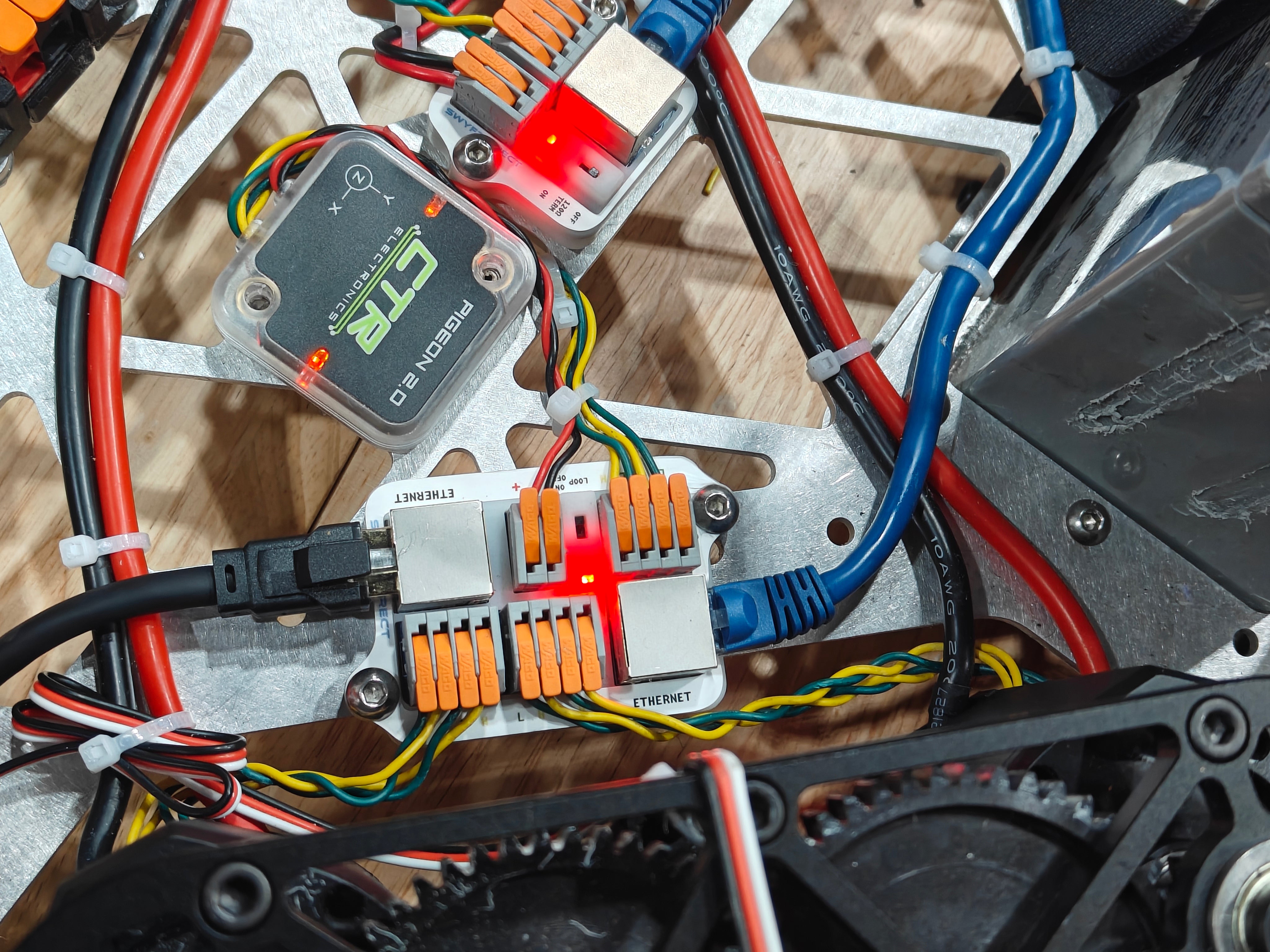

• SWYFT Inject: Connects to your CAN bus and Power

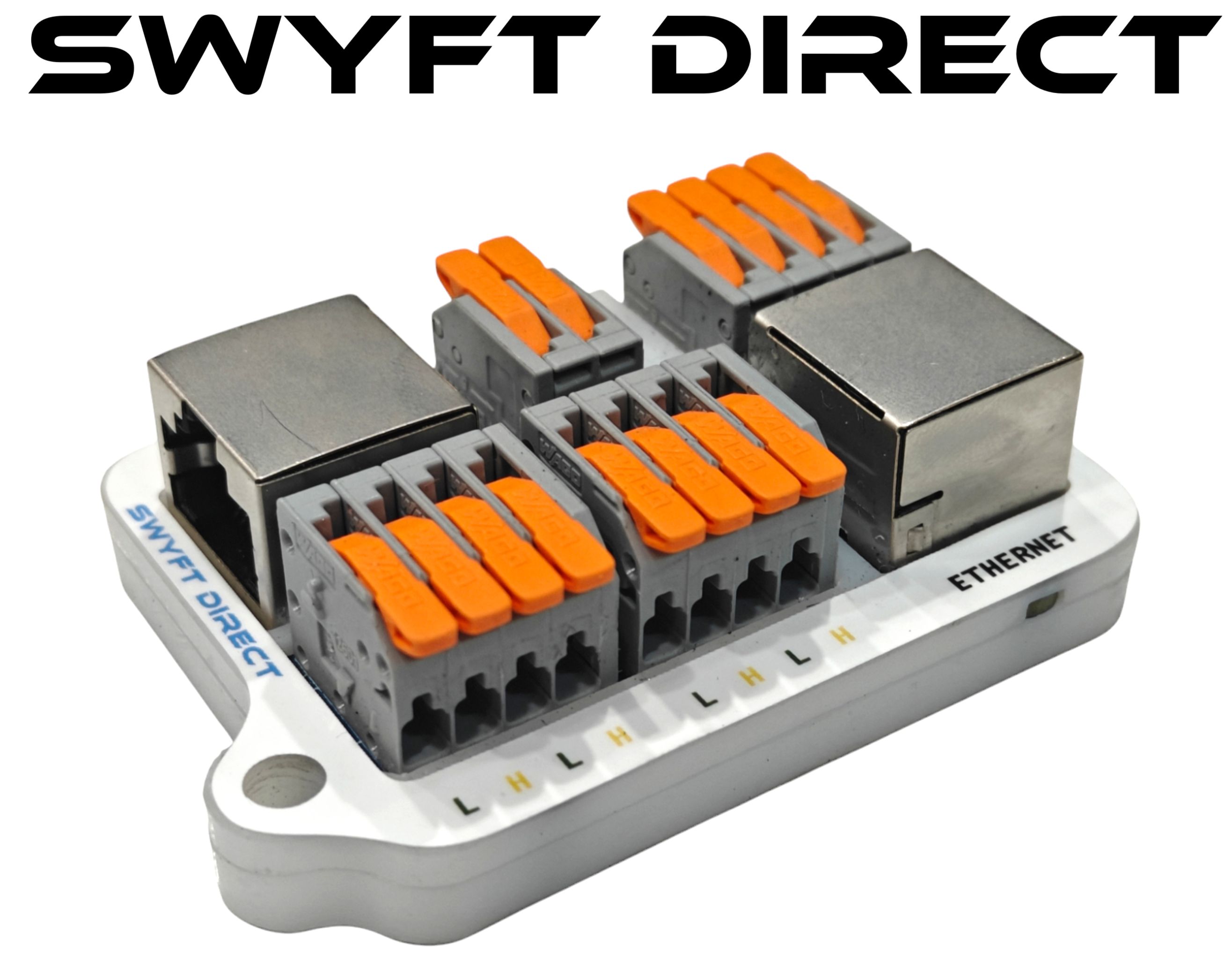

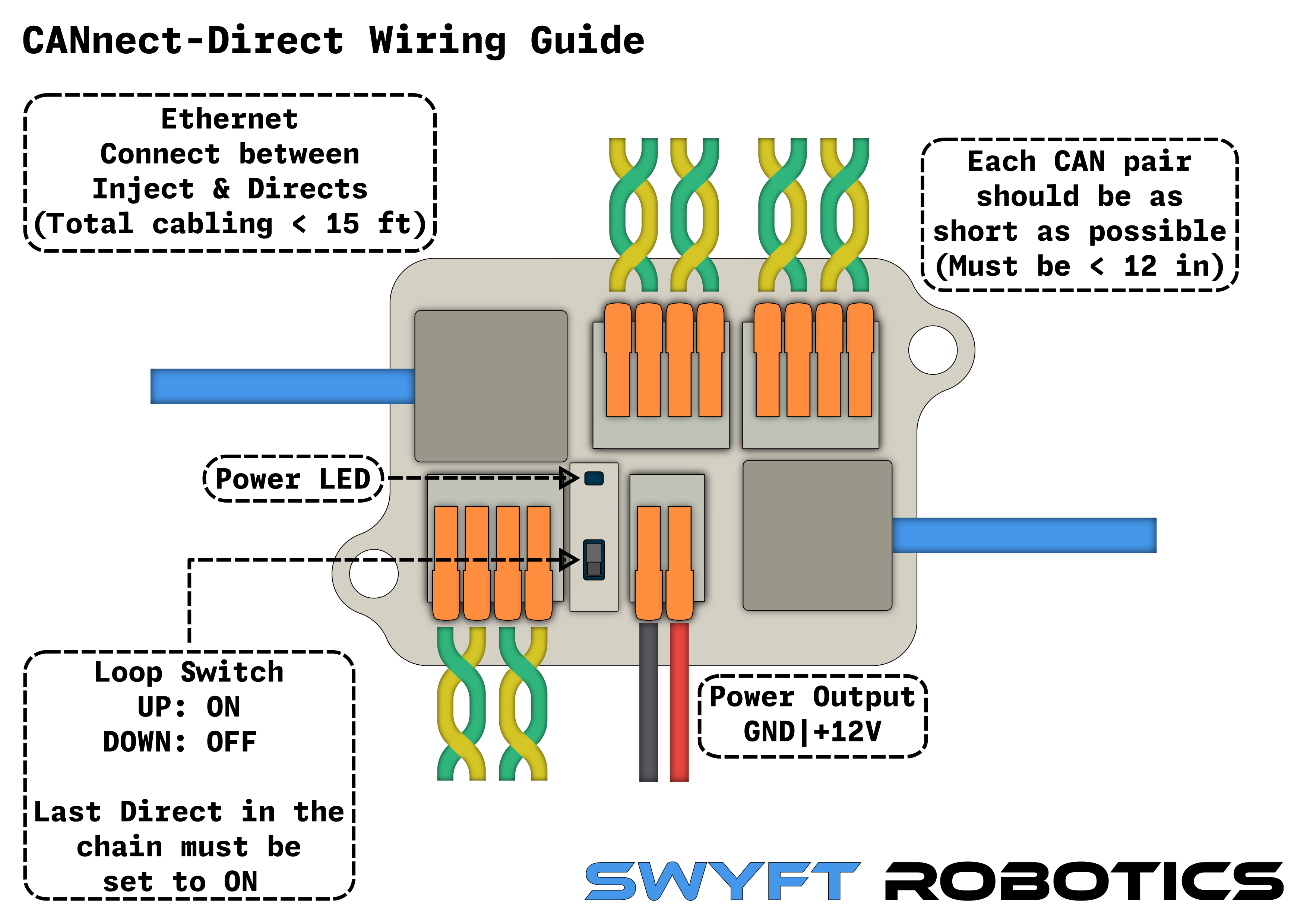

• SWYFT Direct: Connects to your individual swerve modules or other devices requiring CAN and 12V sensor power.

Key Features:

• Reduced Wiring: Simplify your robot's wiring with Ethernet cabling for both CAN and power.
• Easy Connections: Wago Lever Connectors make wiring CAN and 12V power a breeze.
• Power Indicator: Integrated power LED for quick visual status confirmation on both modules.
• CAN Termination: CAN termination switch on each SWYFT Inject module
• Durable Design: Housed in a robust Resin SLA LEDO 6060 case.
• Flexible Mounting: 10-32 mounting holes for easy integration with standard FRC 0.5" grid patterns.
• Versatile Applications: Ideal for Swerve drivetrains, but applicable anywhere you need CAN and power.
• CAN FD and CAN 2.0 Compatible: Works seamlessly with both CAN FD and CAN 2.0 protocols for maximum flexibility.

Available Options:

• Individual Modules: Purchase SWYFT Inject and SWYFT Direct modules separately for custom configurations.

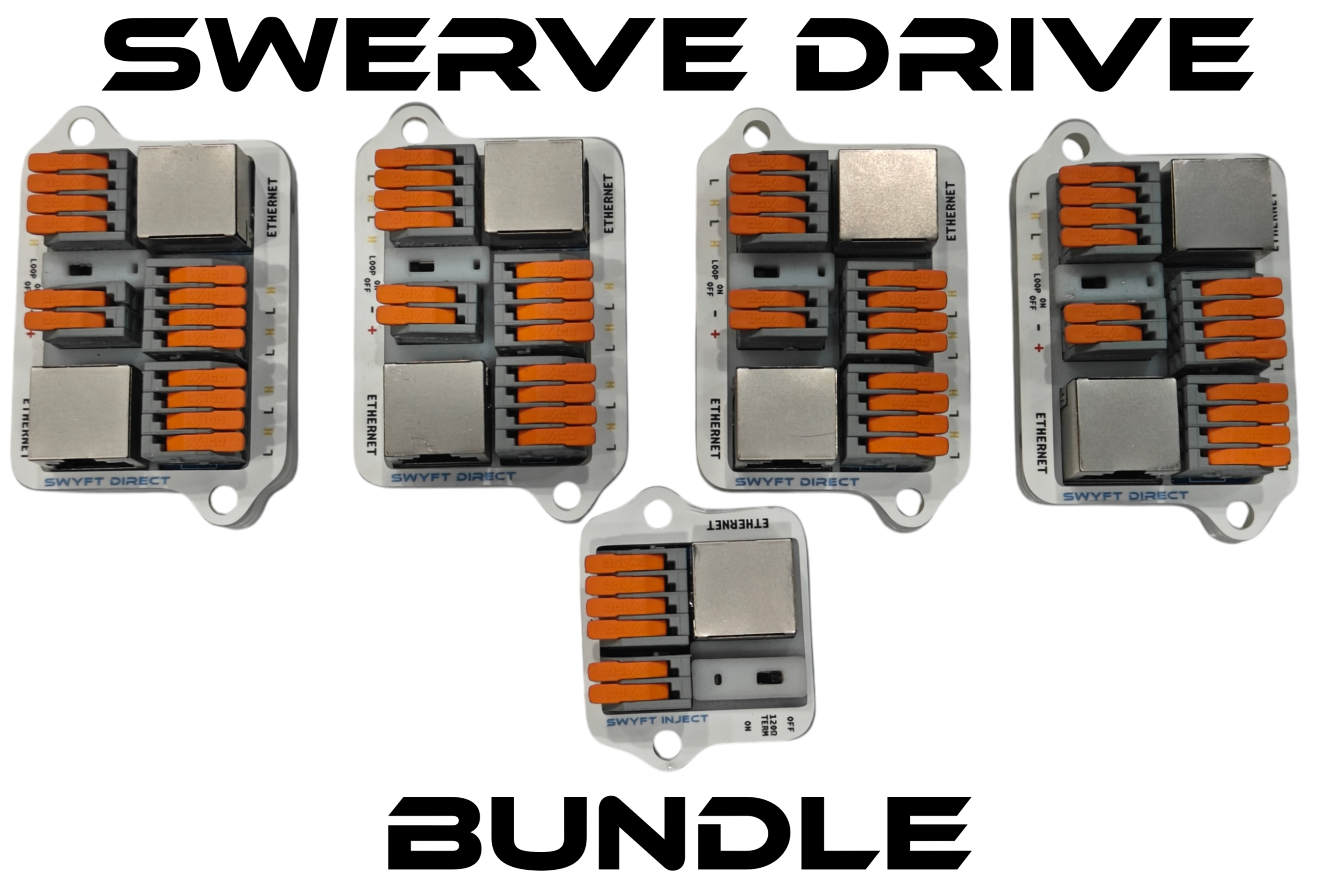

• Swerve Drive Bundle: Includes 4 Direct modules and 1 Inject module – perfect for simplifying your Swerve drivetrain wiring

Enhance your robot wiring experience with SWYFT CANnect! Order yours today and experience the difference!

Note: SWYFT Inject and SWYFT Direct should not be used for any application over 1.5 amp (Do not use this to power a motor)

Important: We recommend using wires & ethernet cables that are high quality and 22AWG, if smaller wire gauge (larger # AWG) wire is used, be sure to check our documentation and the FRC game manual for more information on how to do so legally.

DOCS
Direct CAD
Direct Drawing
Inject CAD
Inject Drawing
