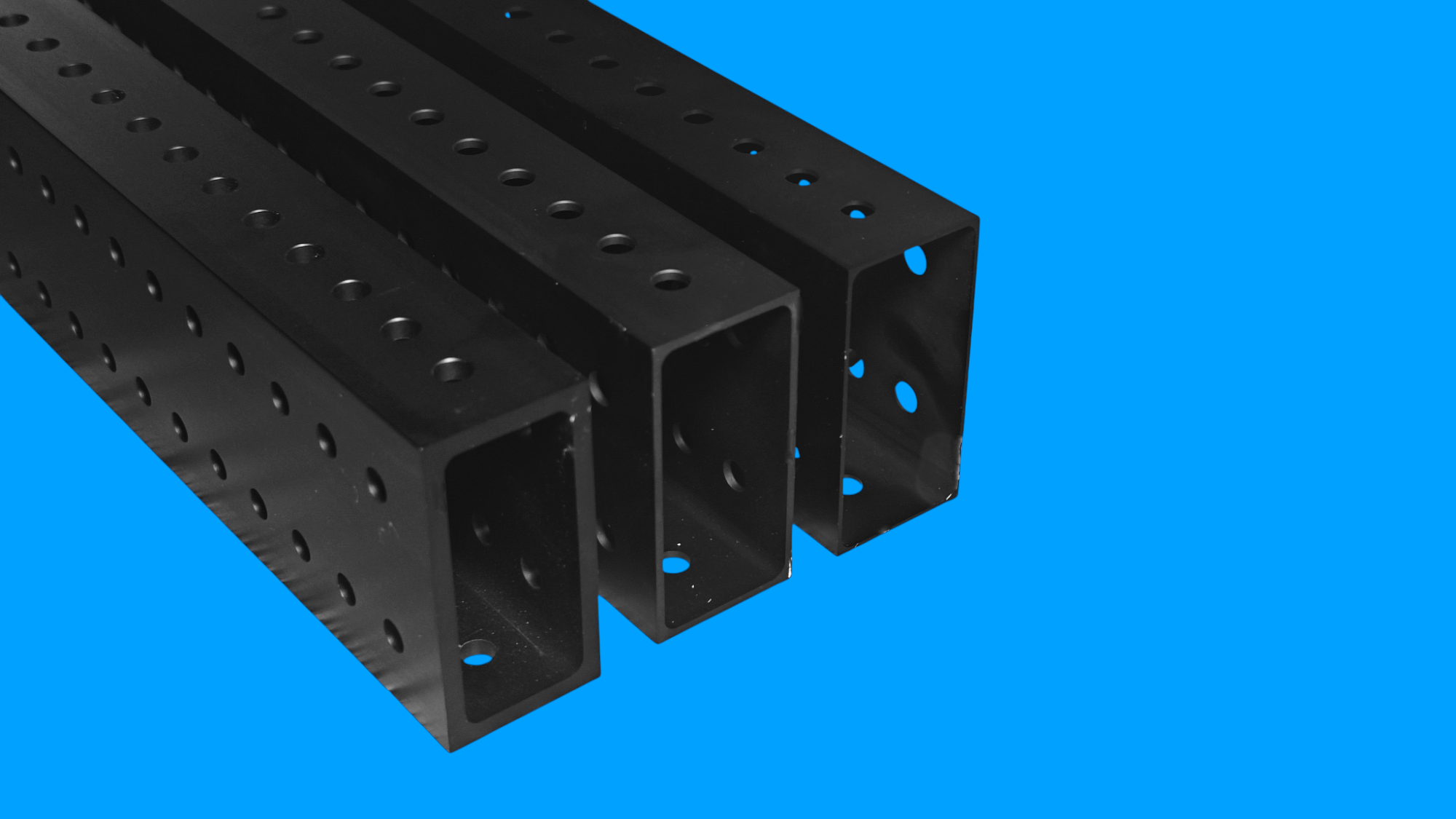

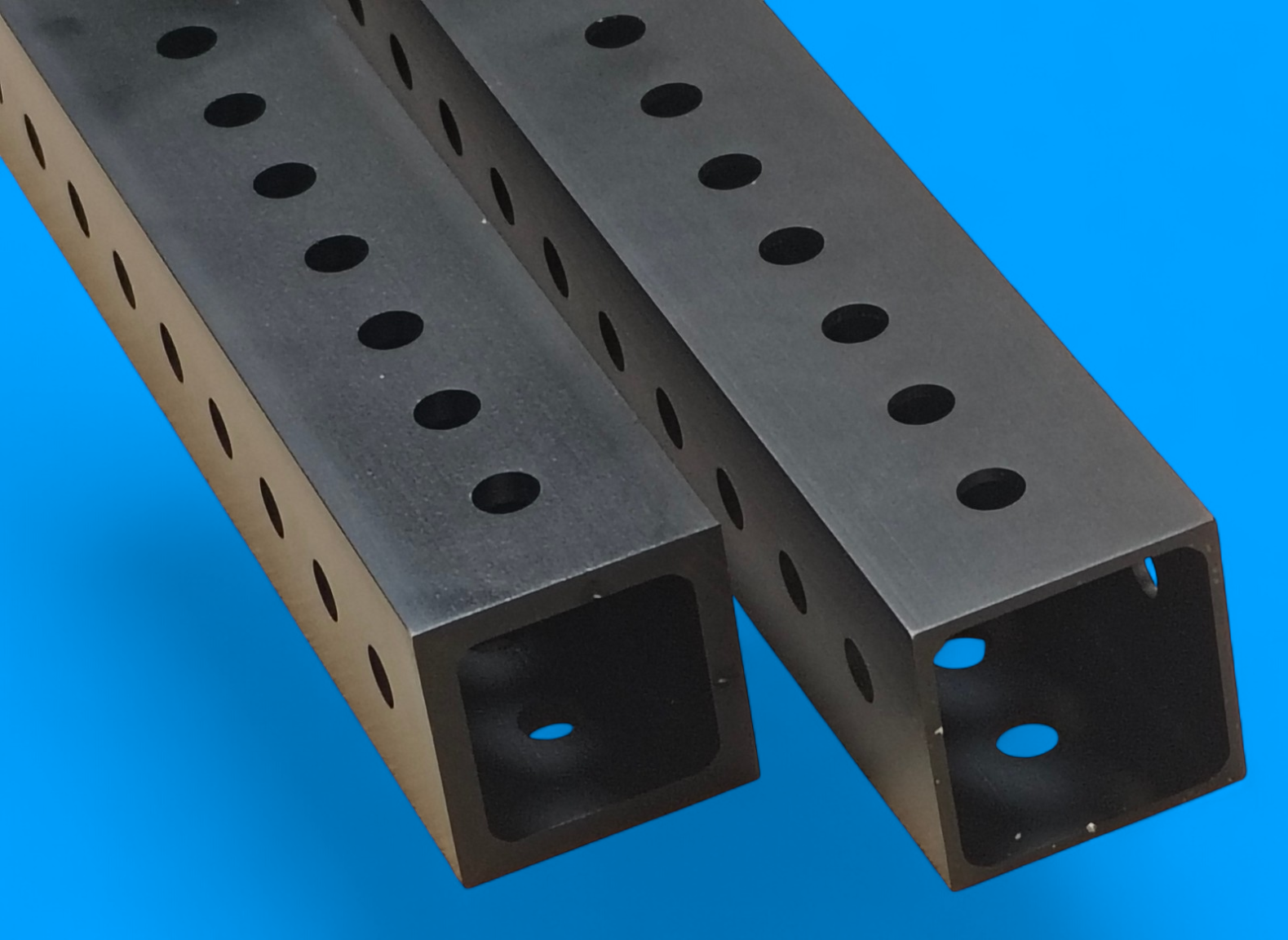

SWYFT Tube

Elevate your FRC robot's structure with SWYFT Tube, premium 2" x 1" Aluminum 6061 tubing designed for strength, versatility, and ease of integration in competitive robotics. Engineered by SWYFT Robotics, this tubing offers customizable wall thicknesses and hole patterns, making it ideal for chassis, arms, and mechanisms that demand durability and precision.

Key Features

• Multiple Wall Thicknesses: Available in 1/8", 1/16", and 0.035" options to balance strength and weight for your specific design needs.

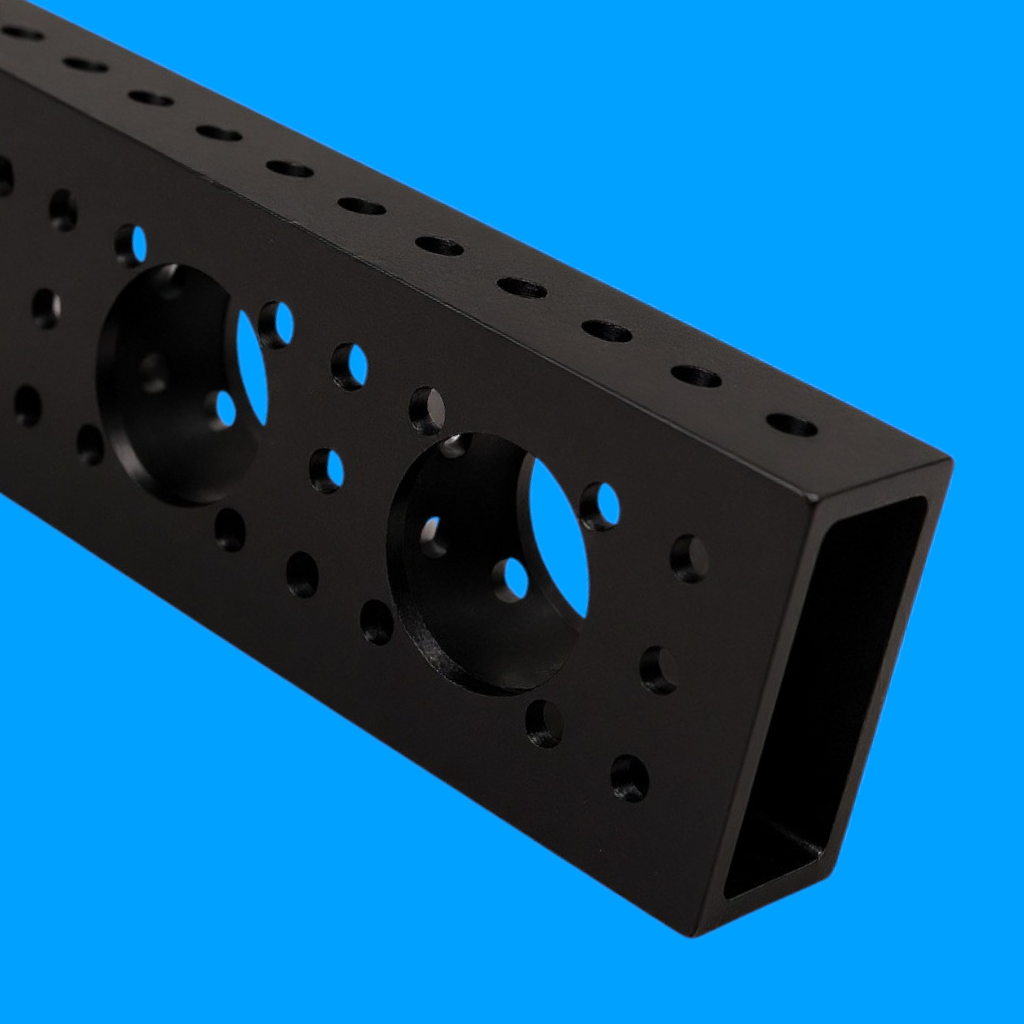

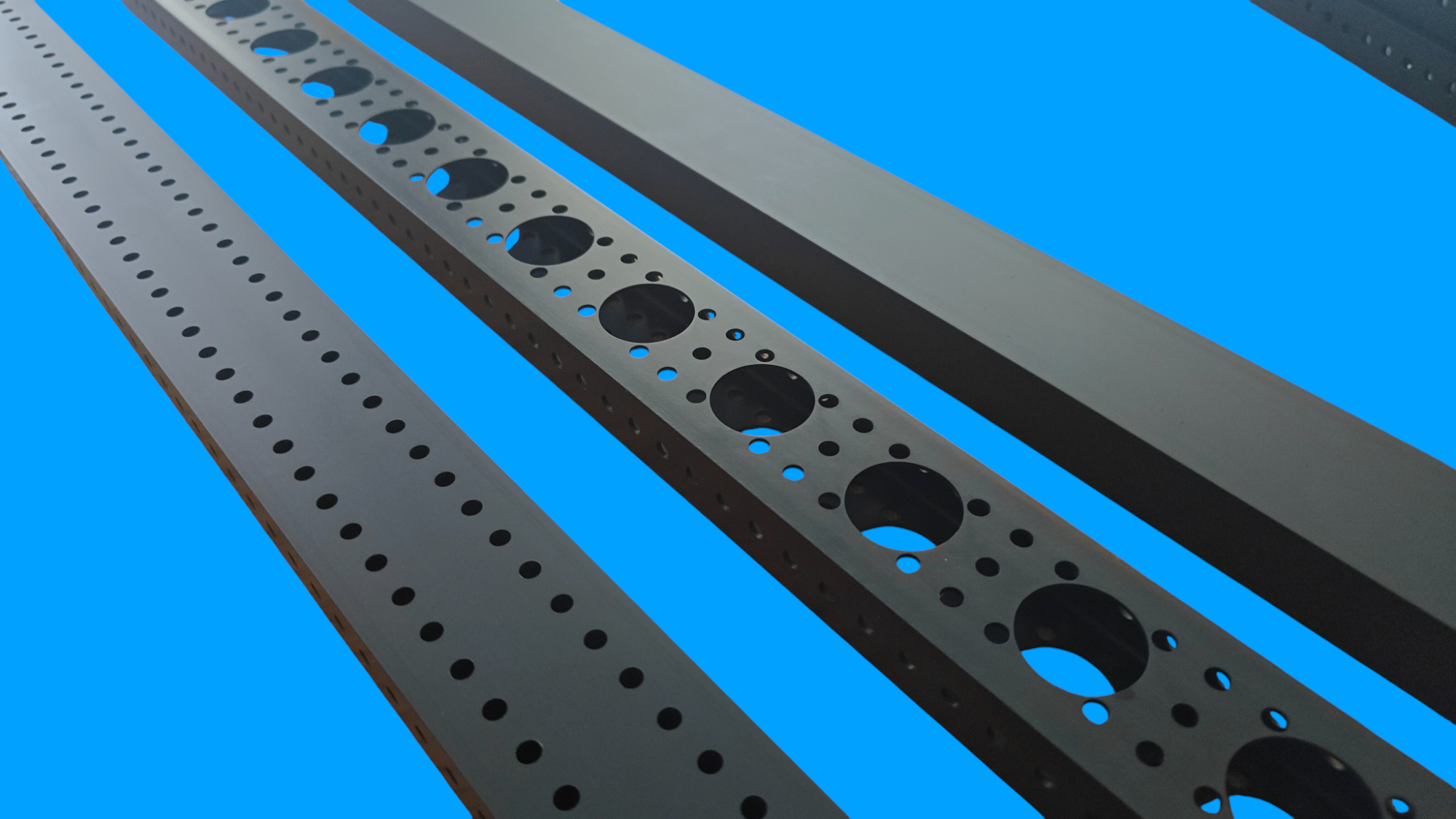

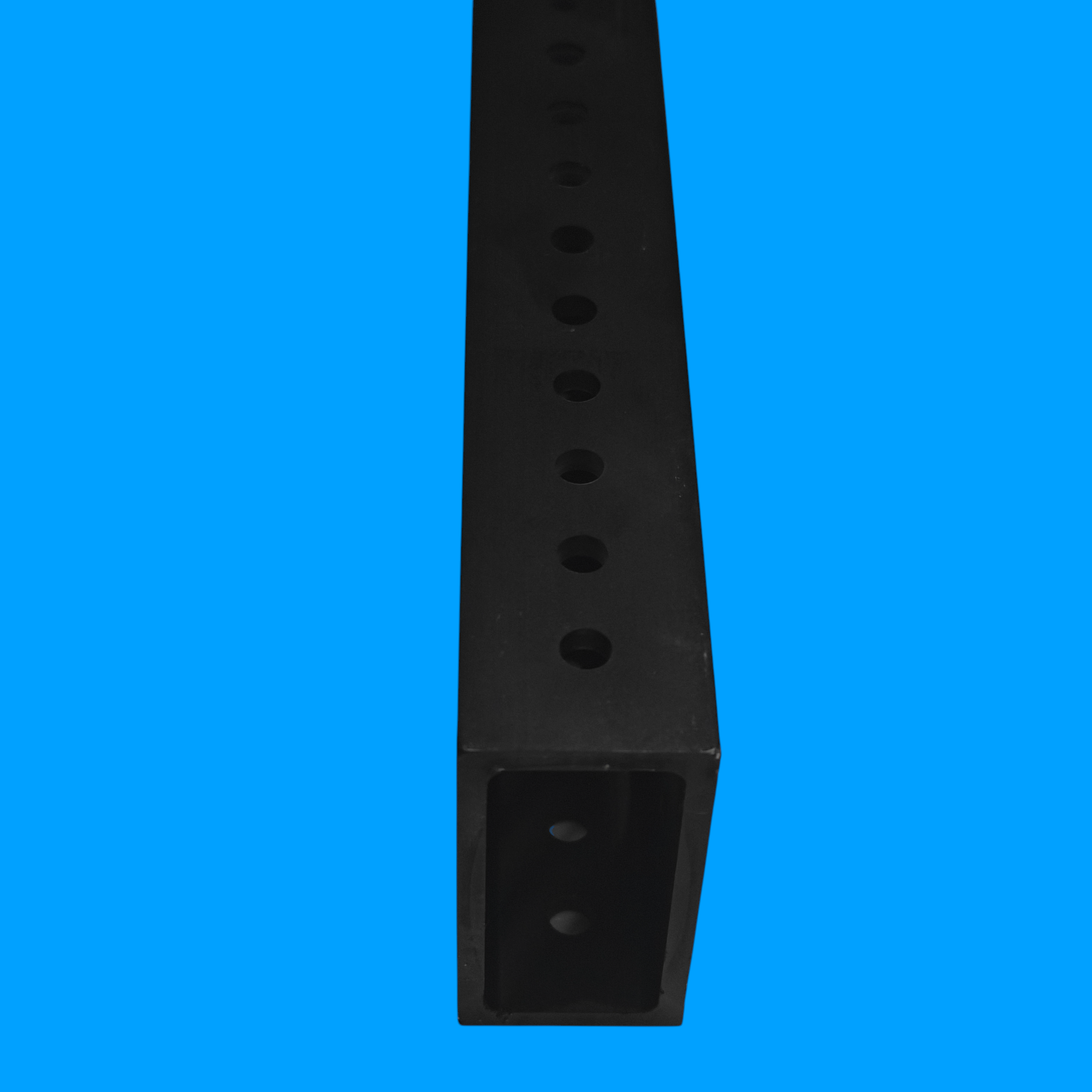

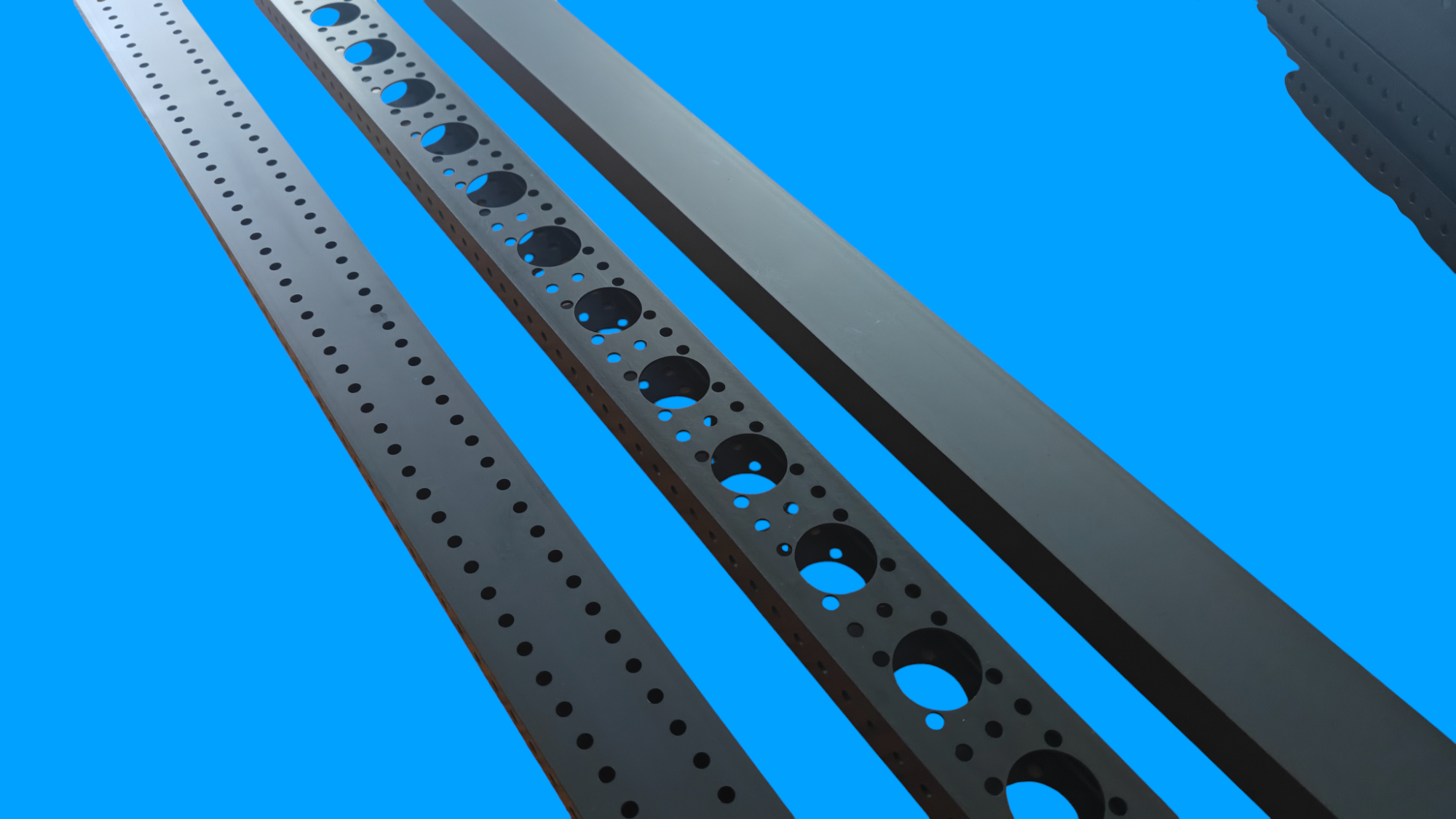

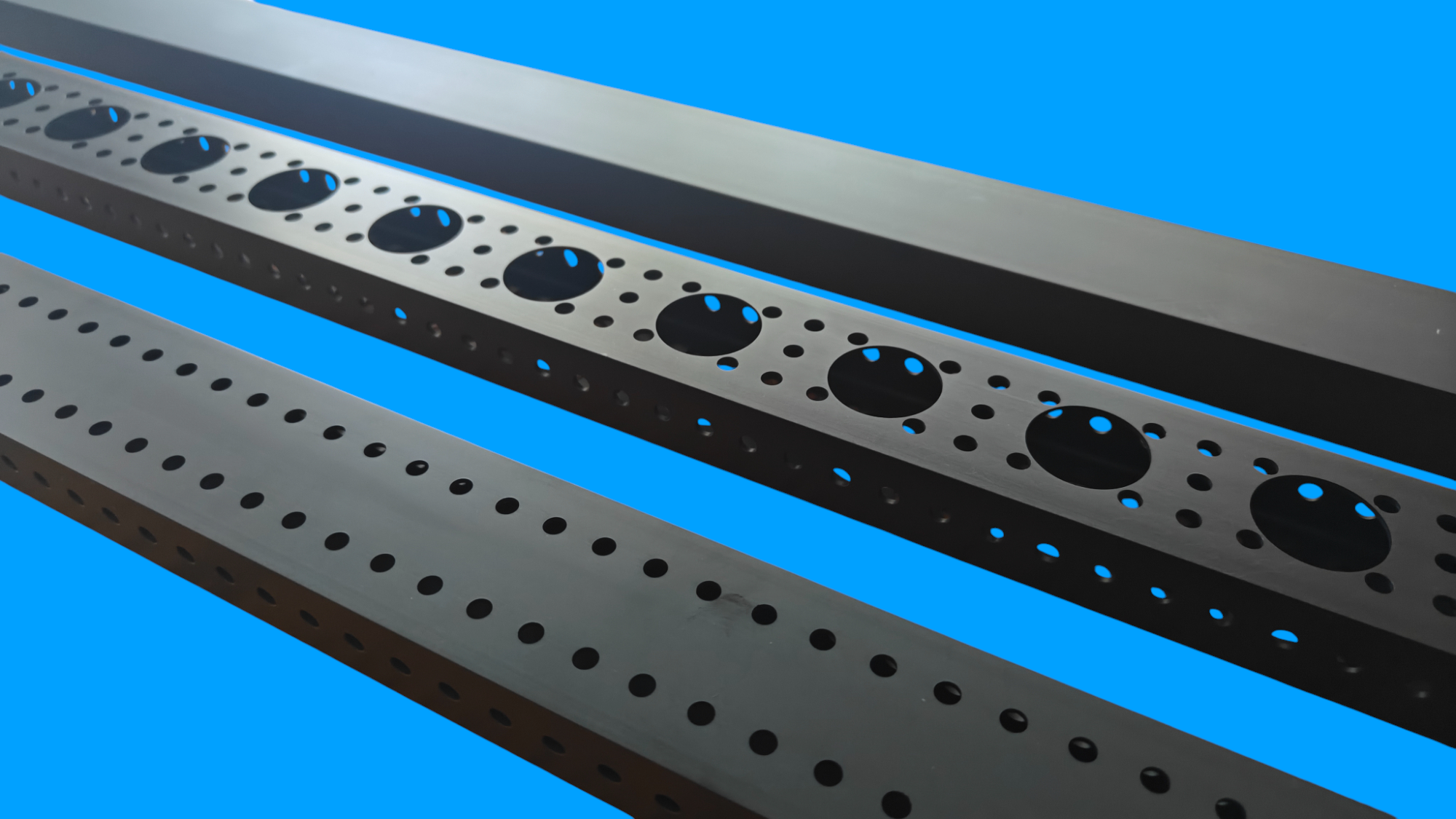

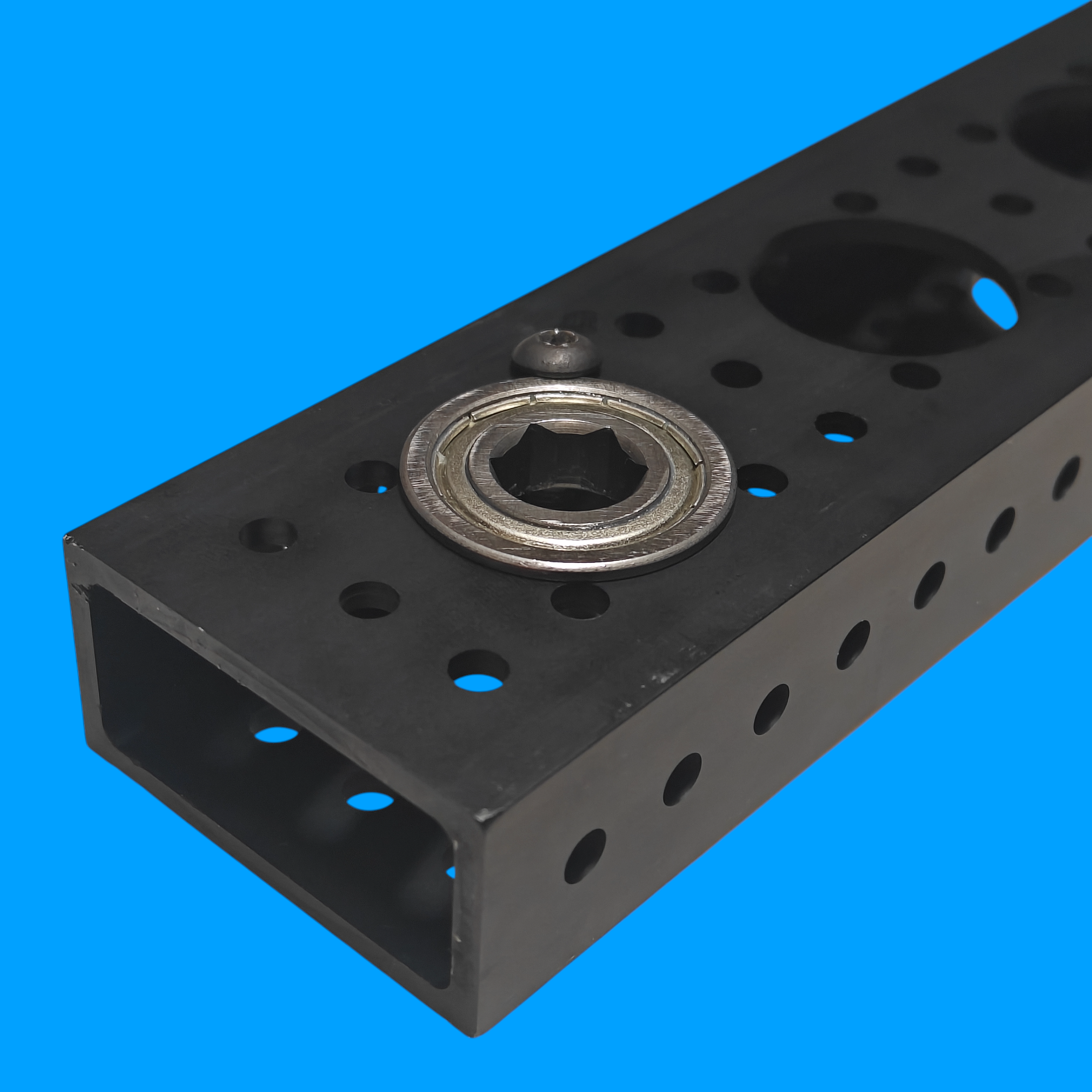

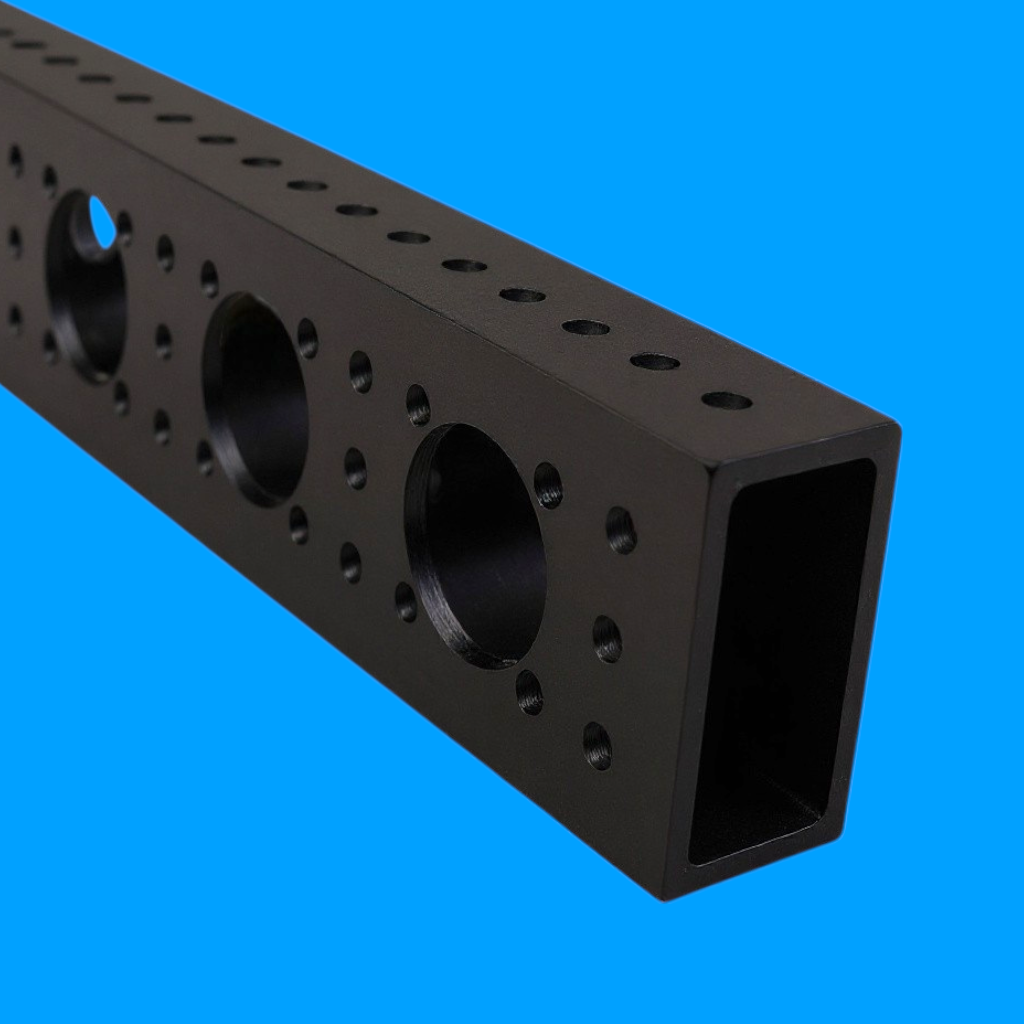

• Varied Hole Patterns: Choose from plain (no holes) for custom drilling, grid pattern (10-32 holes spaced at 0.5" intervals), or grid+bearing pattern (10-32 holes plus 1.125" bearing holes for common 1/2" hex bearings).
• CNC Milled Holes: Holes are CNC milled (not punched) for amazing tolerances on bearing and screw holes, ensuring precise fits and alignments.
• Black Anodized Finish: Provides a sleek and professional aesthetic.
• High-Quality Material: Constructed from Aluminum 6061 for excellent strength-to-weight ratio.
• Internal Fillet Design: Small fillets on the internal tube walls enhance structural integrity and increase overall tube strength.

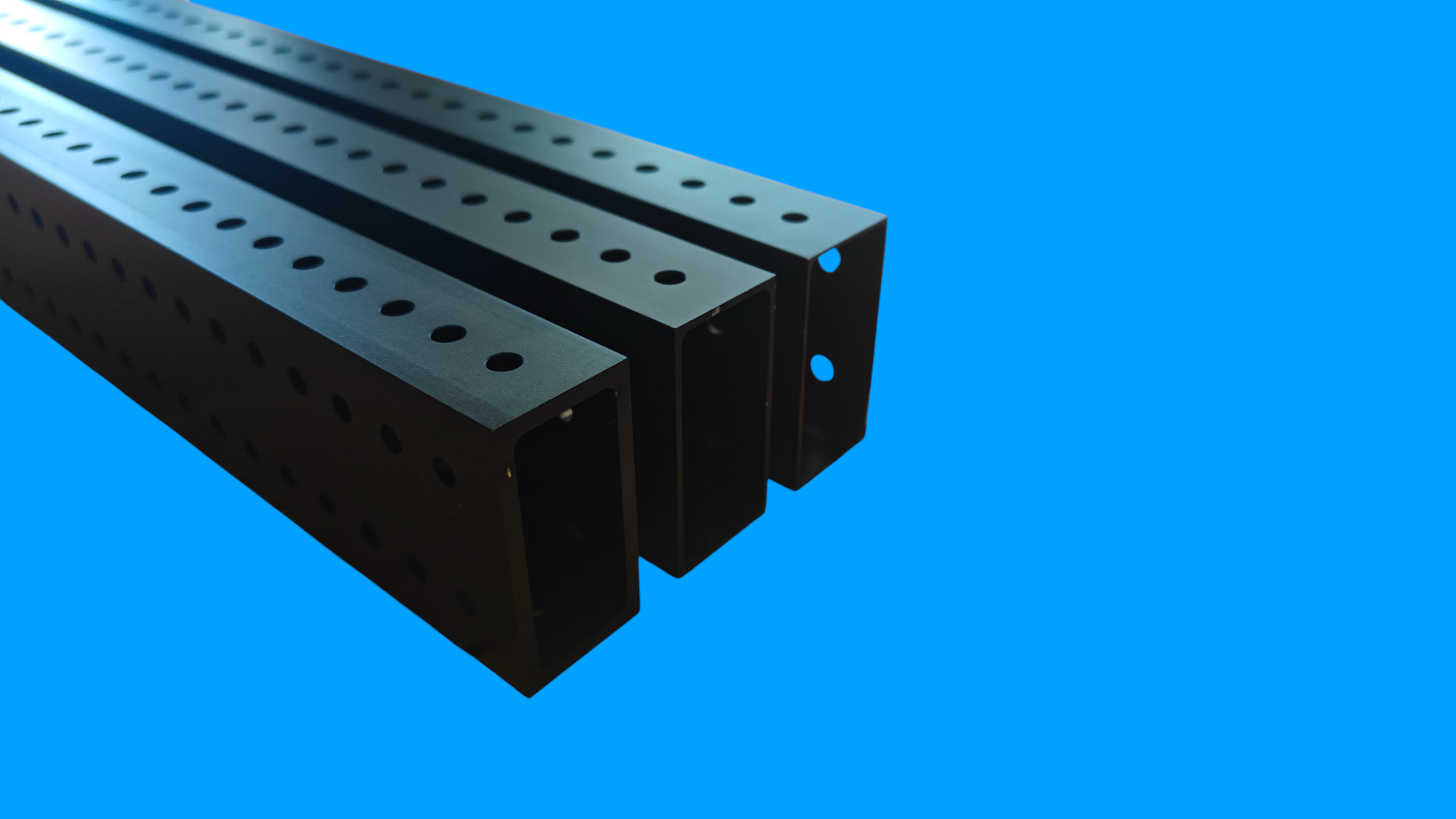

• Versatile Sizing: Standard 2" x 1" rectangular profile suitable for a wide range of FRC applications.

• Works seamlessly with SWYFT Tube Inserts, SWYFT Tube Connectors, and other structural components.

Specifications

• Material: Aluminum 6061, Black Anodized

• Length: 47"
• Dimensions: 2" x 1" rectangular tubing
• Wall Thicknesses: 1/8", 1/16", 0.035"
• Hole Patterns: Plain (no holes), Grid (10-32 holes at 0.5" spacing), Grid+Bearing (10-32 holes + 1.125" bearing holes)

• Hole Fabrication: CNC milled for superior tolerances
• Internal Features: Small fillets on internal walls for added strength
