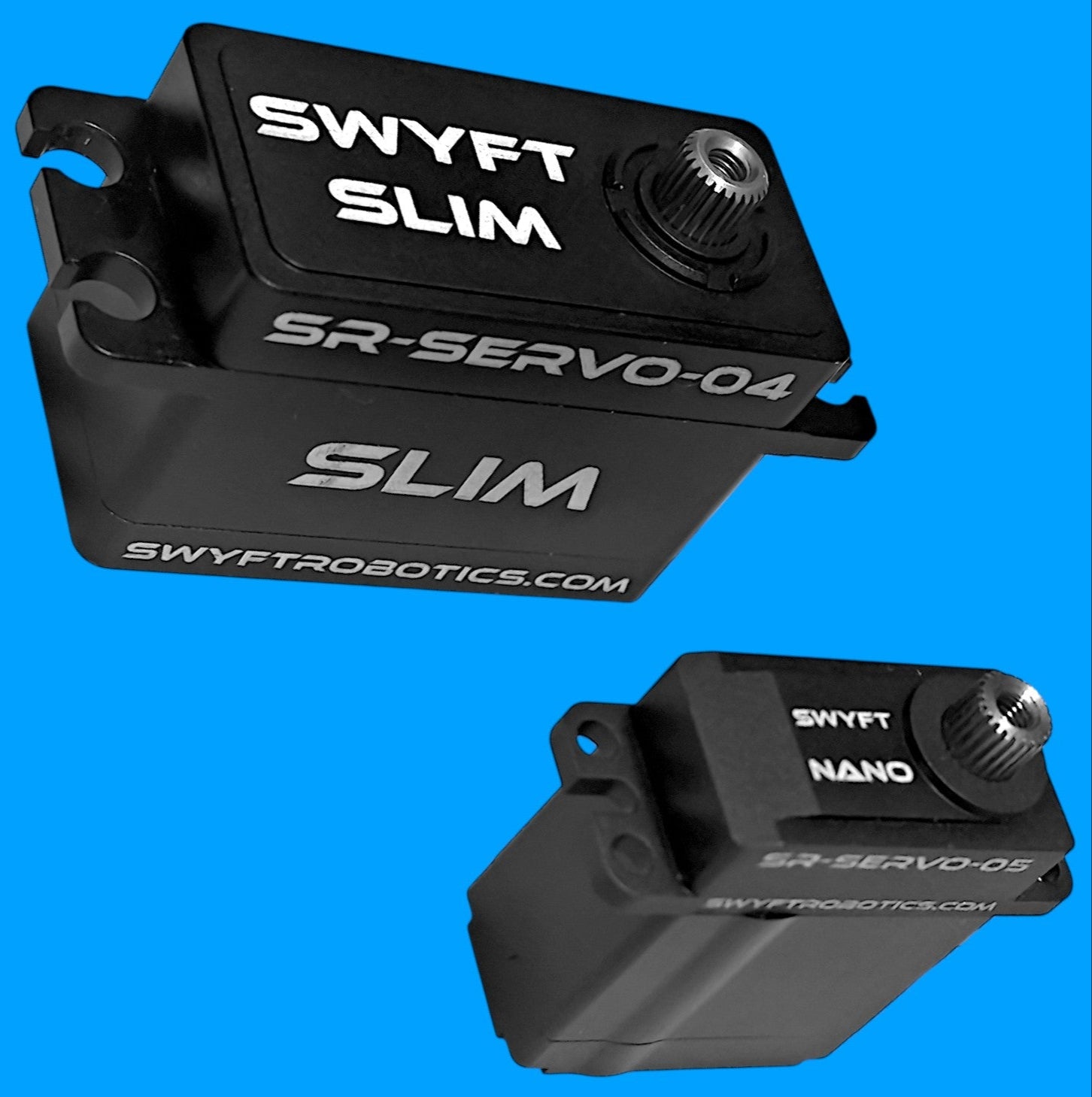

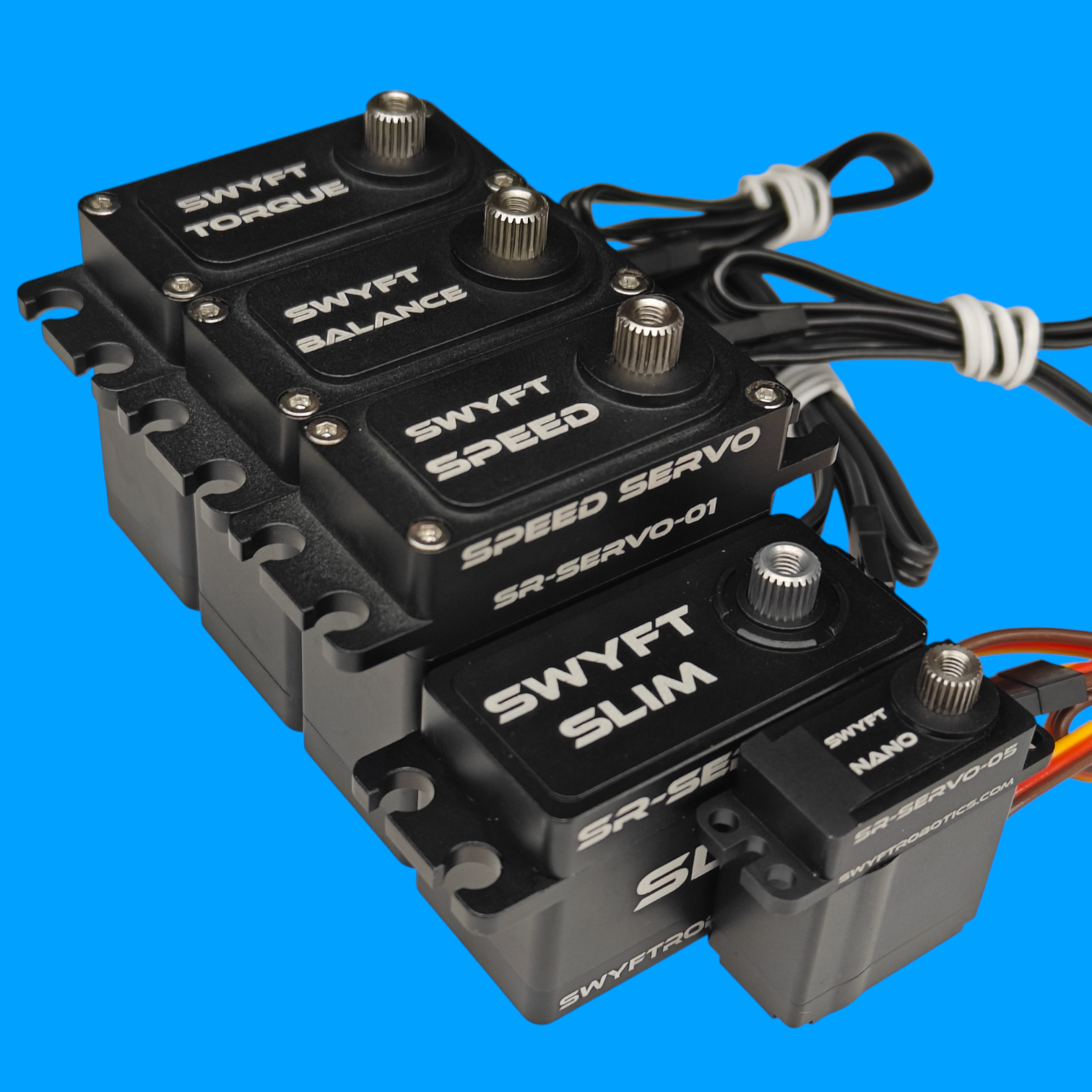

SWYFT Mini Servos

Expanding our acclaimed SWYFT Servo line, we're thrilled to introduce the SWYFT Slim and SWYFT Nano – two new models engineered to bring powerful, precise, and highly integrated motion control to applications where space and weight are critical.

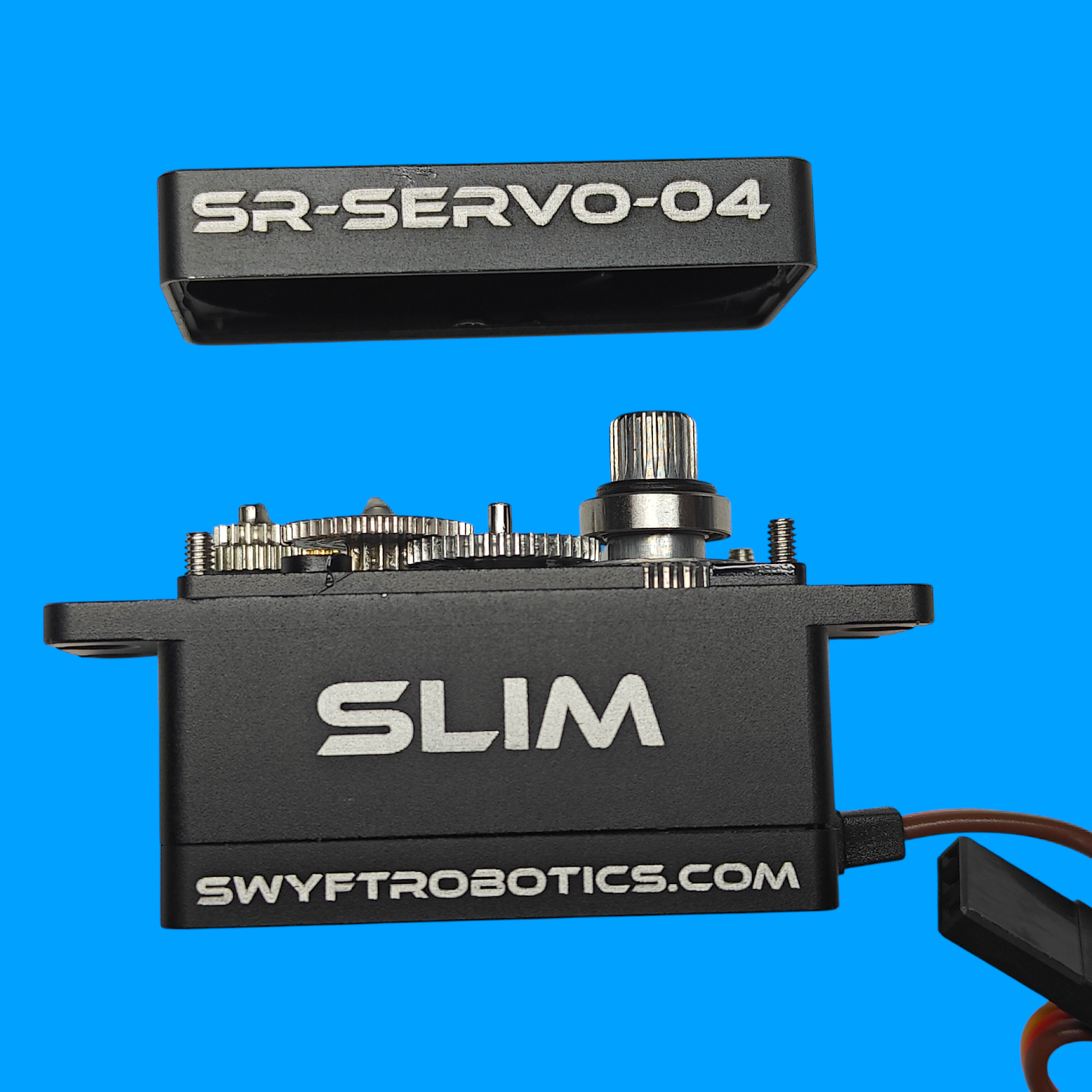

SWYFT Slim Servo: Compact Powerhouse

Key Features:

• Ultra-Compact Height: 14.4mm shorter than our standard SWYFT Servos, the SWYFT Slim is ideal for applications with tight vertical constraints.
• Lightweight Design: Weighing a mere 60g, it minimizes impact on your robot's overall mass.
• Efficient Power: Operates at 4.8W, delivering excellent power-to-weight performance.
• Standard H25T Spline (Plastic Servo Horns Included)

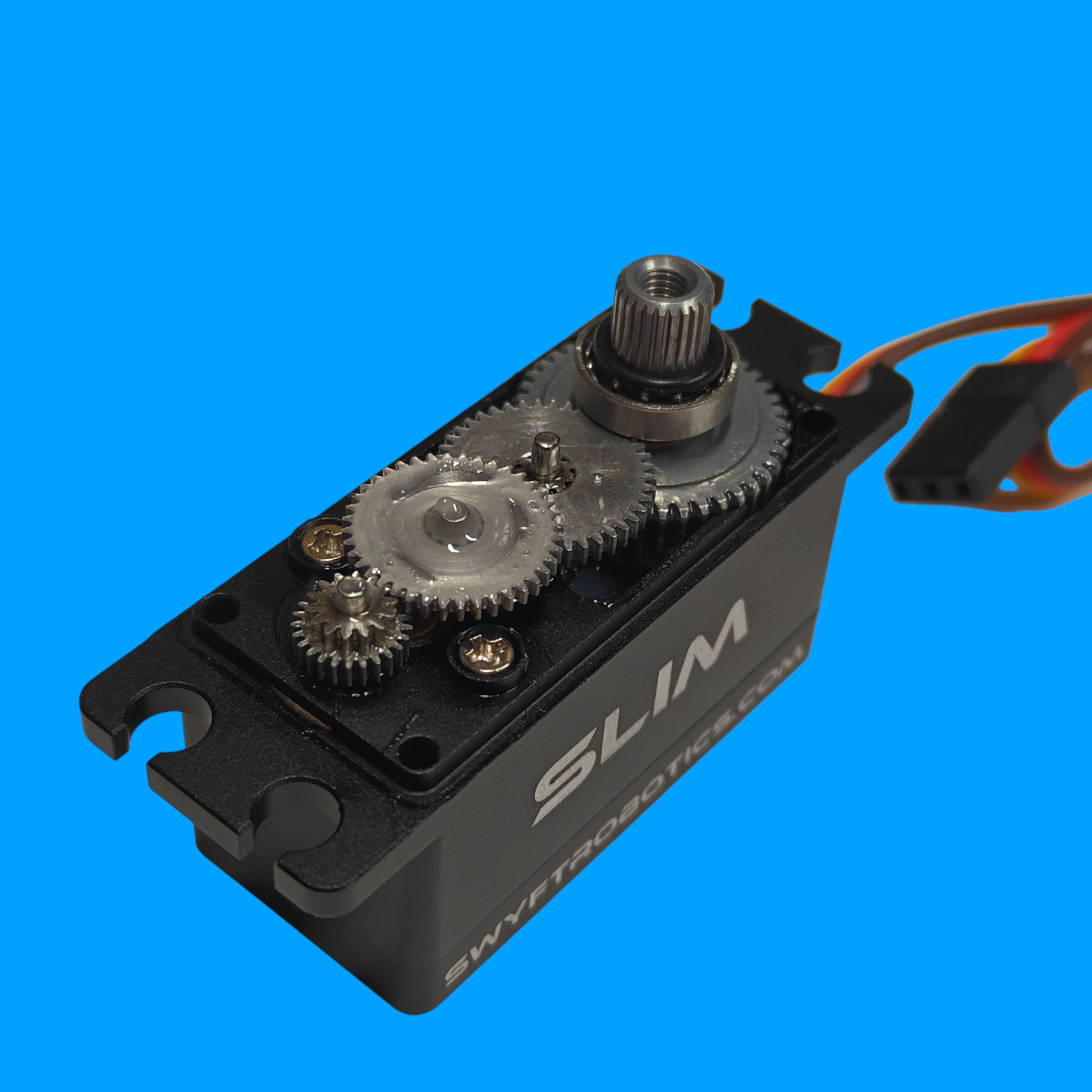

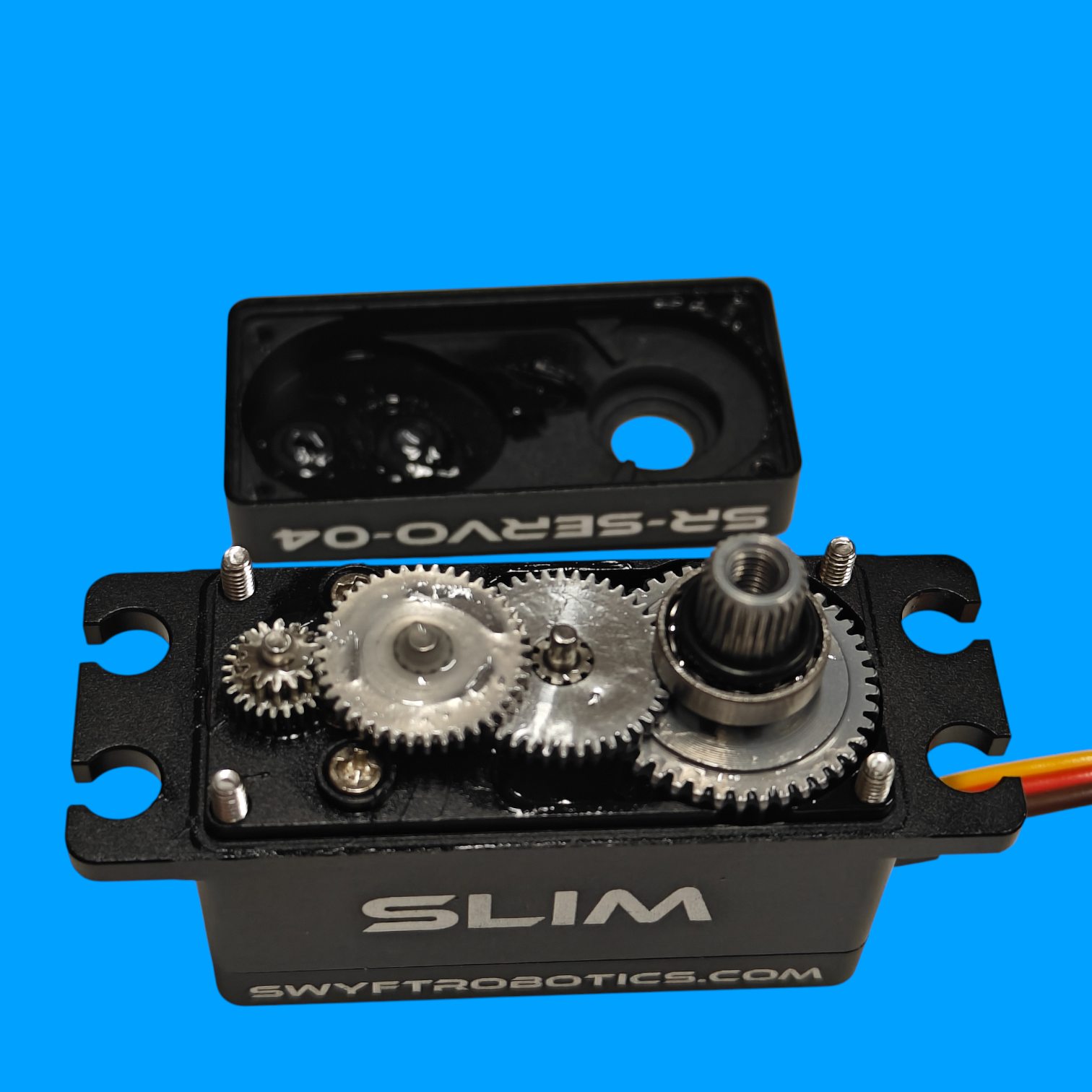

• Robust Steel Gears

• Continuous Rotation (Full speed only)

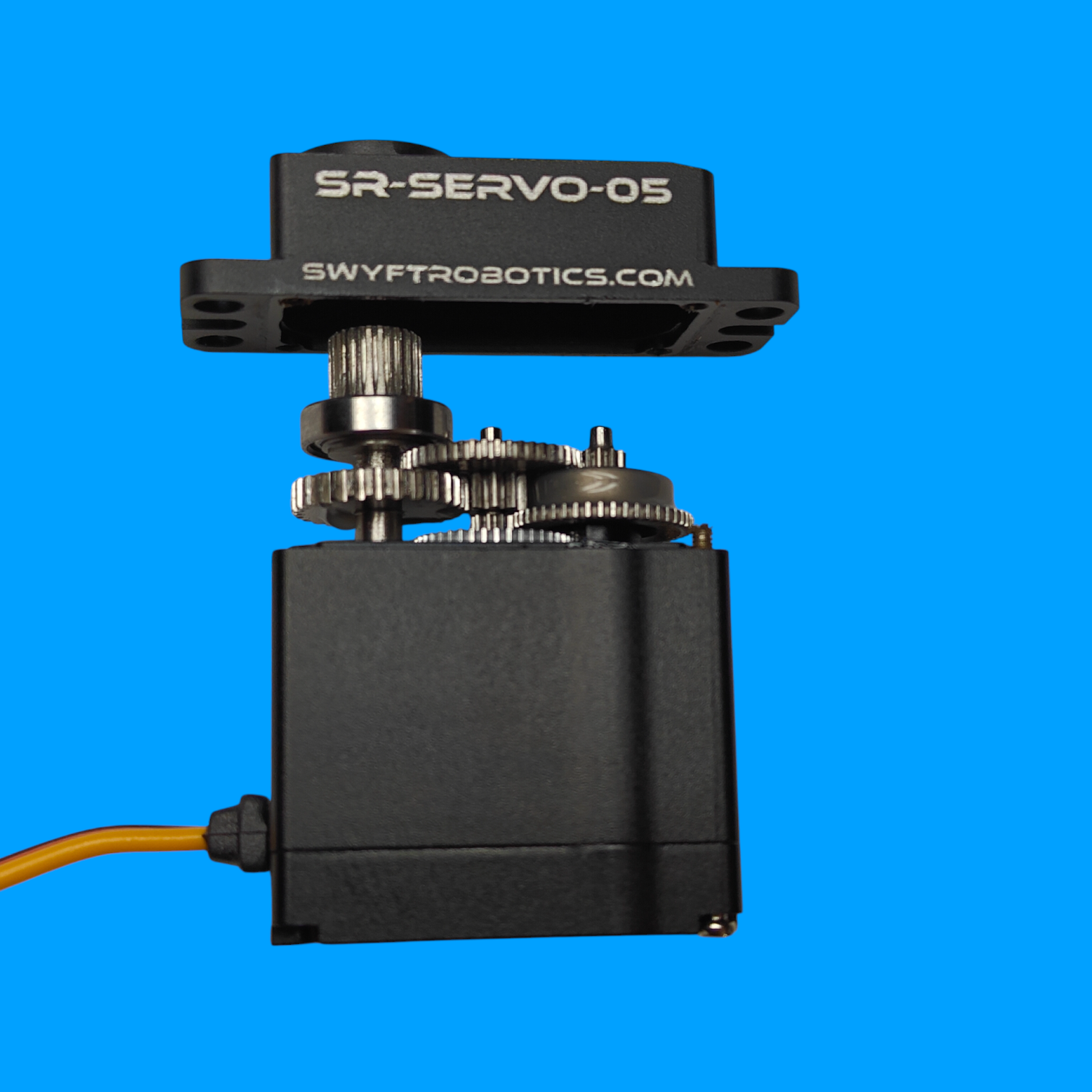

SWYFT Nano Servo: Micro-Sized Motion, Mighty Performance

The SWYFT Nano is our smallest and lightest servo yet, designed for intricate mechanisms and ultra-compact robots where every millimeter and gram counts.

SWYFT Nano Key Features:

• Featherlight: Incredible 20g weight for the most weight-sensitive designs.
• Ultra-Compact Footprint: A remarkably tiny 24mm x 12mm x 27mm (LxWxH) design allows for integration into the most confined spaces.
• Efficient Power: Operates at 2.4W, providing surprising power for its size.
• Mini Servo Spline (B25T) (Plastic Servo Horns Included)

• Robust Steel Gears
• Replacement Gear Sets Available

Shared Features of SWYFT Slim & SWYFT Nano Servos:

Despite their compact sizes, both the SWYFT Slim and SWYFT Nano share the core engineering excellence of the SWYFT family:

• Coreless Motor Technology: Delivers superior efficiency and precise control.

• Aluminum Billet Body: A strong and lightweight aluminum billet body provides structural integrity and efficient heat dissipation.
• Dual Ball Bearings: Ensures smooth operation, reduced friction, and extended lifespan.
• Programmable: Unlock advanced customization with the SWYFT Servo Programmer (sold separately).

  • 320 Degrees Range of Travel (ships with 270 degrees)
  • PID Coefficients
  • Stall Protection (turns off servo after 10 seconds of stall)
  • Direction (CW or CCW)

Upgrade Your Compact Robot Designs: The SWYFT Slim and SWYFT Nano servos provide unparalleled precision and power in miniature packages, empowering you to create more intricate, lightweight, and capable robotic systems.


Slim CAD
Slim Drawing
Nano CAD
Nano Drawing
Servo Programming Software
