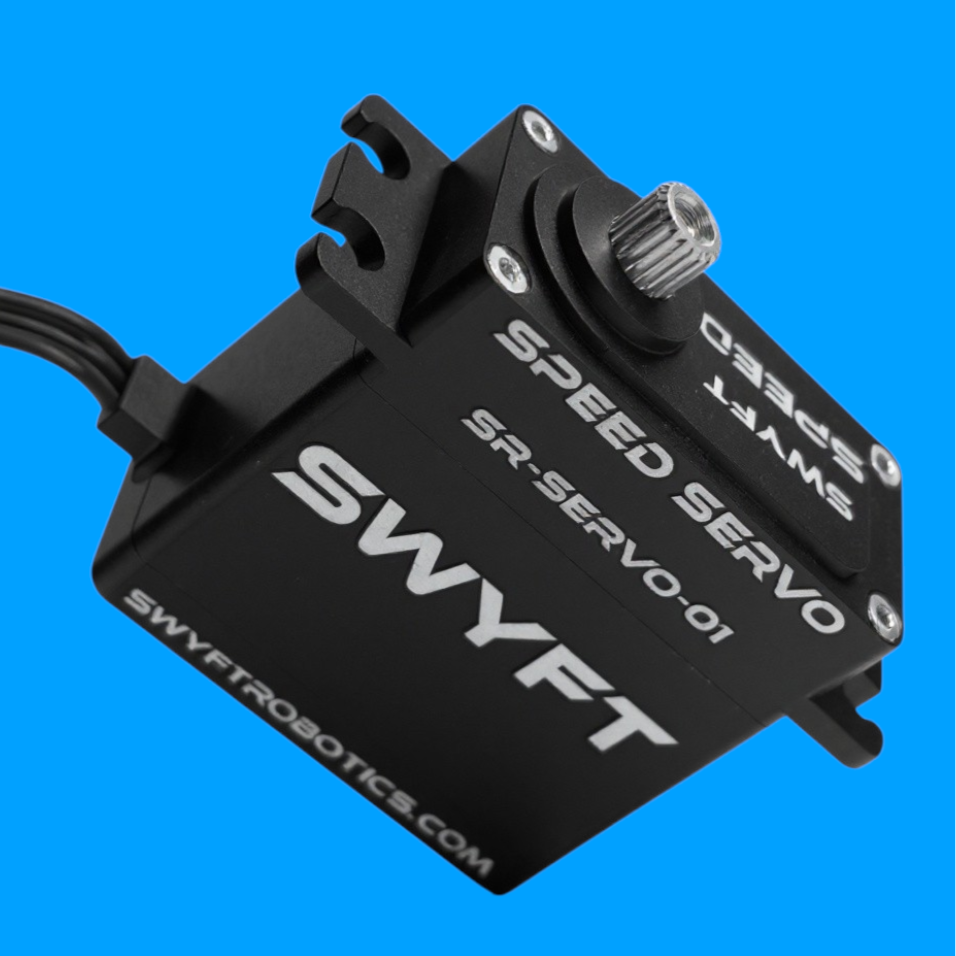

SWYFT Servos

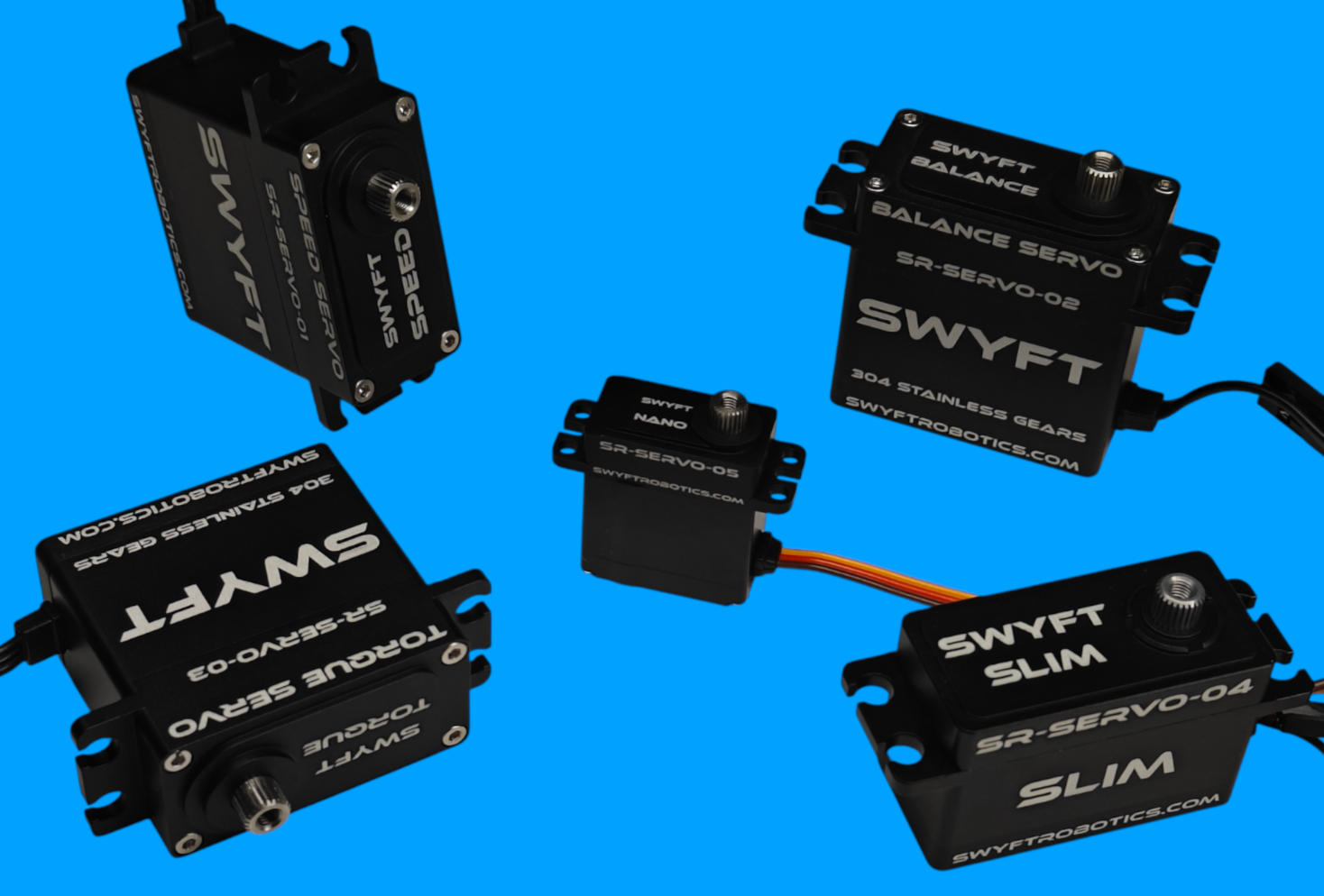

New Mini Servos

Elevate your FTC robot's performance with SWYFT Servos, precision-engineered for unmatched power, durability, and versatility in competitive robotics. Designed by SWYFT Robotics, these servos combine advanced technology with robust construction to deliver reliable operation, whether for quick maneuvers, balanced control, or heavy-duty lifting.

Key Features

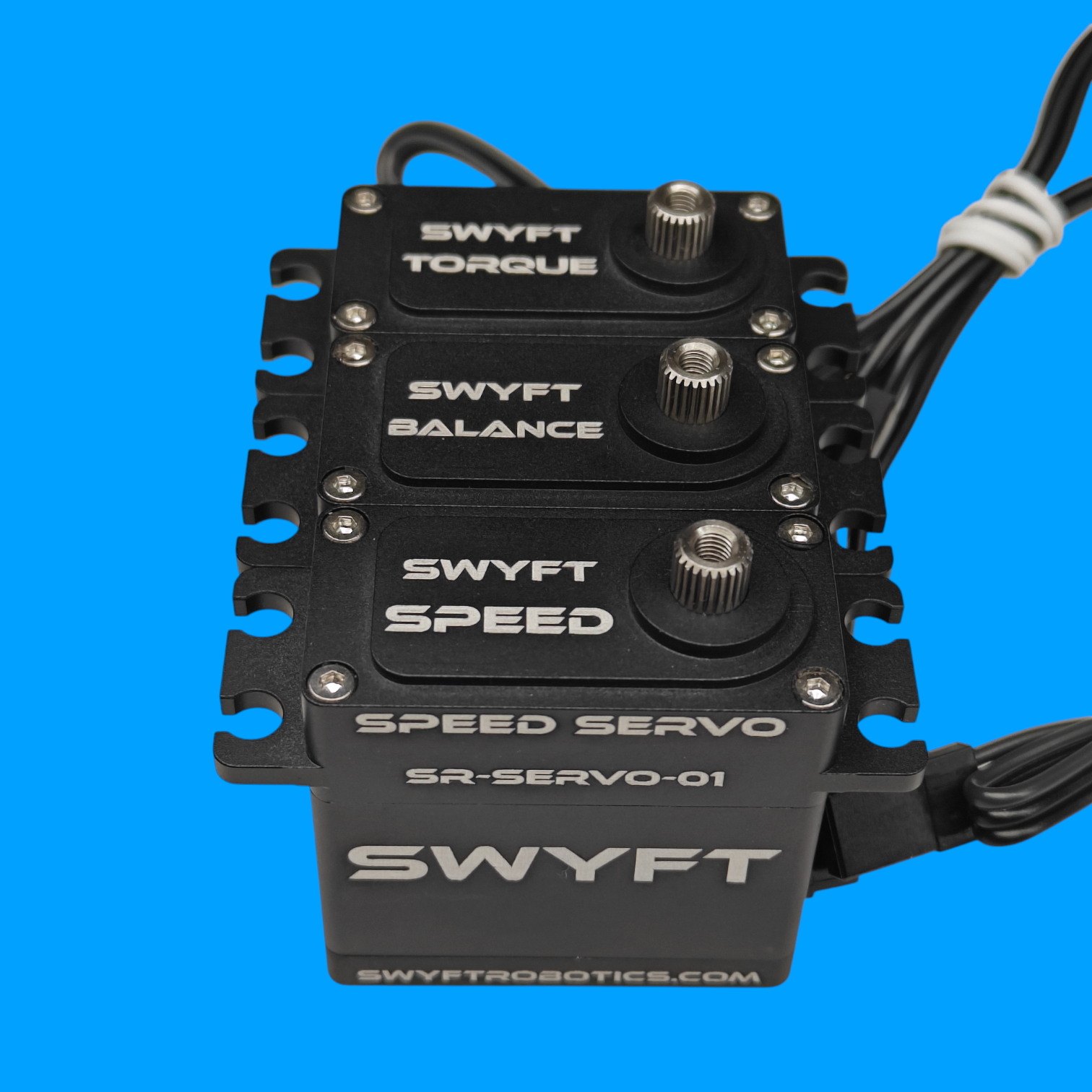

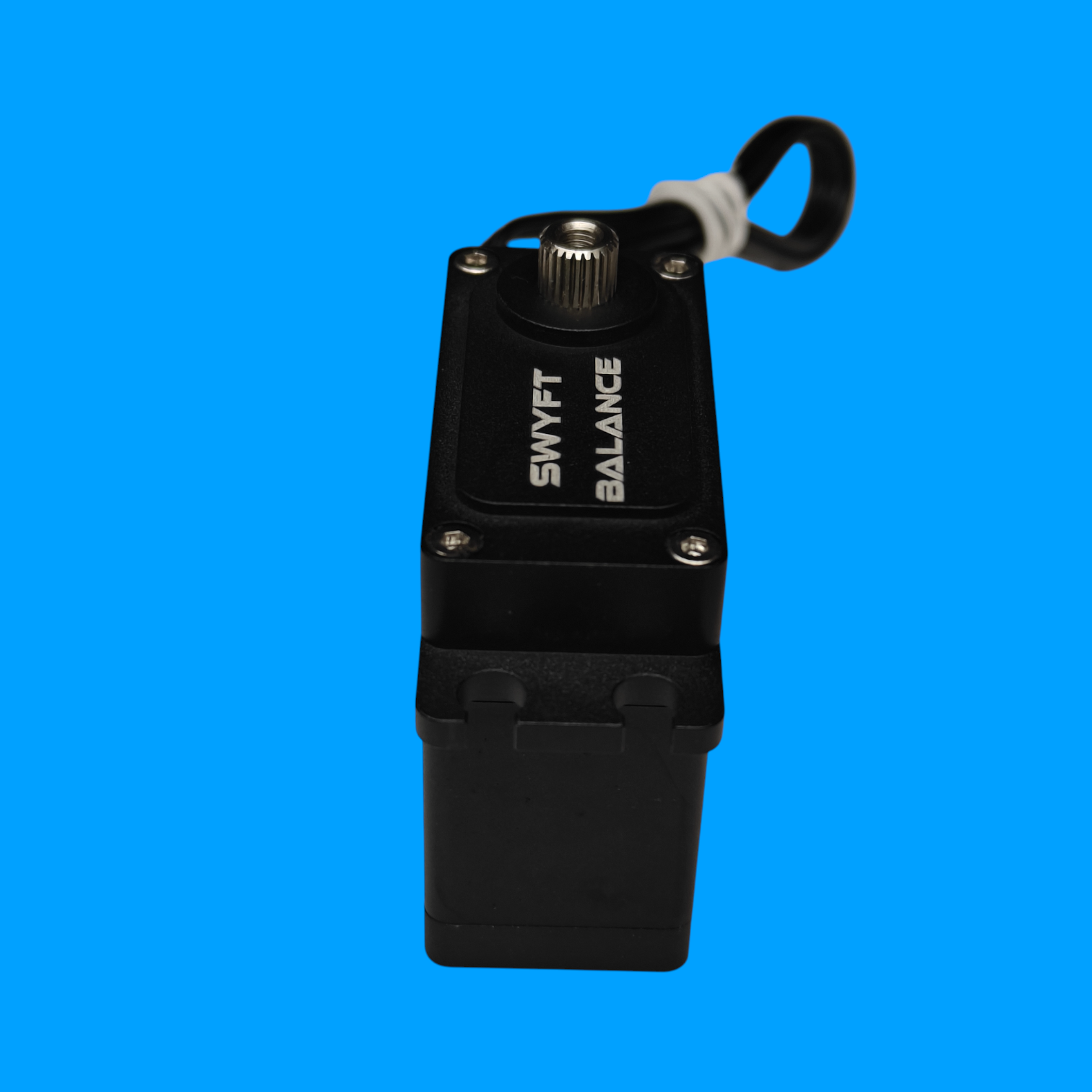

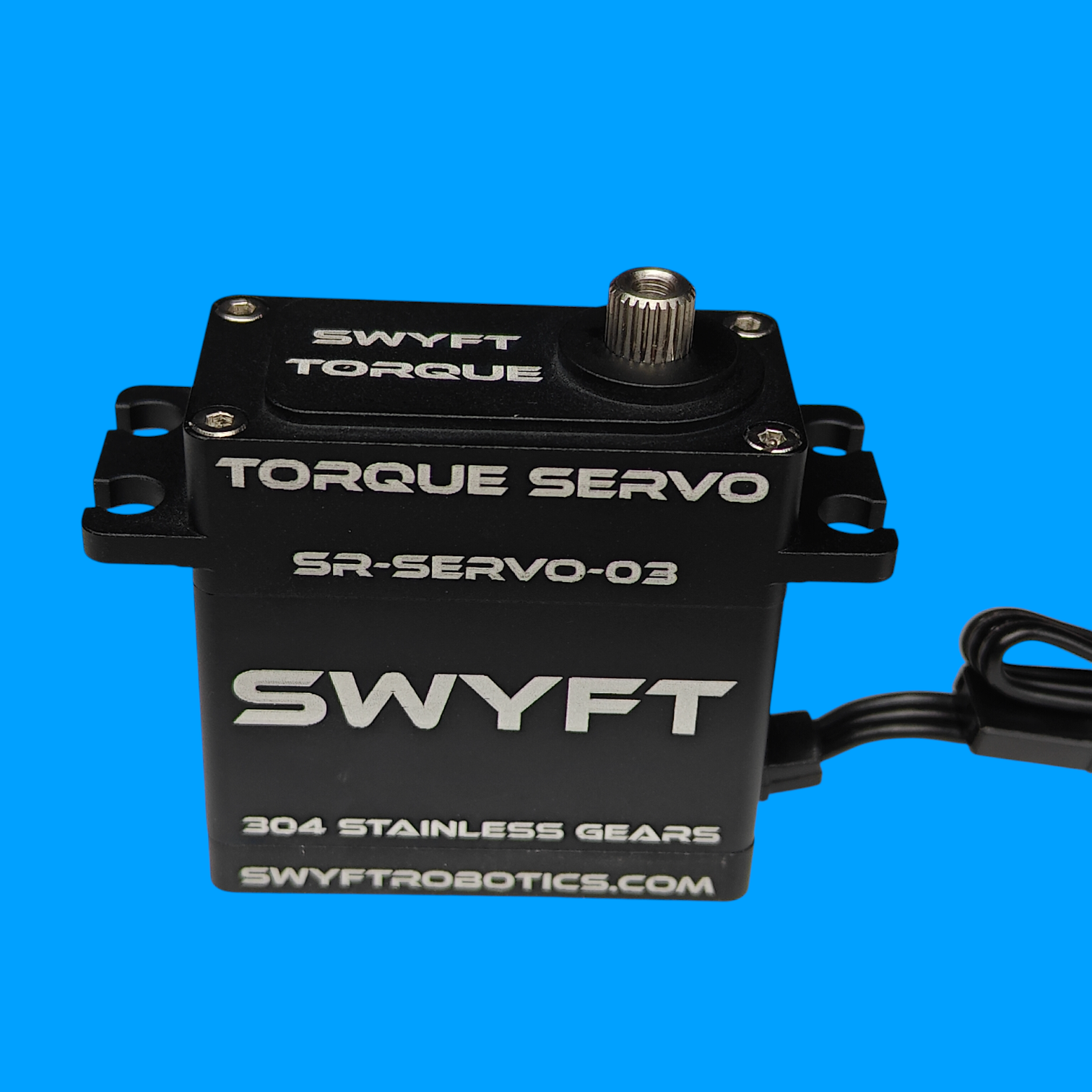

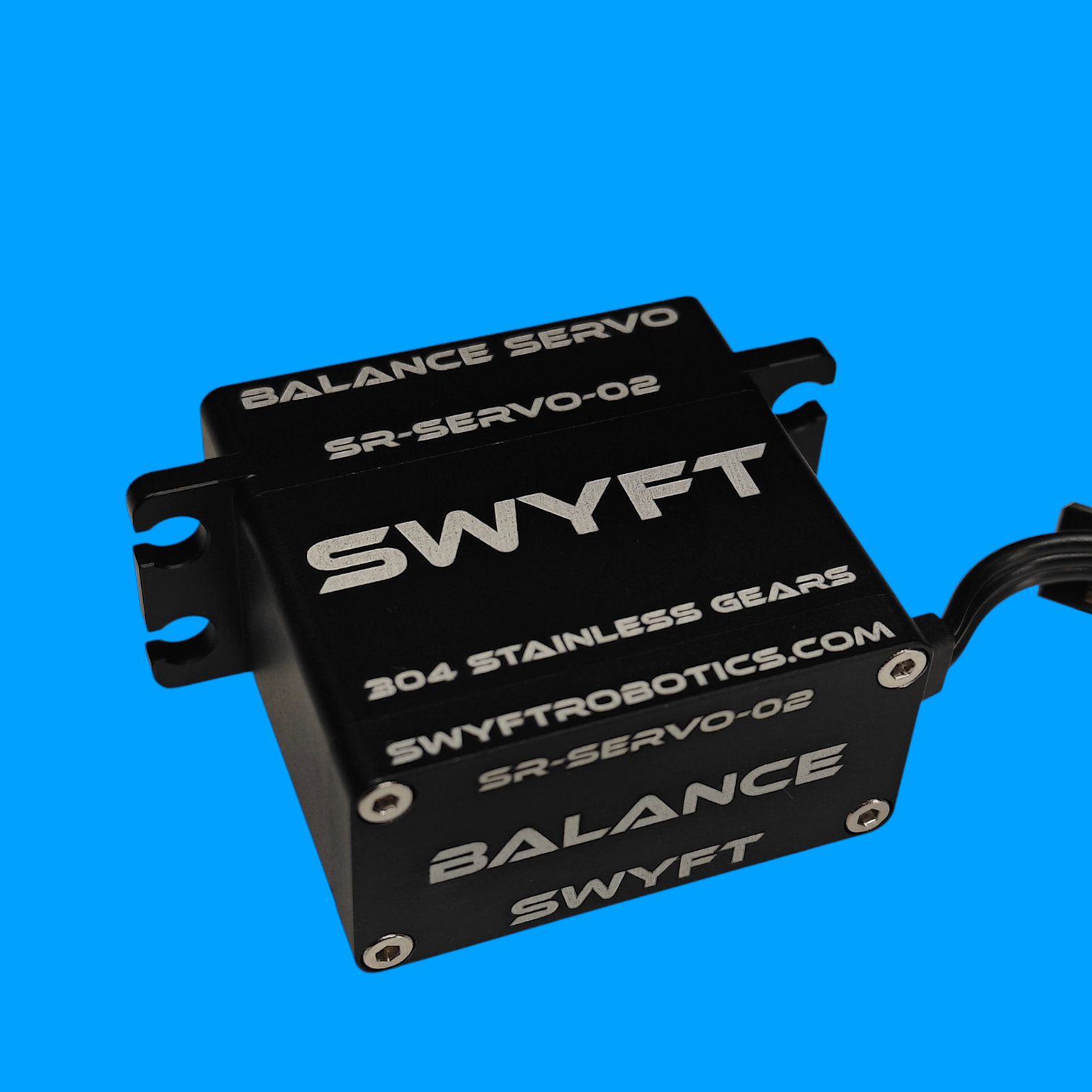

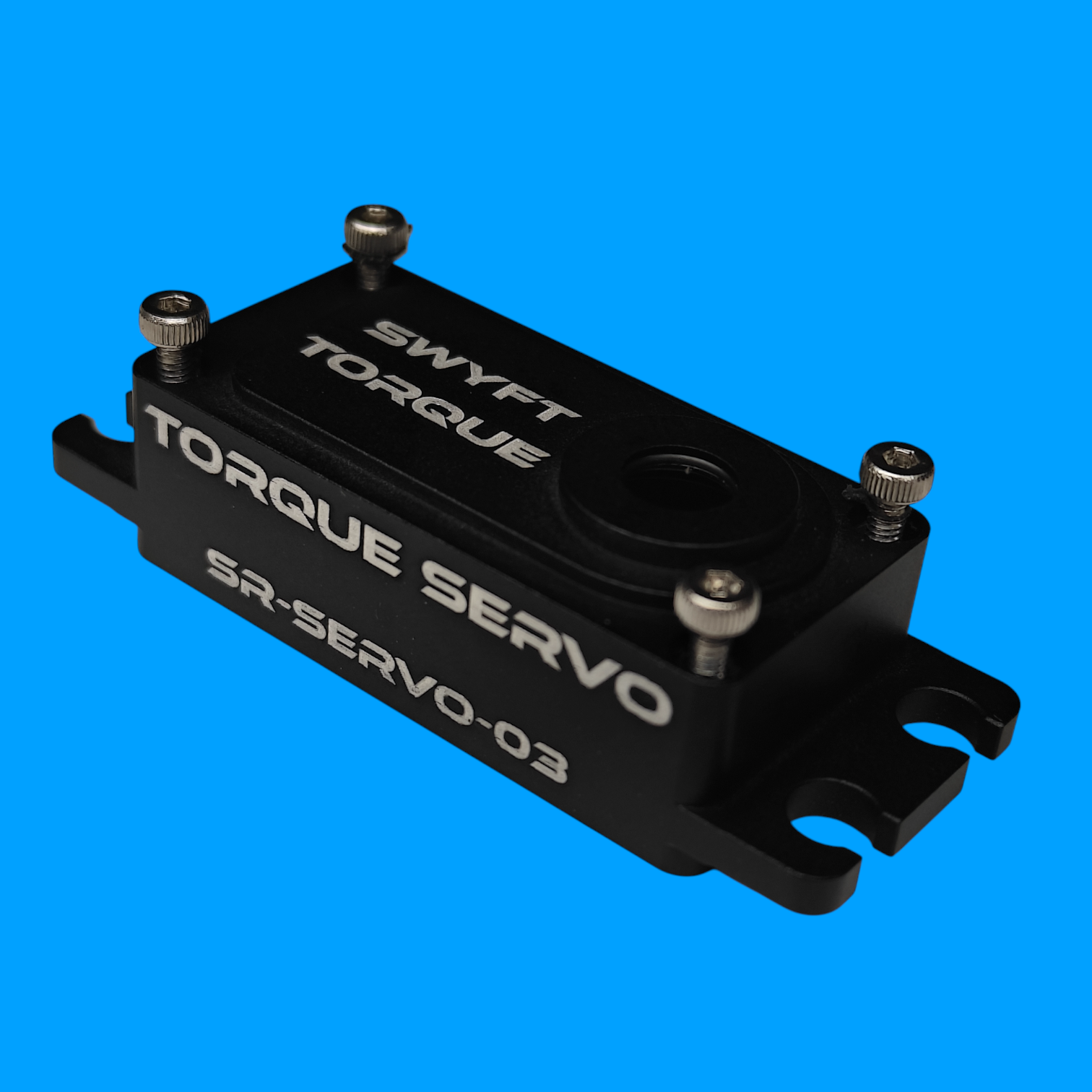

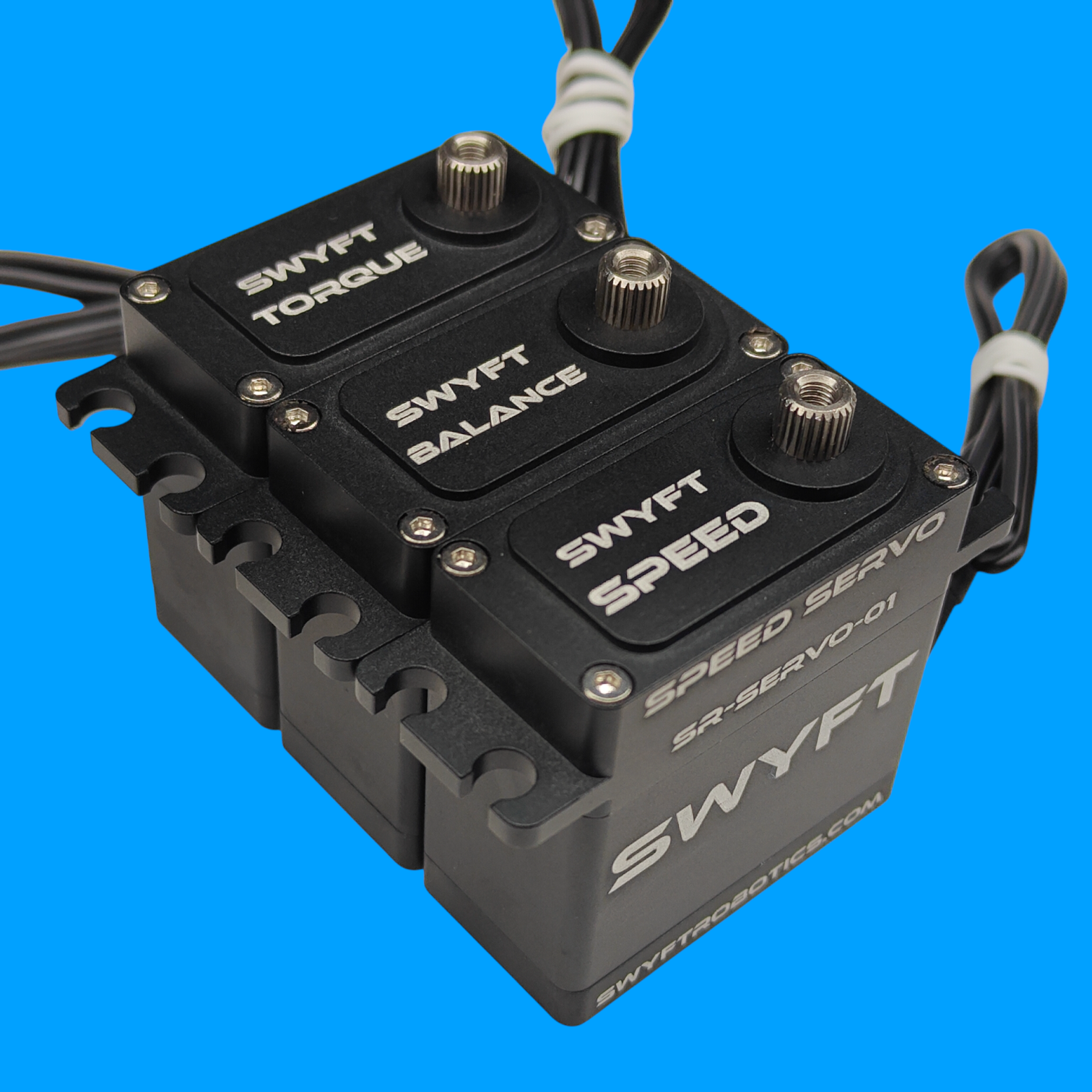

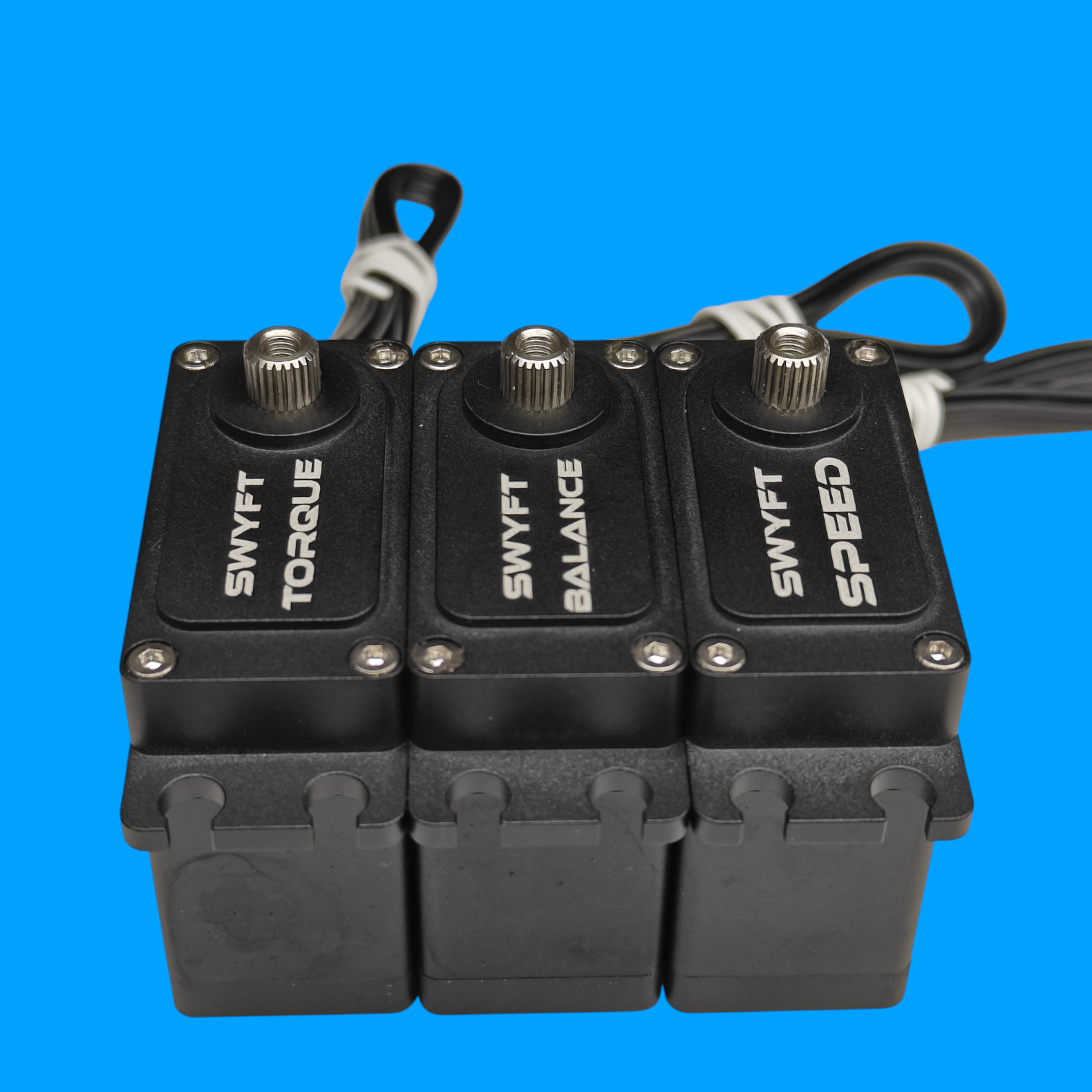

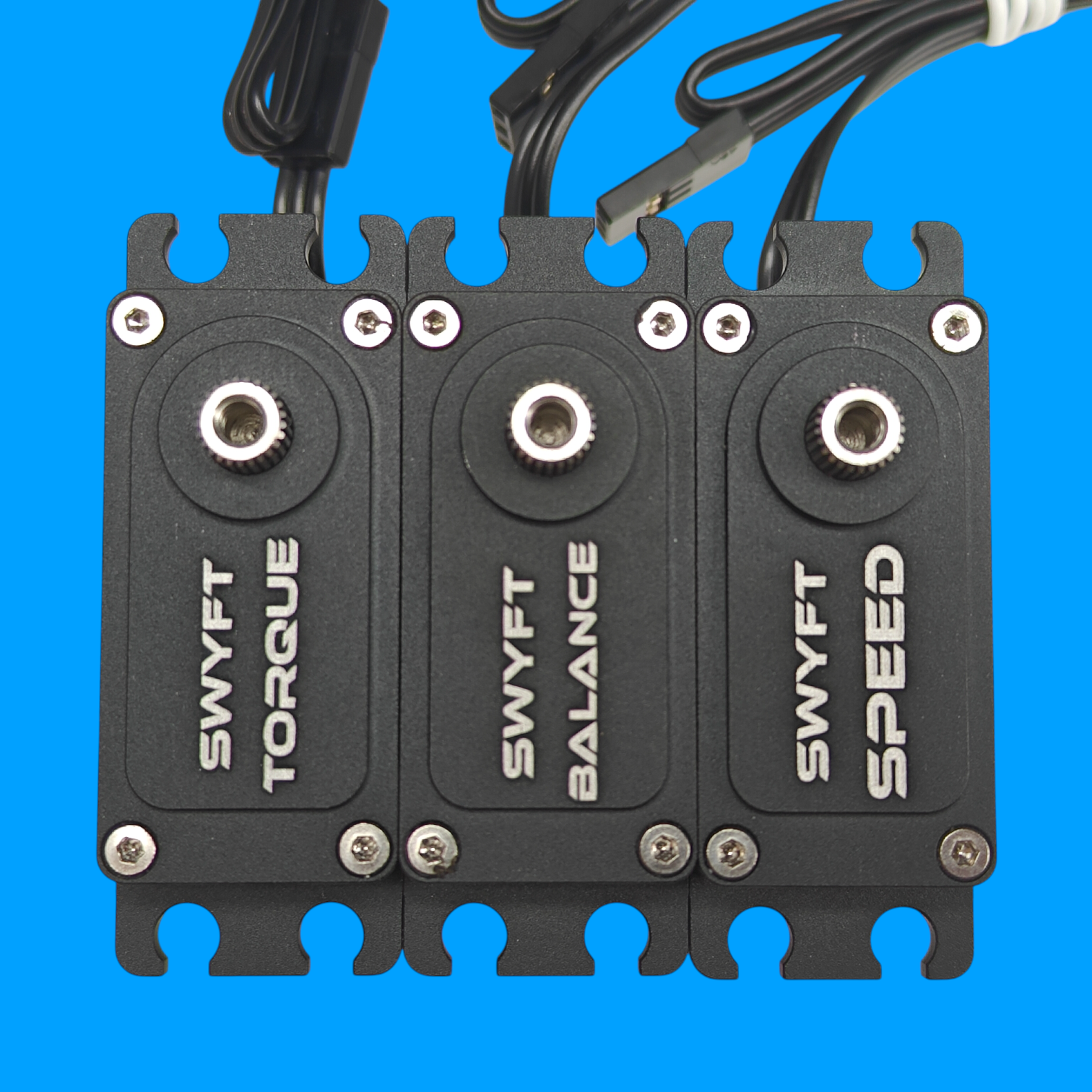

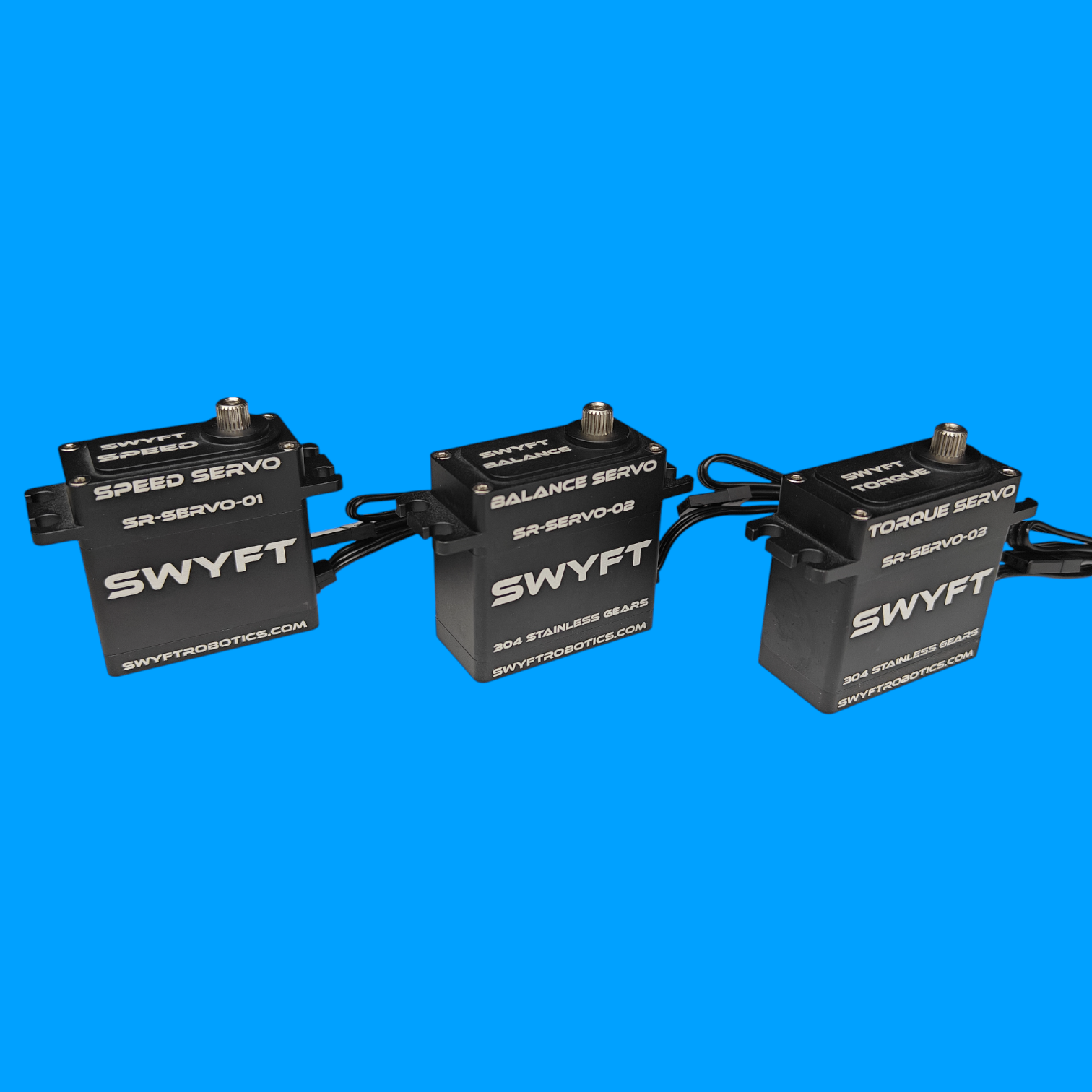

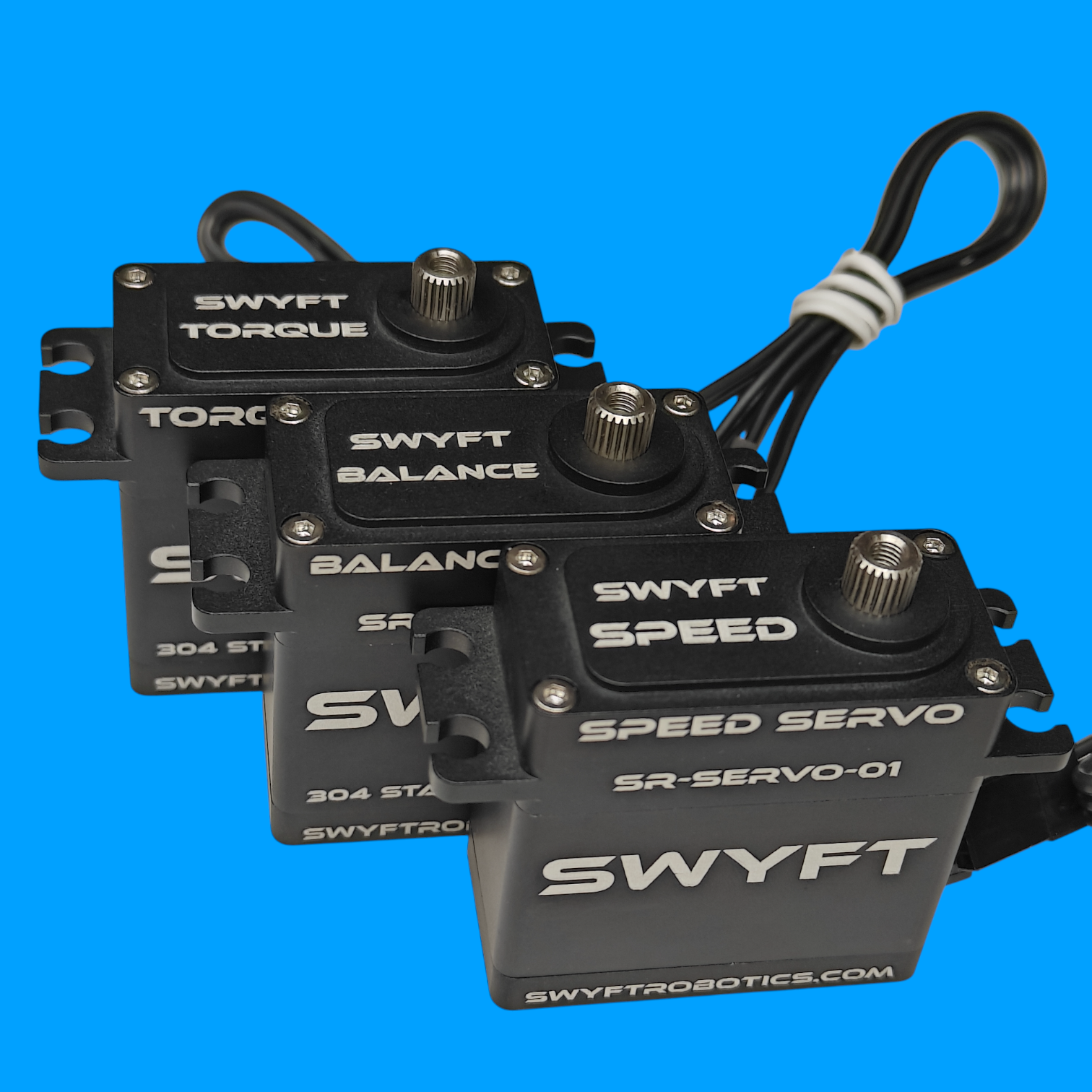

• Three Gear Ratio Options: Select from Speed (for lightning-fast movements), Balance (for optimal all-around performance), or Torque (for maximum power in heavy lifts), tailoring the servo to your specific application.
• Ultra-Robust Gears: Built to endure the rigors of competition; V1.1 Balance and Torque models feature upgraded Hardened SS304 gears for superior strength and resilience (significantly tougher than standard gears, though not indestructible). The Speed model uses a combo of larger stainless steel and normal steel gears, providing inherent strength.
• Coreless Motor Power: As one of the most powerful servos on the market, they push very close to the legal limit of servo power. The coreless motor also provides exceptional efficiency, reducing power consumption.

  New Mini Servos



• Dual Ball Bearings: For smooth, precise rotation with minimal friction and wear.

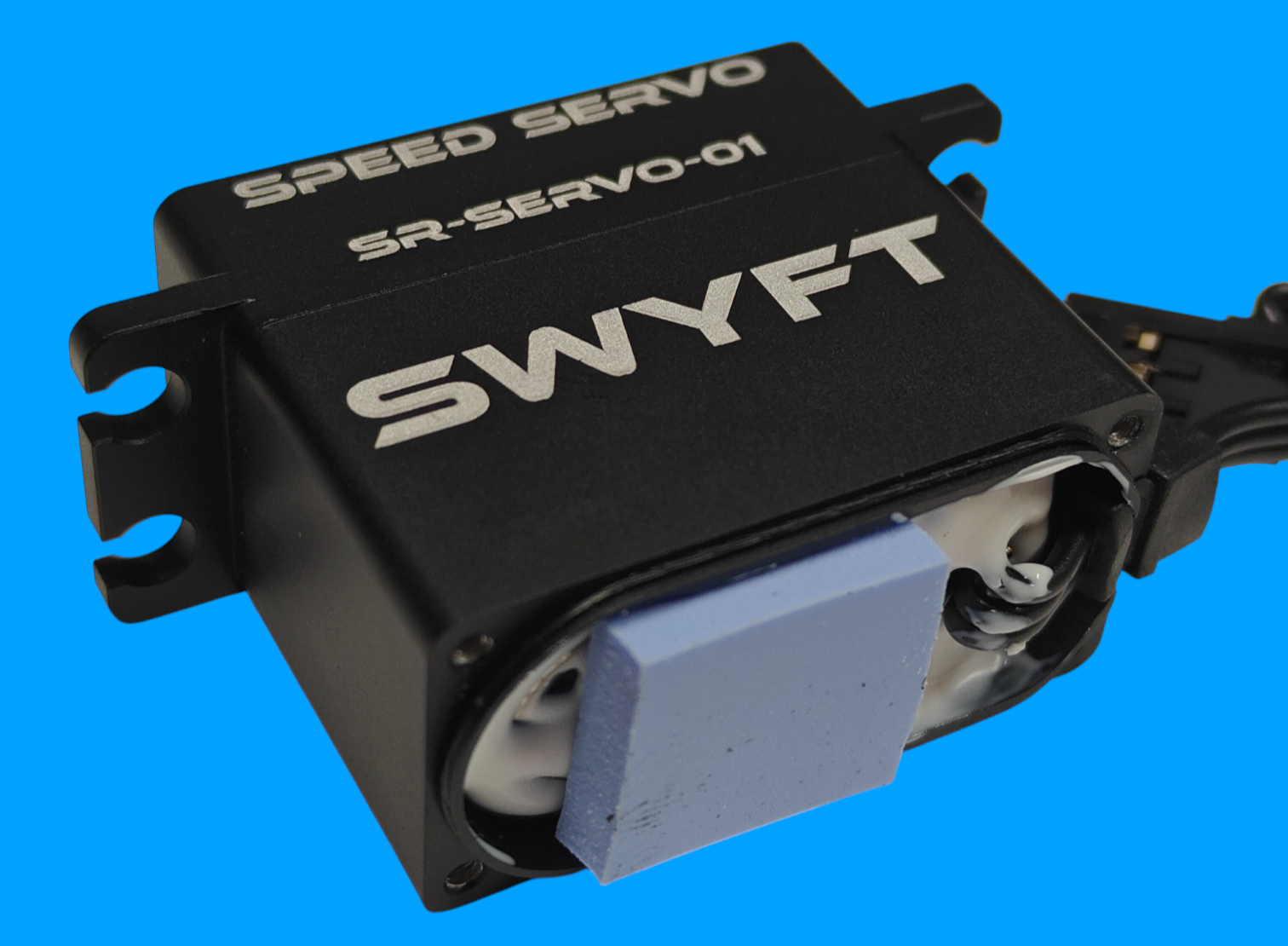

• Potted PCB Protection: The internal printed circuit board is sealed with potting compound to prevent failures from vibrations, impacts, or environmental factors.
• Type H25T Spline: Includes plastic servo horns for easy attachment and compatibility.
• Aluminum Servo Body: Lightweight yet incredibly strong
• 83 grams
• FTC and FRC Legal

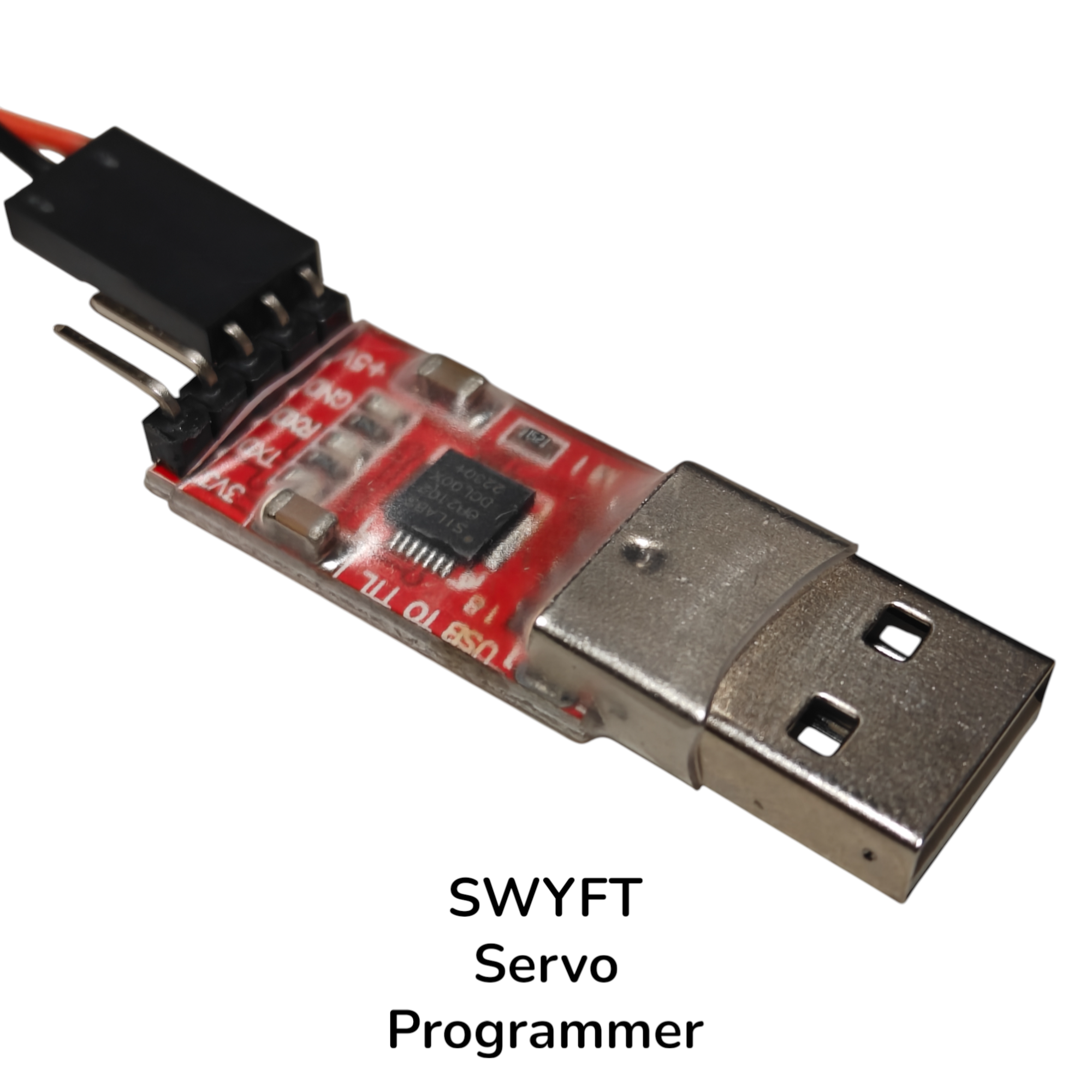

• Programmable Functionality: Customize via the SWYFT Servo Programmer (sold separately) for advanced control.

Programmable Options (with Servo Programmer)

• Continuous Rotation: Supports full-speed continuous mode for endless applications.
• Expanded Range of Travel: Up to 320 degrees (ships with 270 degrees default).
• PID Coefficients: Fine-tune for precise control and responsiveness.
• Stall Protection: Automatically disables the servo after 10 seconds of stall to prevent damage.
• Direction Control: Switch between clockwise (CW) or counterclockwise (CCW) operation.

Tested Performance: We've tested our servos to ensure they deliver the speed and torque they promise. Check out our testing videos to see them in action here!

Upgrade Your Robot Today: Experience the difference that power and durability can make with SWYFT Servos. Choose the perfect gear ratio for your application and unleash the full potential of your robot.

New Mini Servos

CAD (all servo models are the same)
Drawing (all servo models are the same)
Servo Programming Software (Default values in screenshot)
Servo Programmer Guide
