SWYFT Titan Servo Module

Also See SWYFT Servos

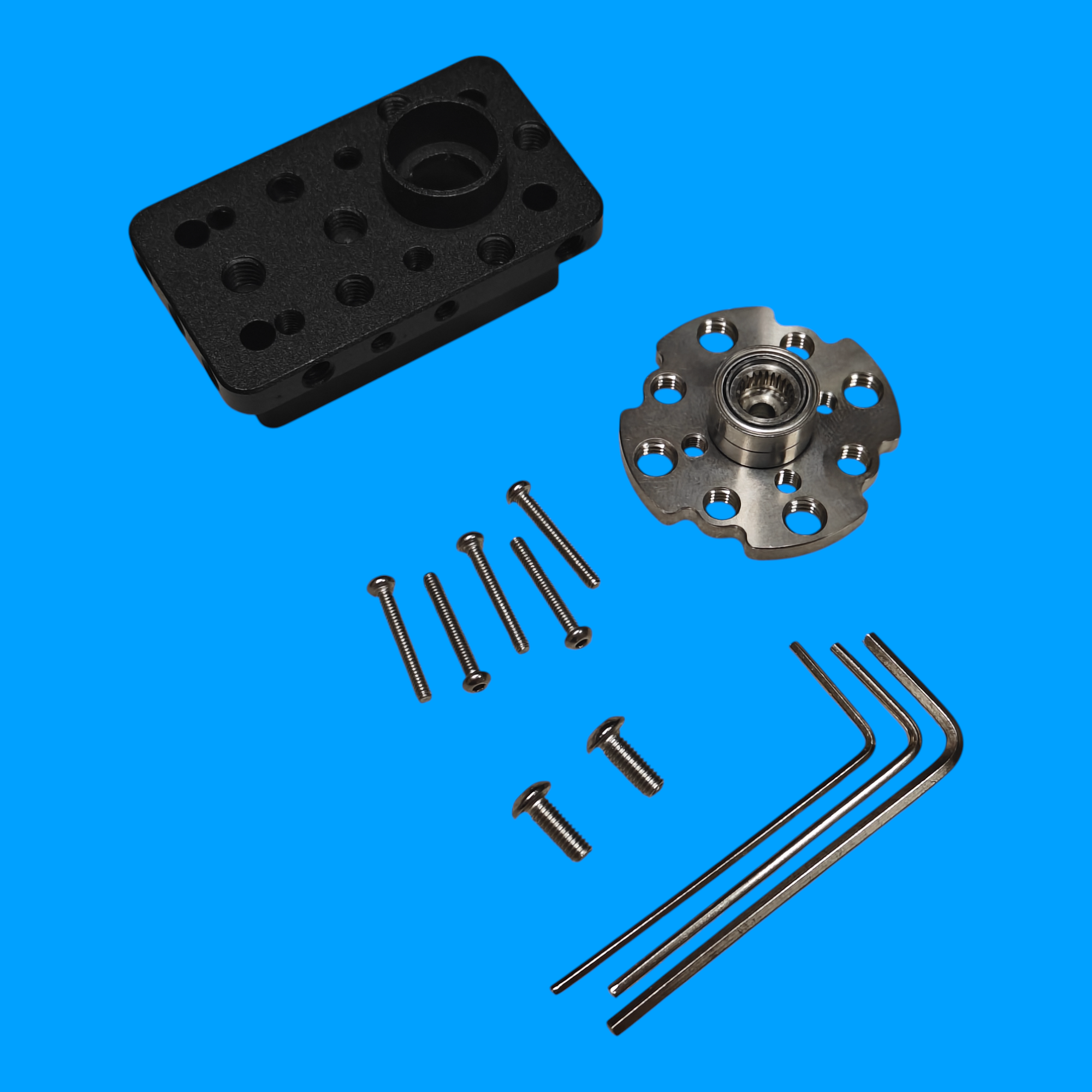

*The included 1.5 mm Allen key strips easily. Recommend using a higher-quality one from your own toolkit instead*

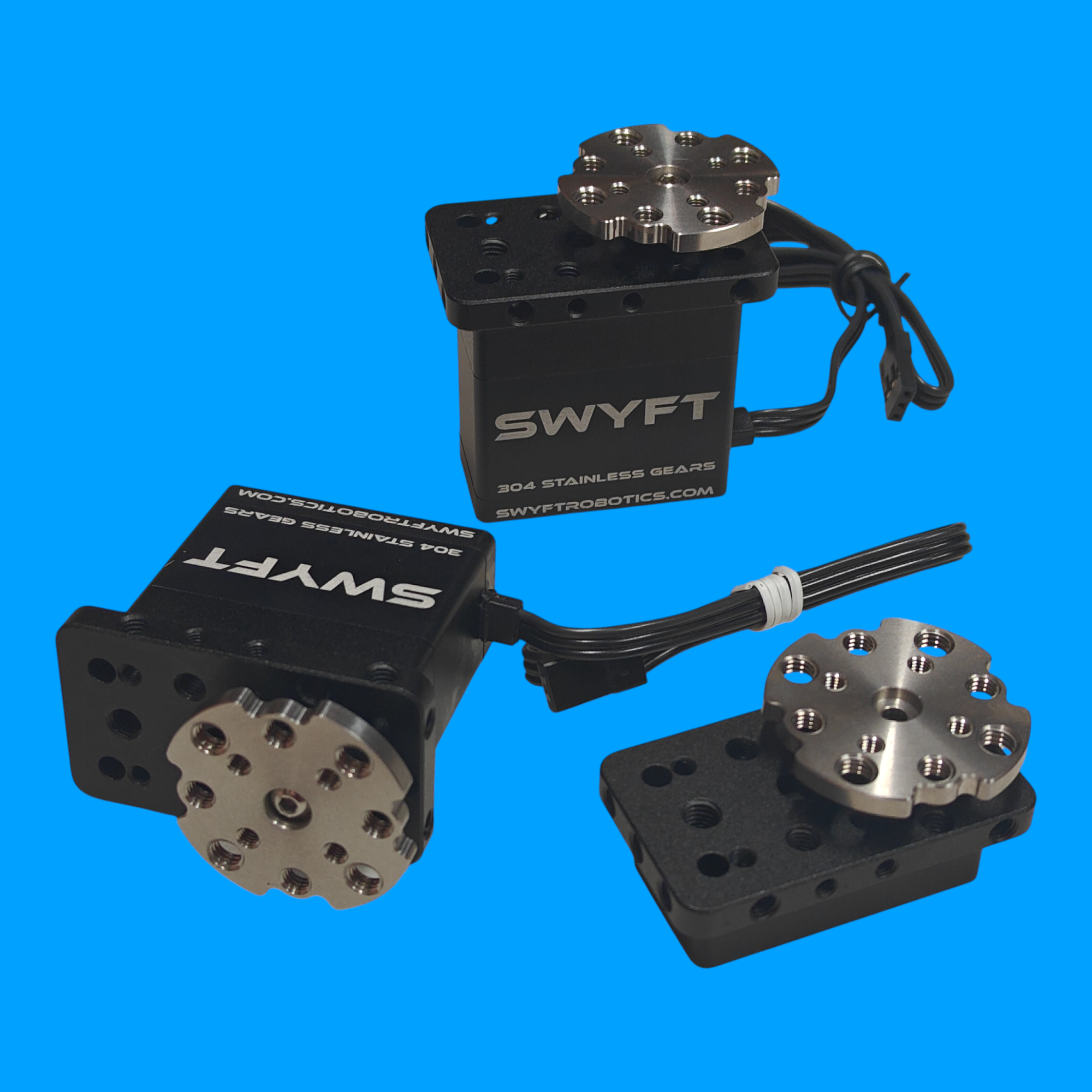

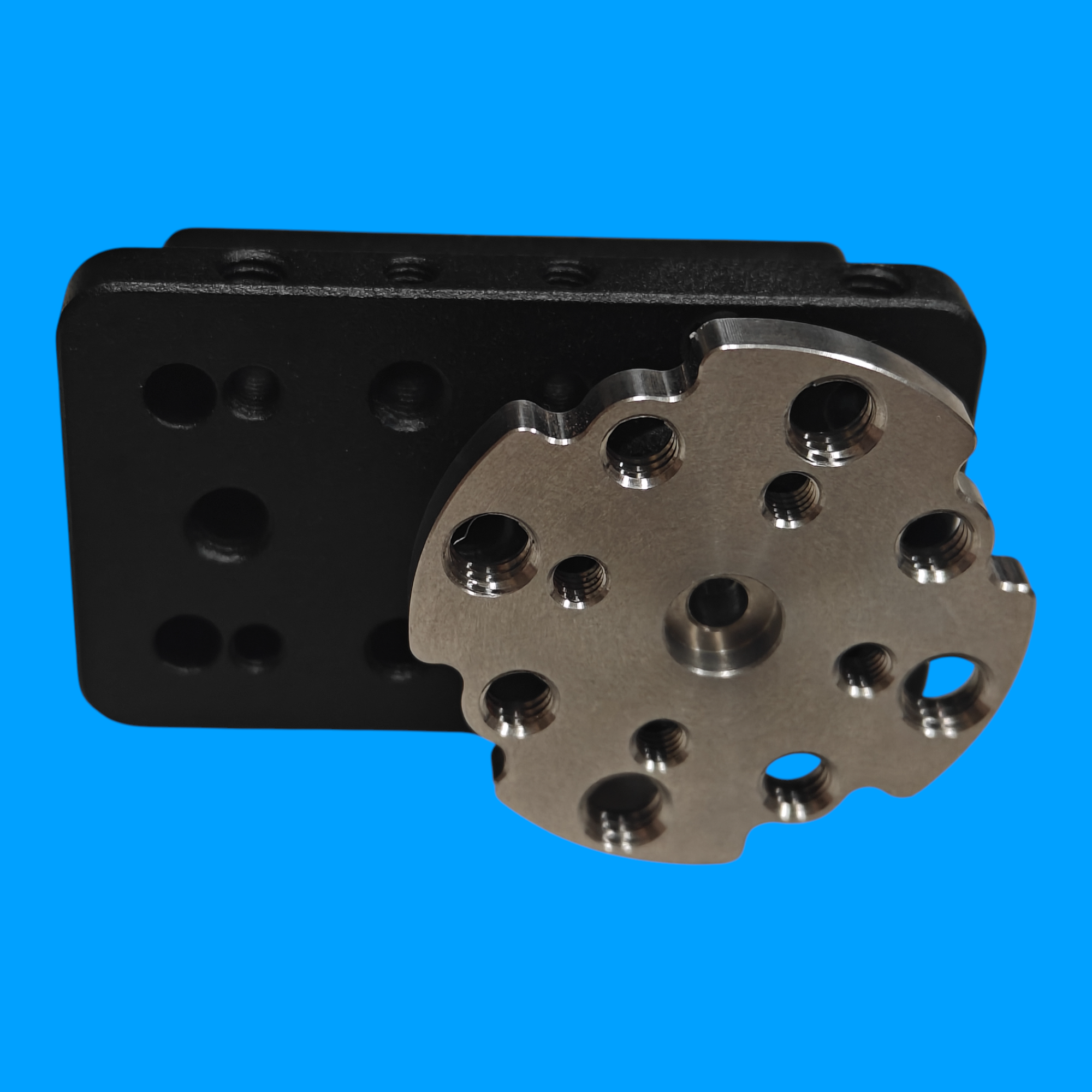

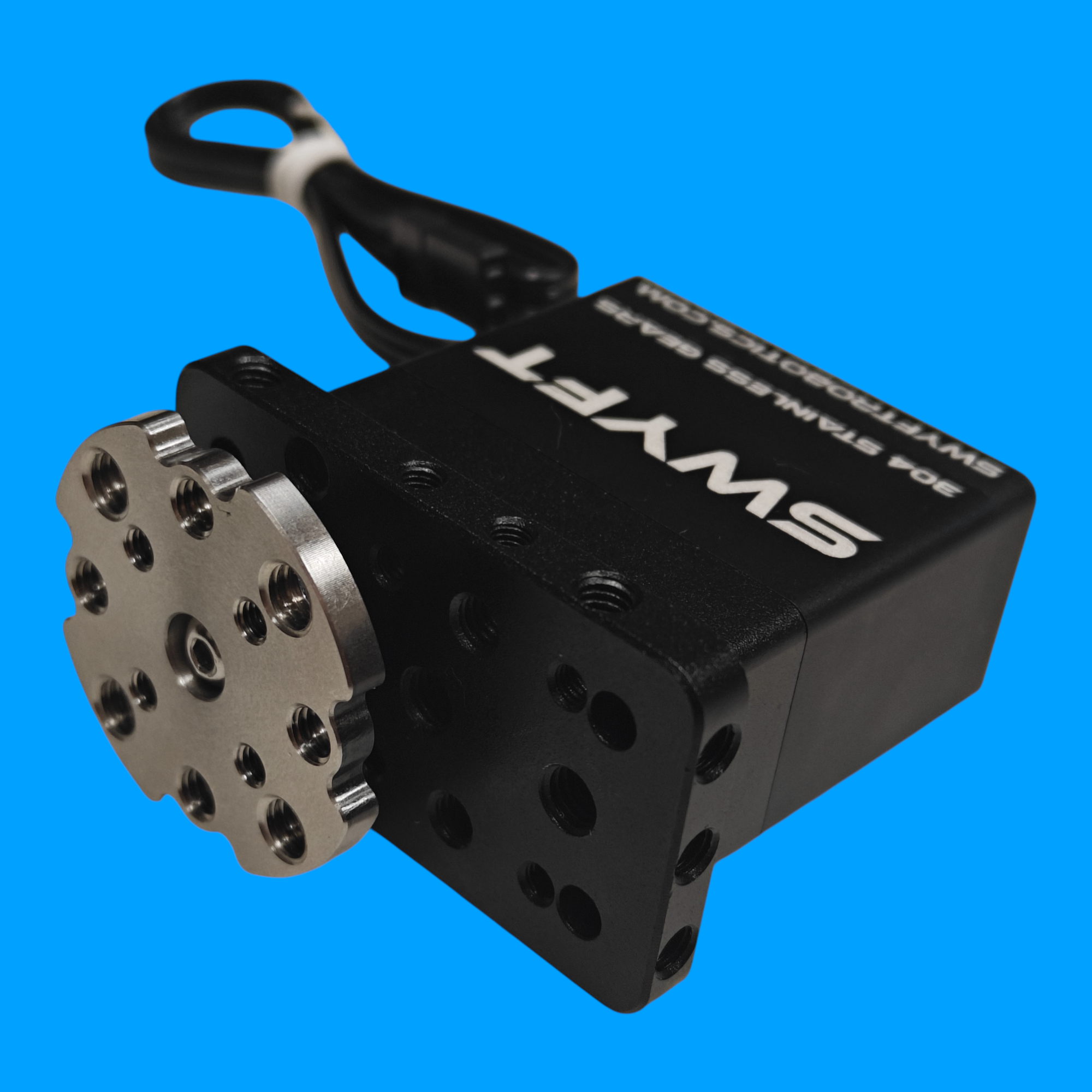

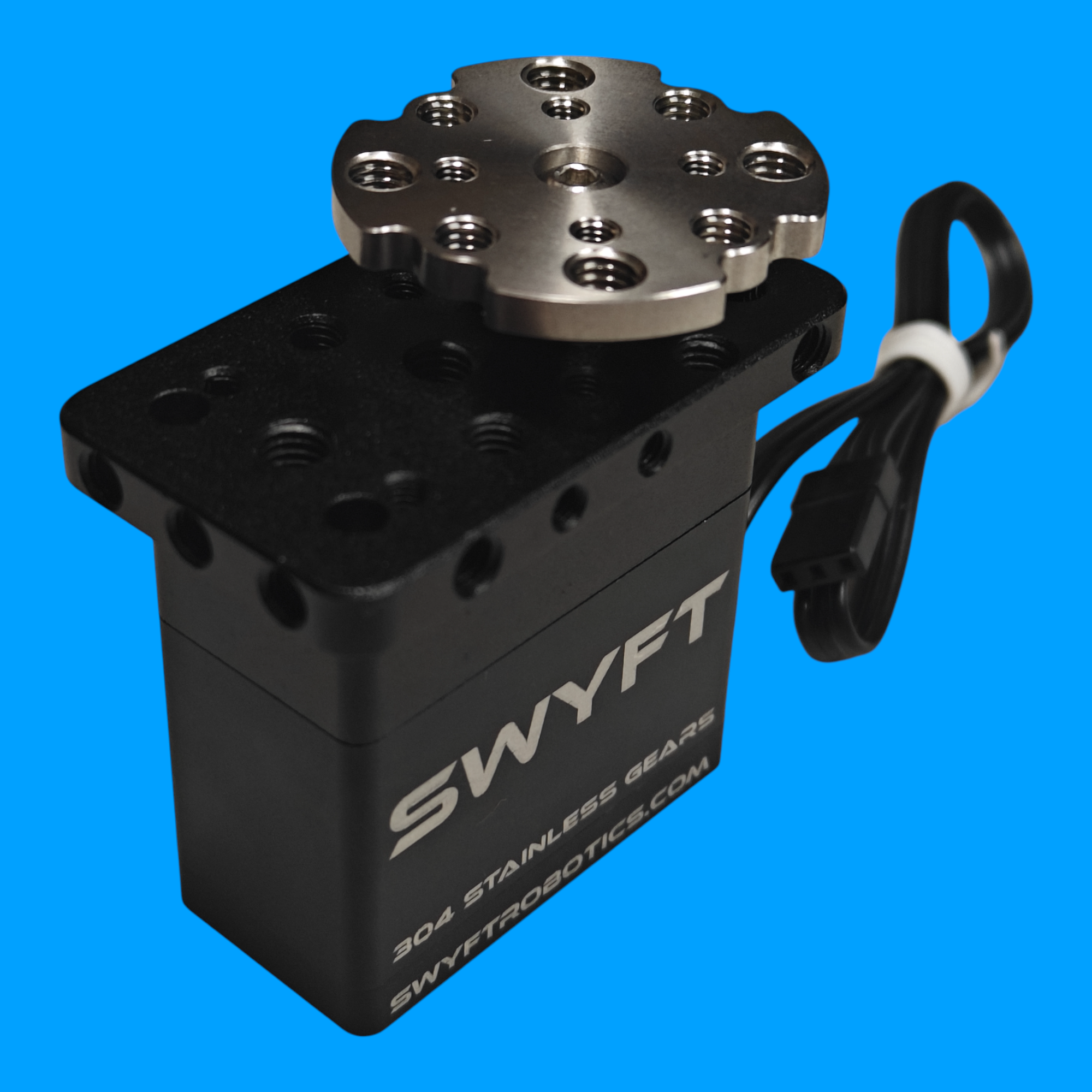

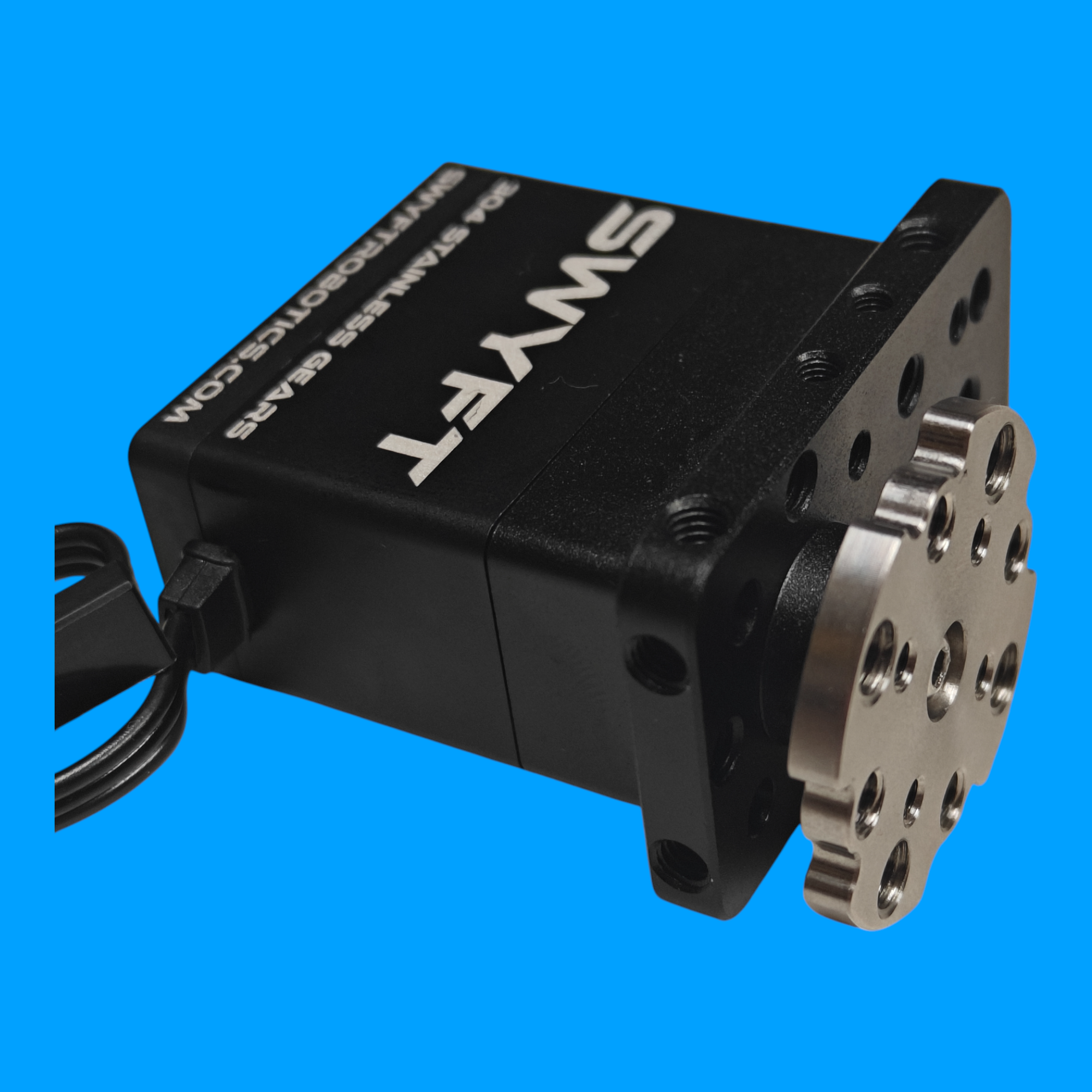

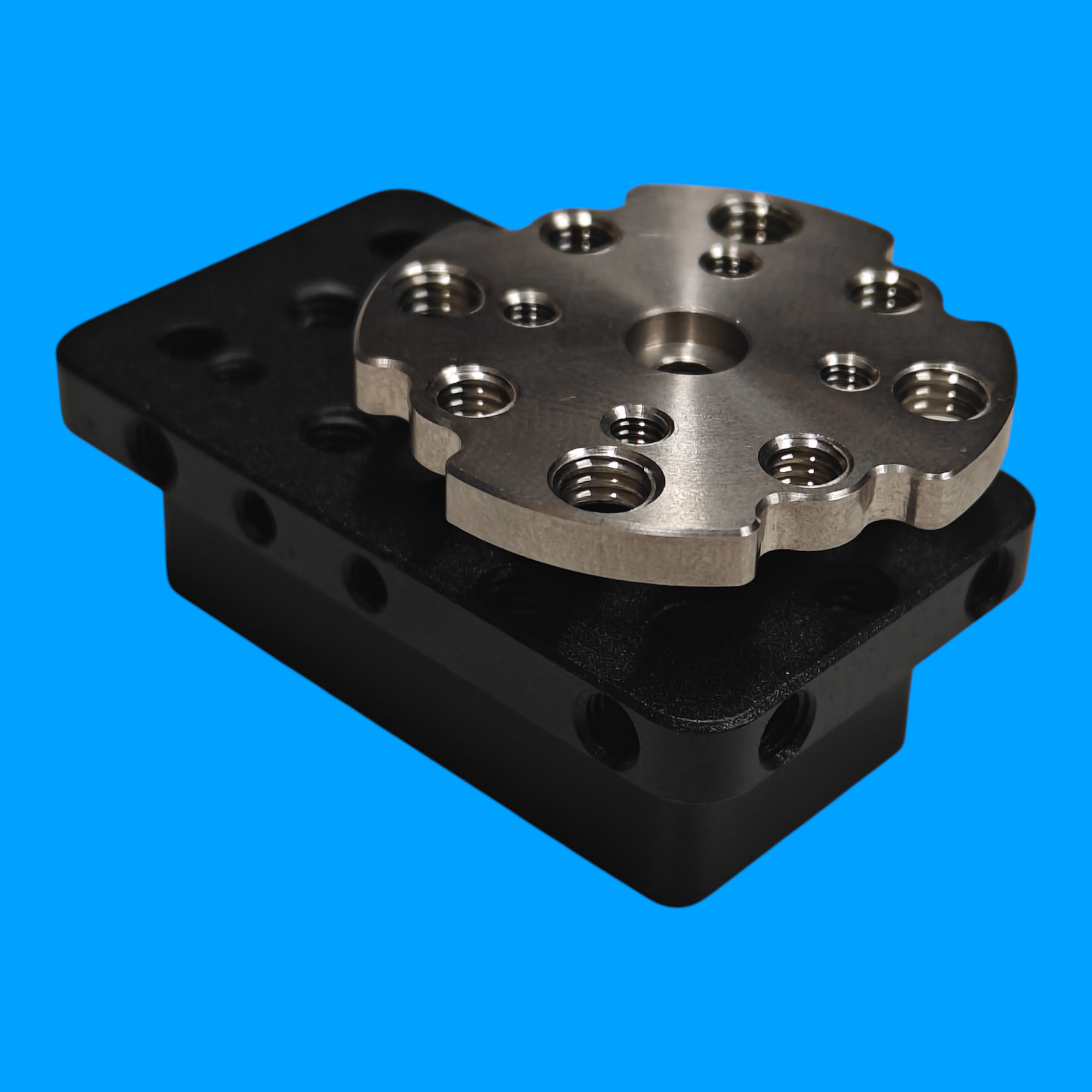

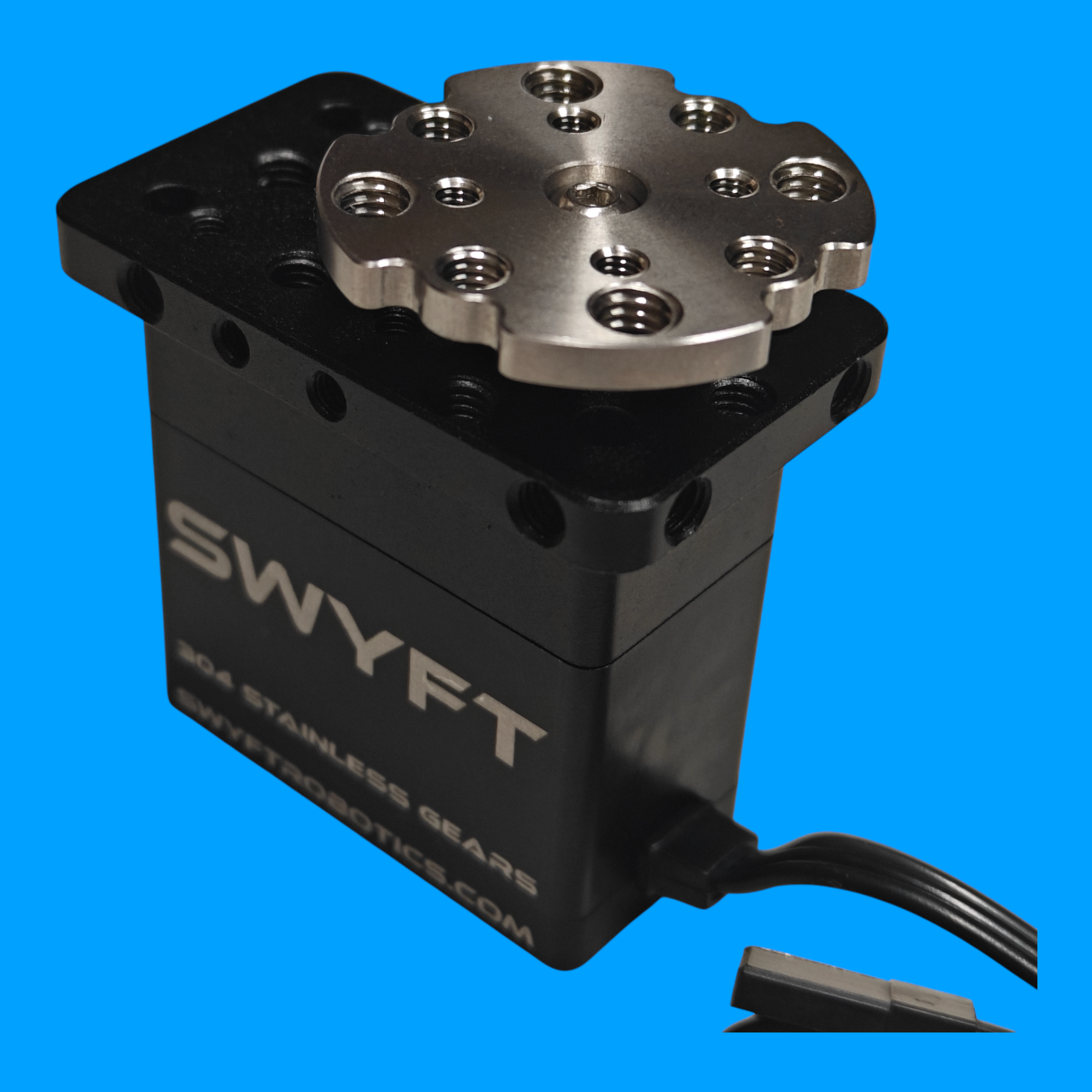

Transform your SWYFT Servos into a powerhouse for FTC and FRC robots with the SWYFT Titan Servo Module, an innovative add-on that enhances durability, versatility, and ease of integration. Designed by SWYFT Robotics, this module replaces the standard servo top with a robust aluminum block and adds a stainless steel hub, delivering unmatched strength and mounting flexibility.

Key Features

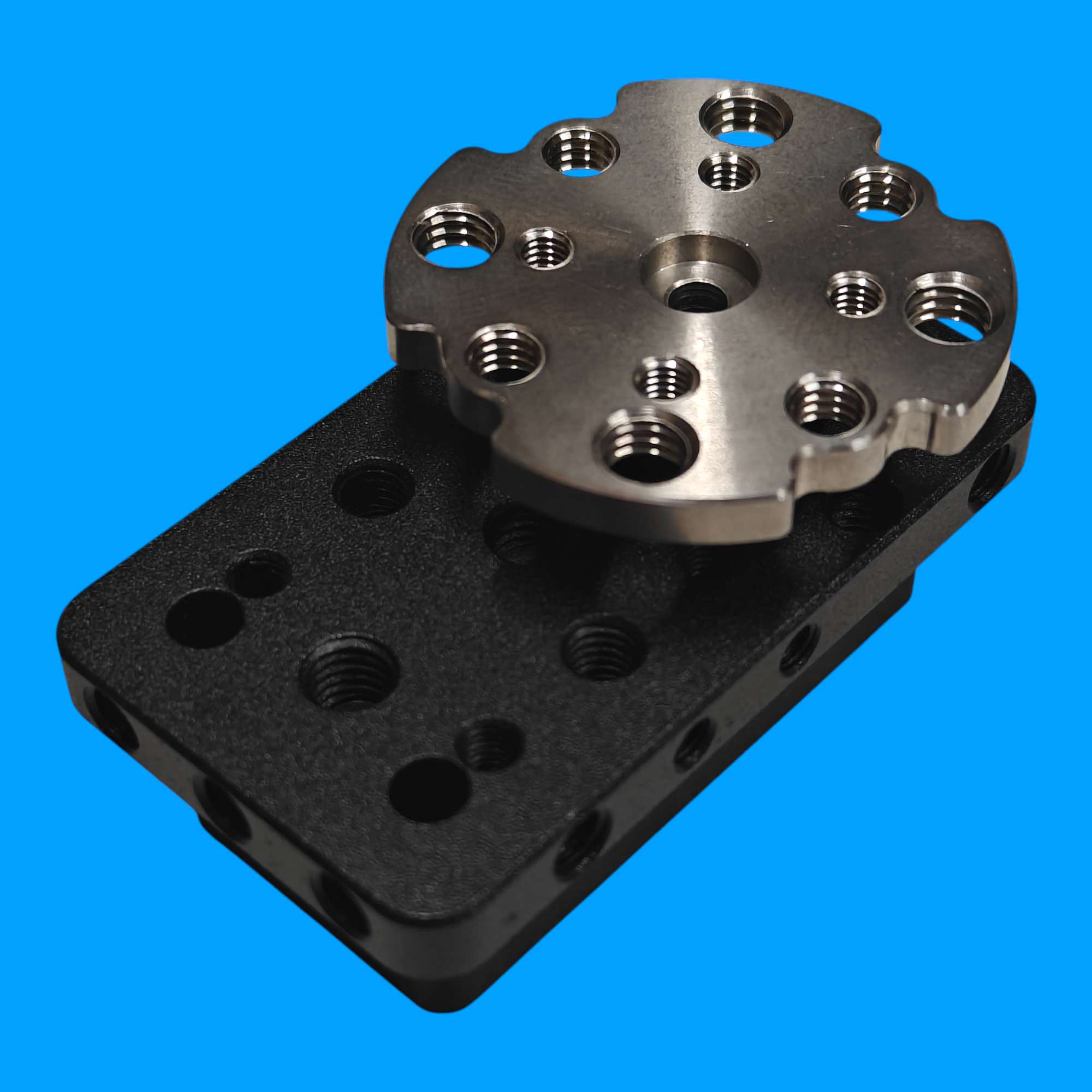

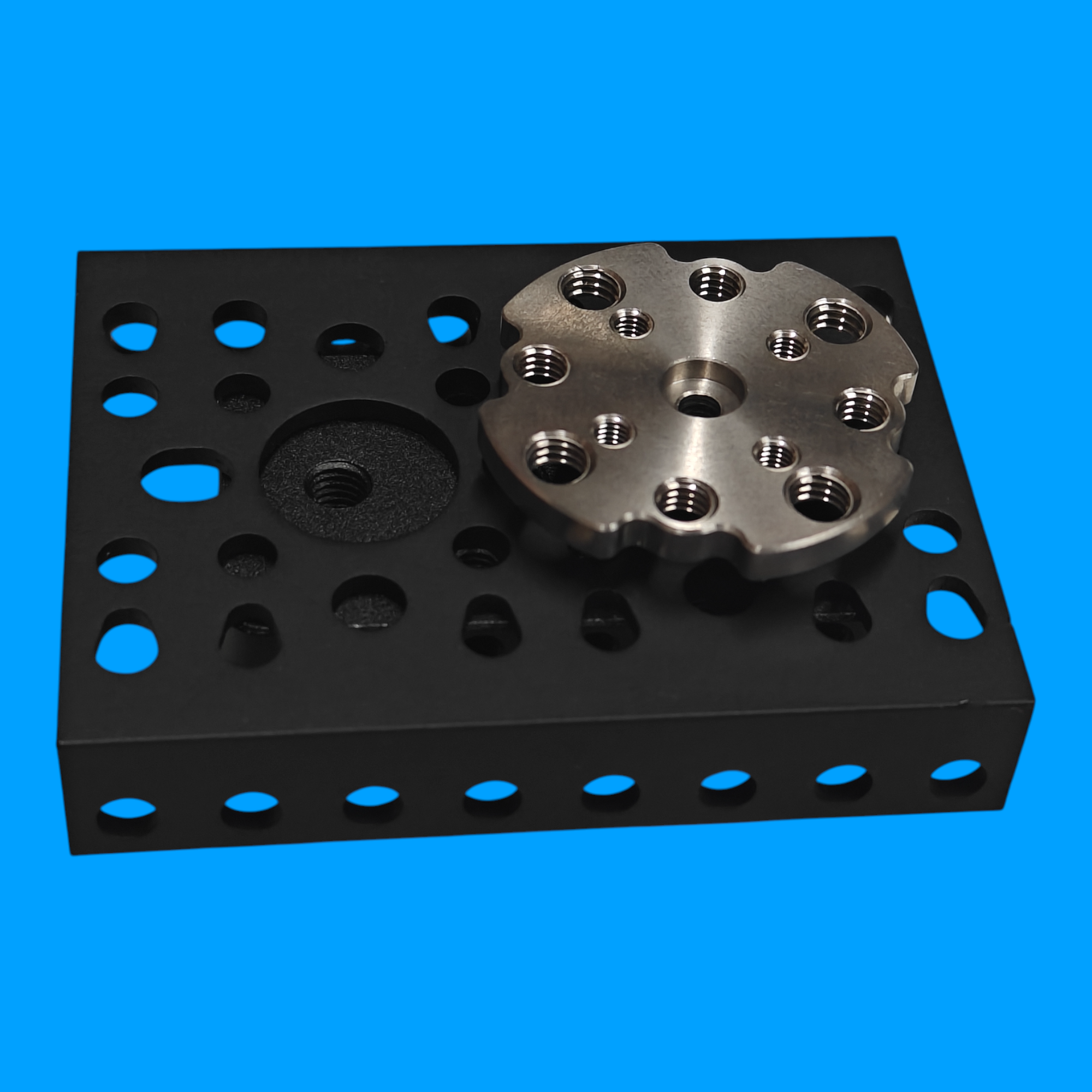

• Enhanced Servo Top Block: Replaces the standard servo top with an Aluminum 6061 block, featuring M3, M4, and 10-32 tapped holes for versatile mounting to FTC and FRC build systems.
• Robust Stainless Steel Hub: Includes a 304 stainless steel hub with M3, M4, and 10-32 holes, providing a stronger and more reliable connection point for attachments.
• Increased Bearing Support: Adds 2x bearings to the output shaft (totaling 4 with the servo’s original bearings), ensuring greater load-bearing capacity.
• Lightweight Addition: Adds only 30g to the servo, maintaining a low weight and low profile addition.
• Universal Compatibility: Works with all standard-size SWYFT Servos (Speed, Balance, Torque, any revision) for seamless upgrades.


CAD
Drawing
Assembly Video
