SWYFT Composite

Discover the ultimate material for competitive robots with SWYFT Composite, a high-performance sheet engineered for strength, lightweight design, and ease of fabrication. Refined by SWYFT Robotics, this composite sets a new standard as the best choice for FTC and FRC teams. One of the main benefits is significantly decreased weight compared to traditional materials, enabling lighter and more agile robot designs.

Key Features

• Versatile Thicknesses: Available in 1.75mm, 3mm, and 6mm to suit various structural needs, from lightweight panels to robust, rigid frames.

• Superior Strength and Lightweight: Full-density SRPP (Self-Reinforced Polypropylene) in 1.75mm and 3mm thickness provides outstanding durability with dramatically reduced weight (density: 0.93 g/cm³). The 6mm variant maximizes rigidity and lowers weight even further (density: 0.51 g/cm³) through an innovative structural foam core.

• Fabrication-Friendly: The 6mm composite is specifically designed to be easier to laser cut. Recommended Cutting Settings: Use an 80W or 100W CO2 laser at 15mm/sec speed, 70% power, and 1 pass for clean, efficient results. (See CO2 Laser Cutters)

• Black Composite Finish

Specifications

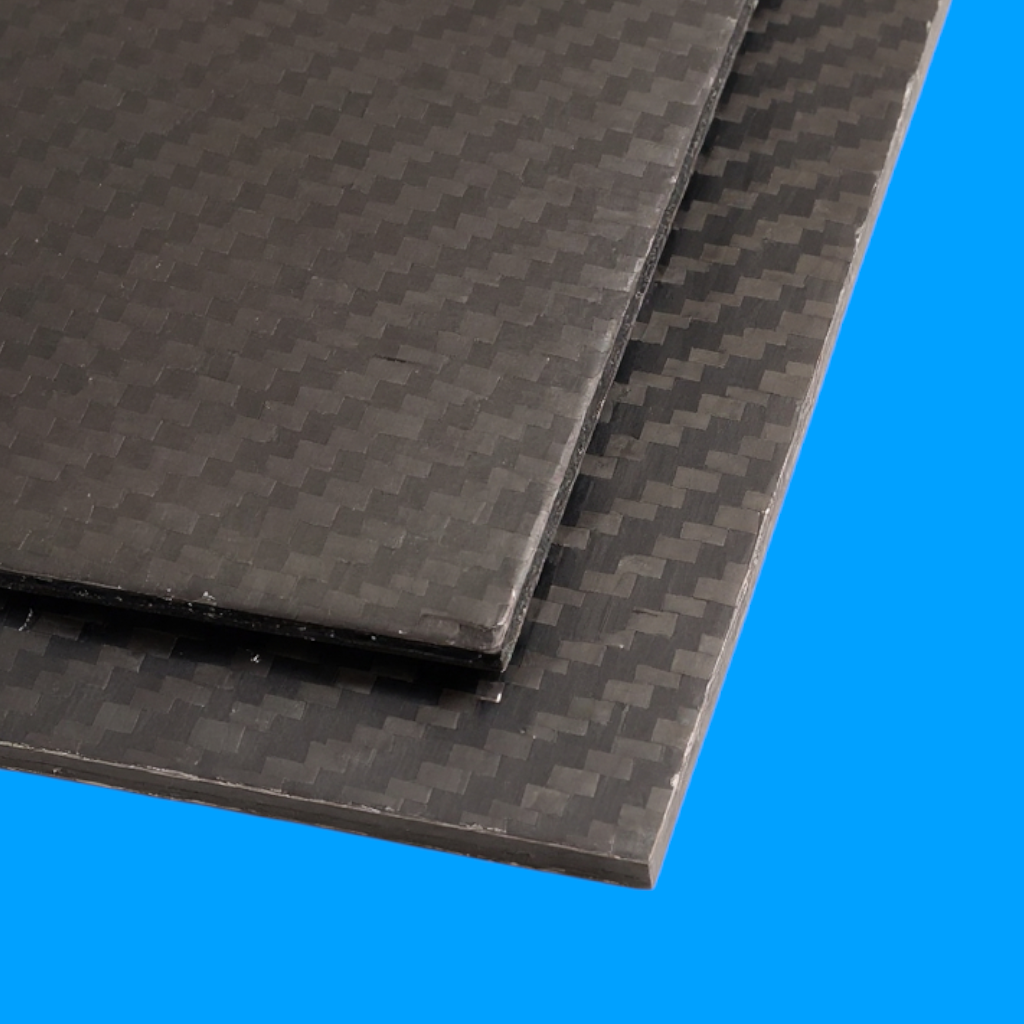

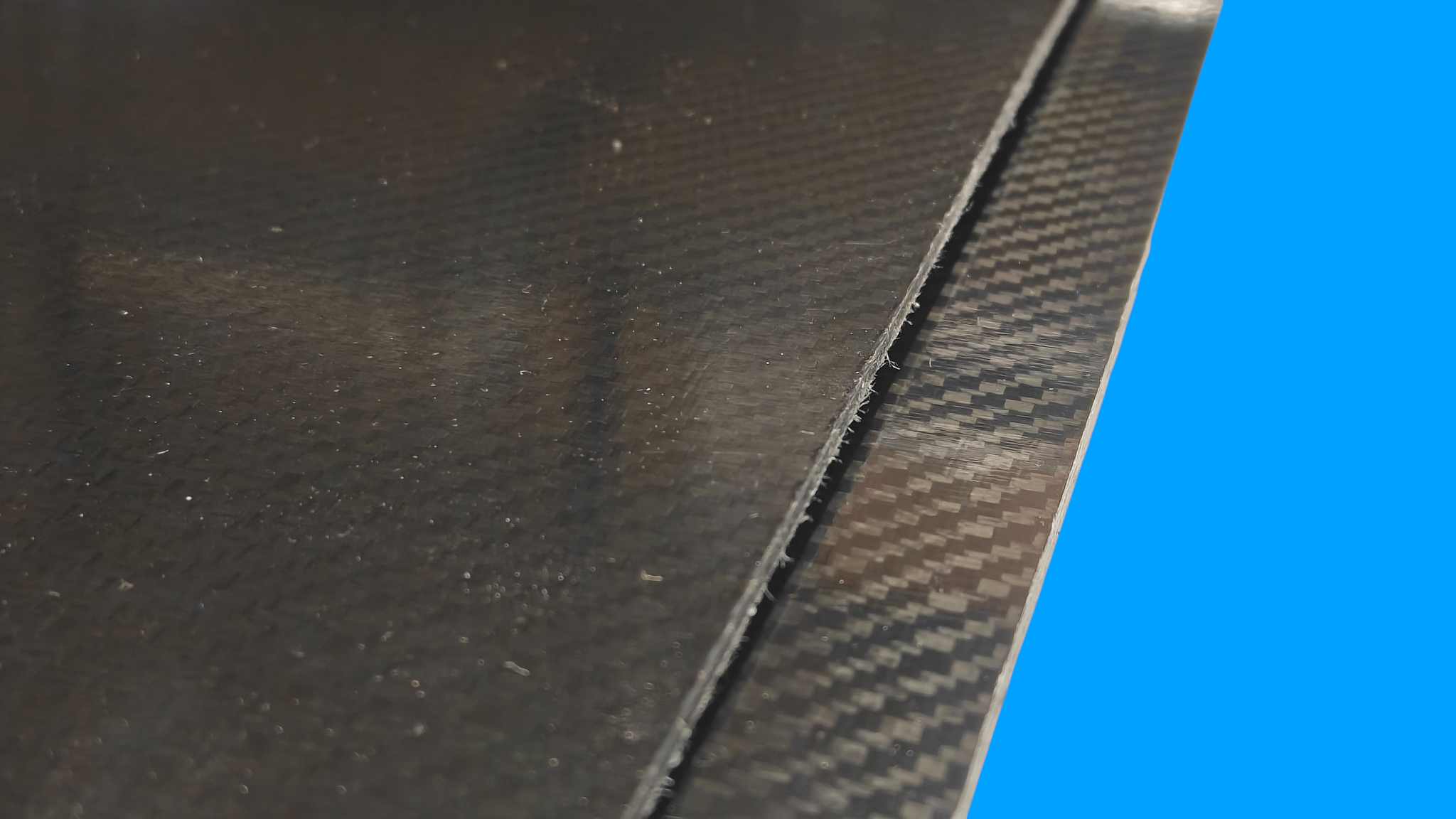

• Material: SRPP (Self-Reinforced Polypropylene); 1.75mm and 3mm are full density SRPP. The 6mm thickness features 1mm SRPP skins on either side of a high-density structural foam core.

• Thread Locker Safe

• Sheet Sizes & Weights:

  • 1.75mm: 660mm x 737mm

  • 3mm: 610mm x 610mm

  • 6mm: 610mm x 610mm

SWYFT Super Composite empowers teams to create lighter, stronger, and more precise robots. With its innovative composition and fabrication-friendly properties, it's the material that gives you the edge in competition.
