8060Z CNC Machine

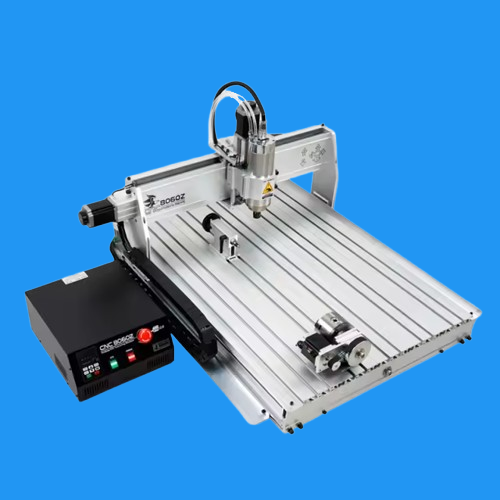

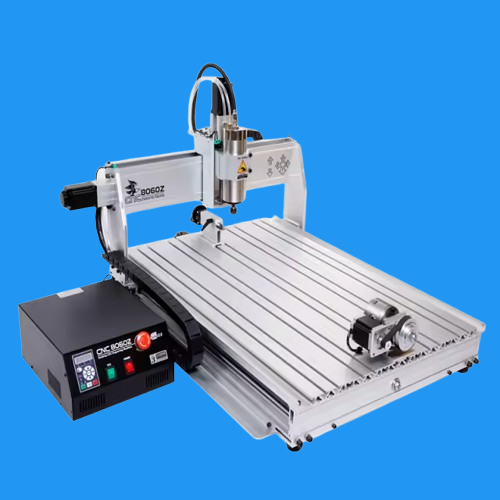

The 8060Z is a desktop CNC router built for the demands of competition-robot fabrication — milling, drilling, contouring, and routing across aluminum plate, Delrin, polycarbonate, PCB, hardwood, and SWYFT Composite. It ships nearly turnkey: connect it over USB to a Windows PC running Mach3, fill the spindle's coolant loop, and start cutting.

• Rigid frame — 6061-T5 extruded-aluminum construction on C7 ball screws (X/Z 1605, Y 2005) running on chrome-plated shafts and linear bearings, 25 mm on X and 16 mm on Z.

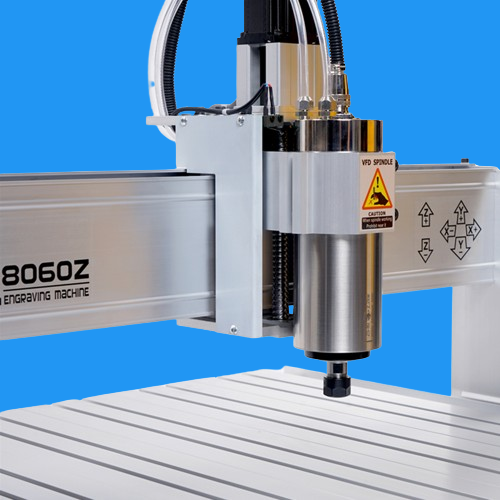

• Water-cooled spindle — a quiet HF water-cooled spindle spinning 3,000–24,000 rpm, in 1500 W or 2200 W depending on variant. The 1500 W spindle comes with an ER16 1/8″ collet; the 2200 W spindle comes with an ER20 1/8″ collet.
• Two work areas — a compact 575 × 375 mm or the full-size 790 × 580 mm of cutter travel.
• Optional 4th axis — add a rotary axis for engraving and machining cylindrical parts, up to 110 mm turning diameter at 60 mm center height.
• Ready to run — USB control and limit switches are built into the machine, and automatic tool-length checking works off the probe in the box; every machine ships with a control box, tool package, four clamps, that probe, a water pump and cabling.

The 1500 W spindle comes with an ER16 1/8″ collet. The 2200 W spindle comes with an ER20 1/8″ collet.

We recommend this ER20 collet set (alternate) for ER20 collets and this ER16 collet set for ER16 collets.

Work area (by variant)	575 × 375 mm or 790 × 580 mm of cutter travel
Z-axis stroke	85 mm (790 × 580 model). The “105” in the variant name is the work-area height from the manufacturer's drawing, which lists the Z stroke separately as 85 mm.
Table size	990 × 600 mm (790 × 580 model)
Spindle (by variant)	1500 W or 2200 W HF water-cooled, 3,000–24,000 rpm
Frame	6061-T5 extruded aluminum alloy
Transmission	C7 ball screw — X/Z 1605, Y 2005
Rails	Chrome-plated shaft + linear bearings — 25 mm X, 16 mm Z
Collet	ER16 1/8″ with 1500 W spindle; ER20 1/8″ with 2200 W spindle
Feed rate	300–4000 mm/min
Stepper motors	60BYGH86, each axis independently driven
Max material thickness	120 mm (790 × 580 model)

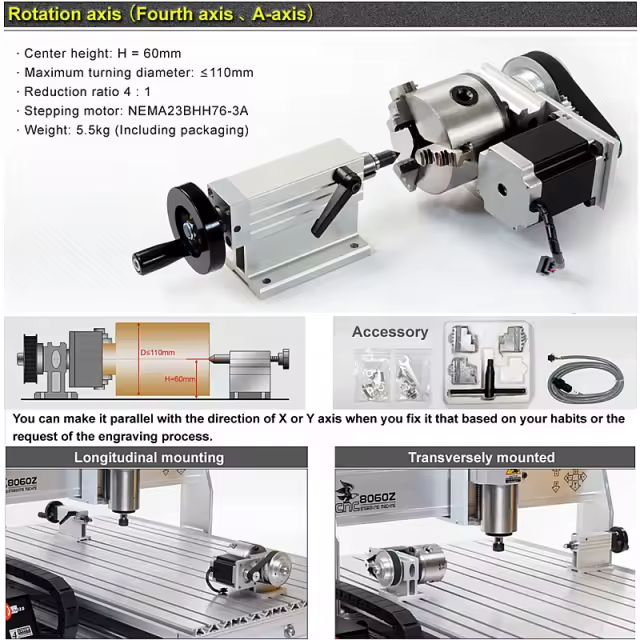

4th axis (optional)	Rotary — 60 mm center height, 110 mm max turning diameter, 4:1 reduction, NEMA23 stepper
Control	USB 2.0, Mach3 on Windows
CAM software	Anything that outputs G-code — ArtCAM, Aspire, Type3, Cut2D/3D, Ucancam, PowerMill
File types	G-code — .nc, .ncc, .tab, .txt
Power	100–120 VAC or 220–240 VAC, 50/60 Hz
Operating environment	5–40 °C, 35–80% humidity
Machine dimensions	1130 × 890 × 610 mm (790 × 580 model)
Weight	86 kg including packaging (790 × 580 model)

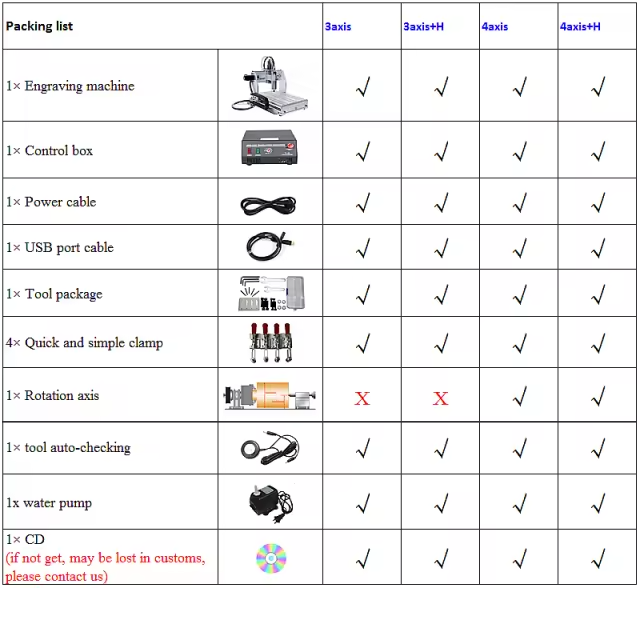

Included	Control box, tool package, 4× clamps, tool-checking probe, water pump, USB and power cabling
Not included	Coolant reservoir (20 L or larger) for the spindle, the wireless Mach3 handset (ships only with the “+H” builds, which these variants aren’t), and the Windows PC that runs Mach3
