130W 55" x 35" CO2 Laser Cutter

Setup Guide

CO2 Laser Cutter: The Ultimate Build Season Advantage

Tired of outsourcing parts and waiting for deliveries?

Take control of your build season with a CO2 Laser Cutter. This machine empowers your team to:

• Rapid Prototyping: Quickly iterate on designs and test concepts before committing to final production.
• Cost Savings: Reduce expenses by cutting your own parts and avoiding costly outsourcing fees.
• Precision Cutting & Engraving: Effortlessly cut through most plastics, delrin, acrylic, wood, SRPP, and other common materials (no metal) with pinpoint accuracy. Create custom parts, intricate designs, and professional-looking sponsor panels.
• Customization: Personalize your robot with unique designs and team branding that stand out from the competition.
• Learning Opportunities: Engage students in hands-on STEM learning with the power of laser cutting technology.
• Easy to Use: Intuitive software and user-friendly controls make it simple for both mentors and students to learn and operate. Using a laser cutter is easier and faster than a 3D printer!

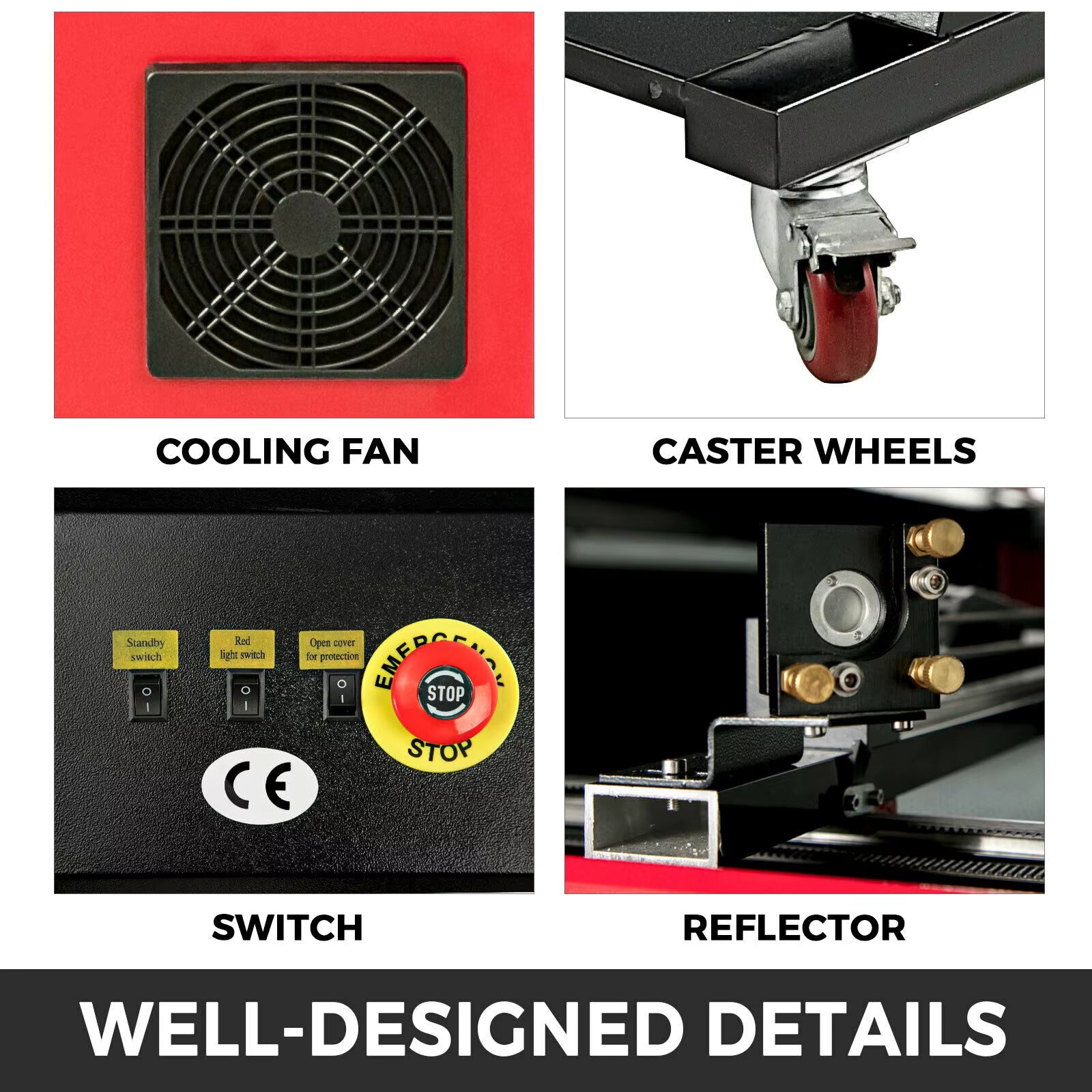

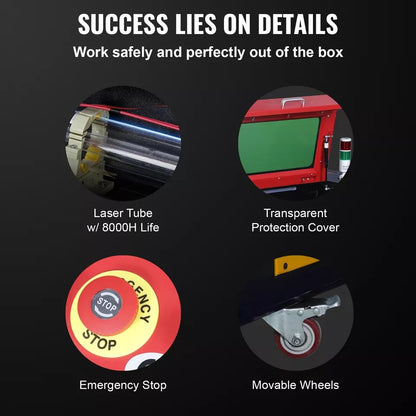

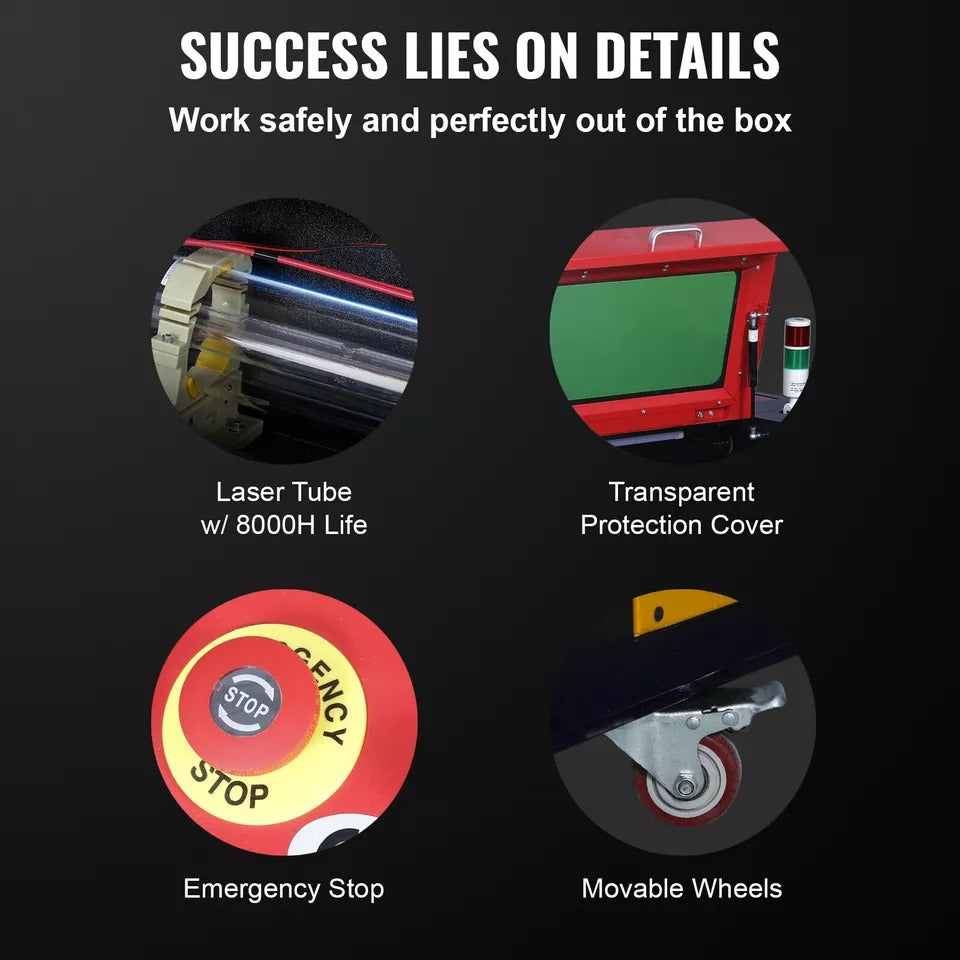

• Safety First: Comprehensive safety features including automatic shutoff switches, emergency stop buttons, and protective enclosures to keep your team safe.

Transform your FRC robot from concept to reality faster than ever before with a CO2 Laser Cutter.

It's more than a tool – it's your team's competitive edge.

CERTIFICATIONS:
FDA Compliant
CE Certification
ISO9001 Quality Certification

SPECIFICATION:
Laser Power: 130W

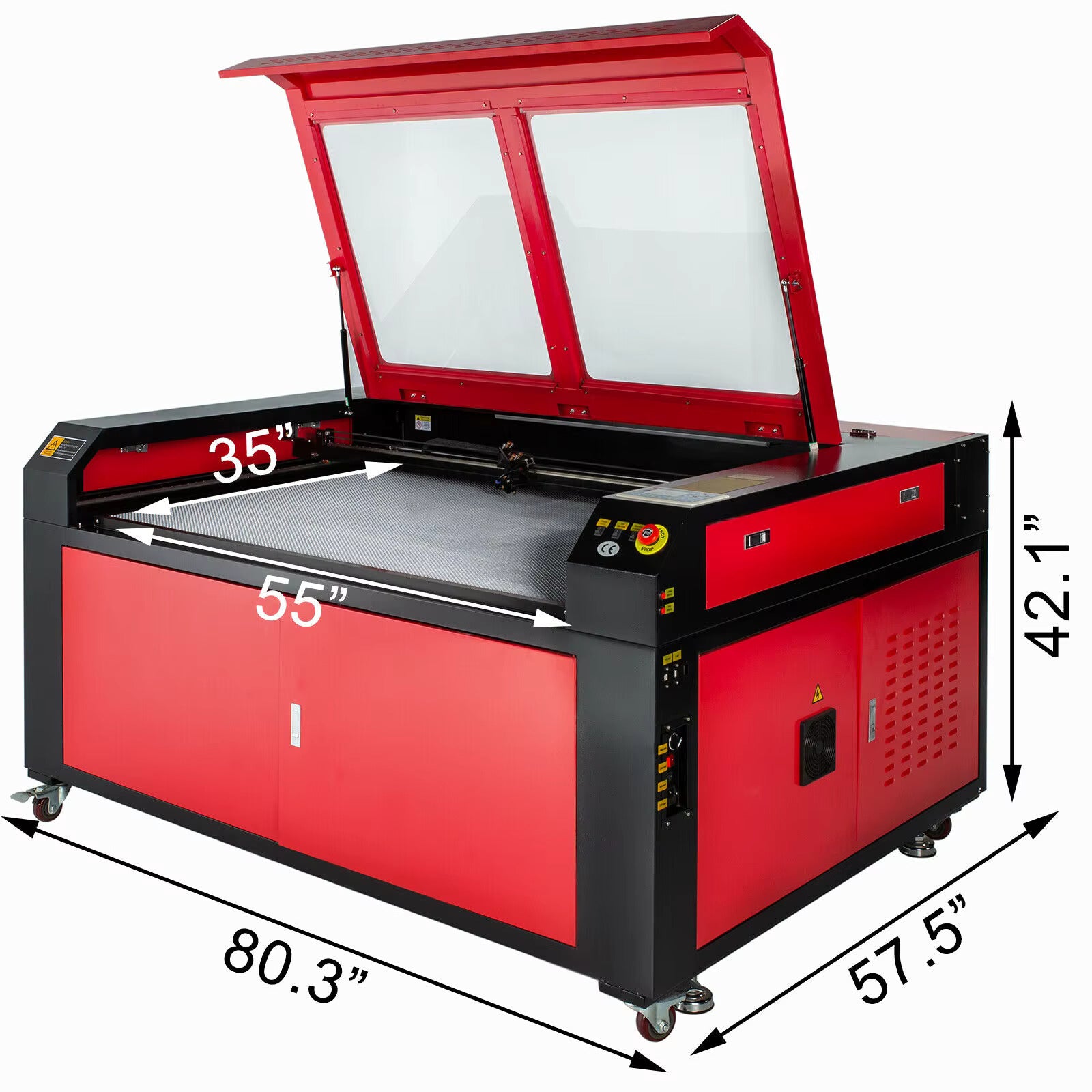

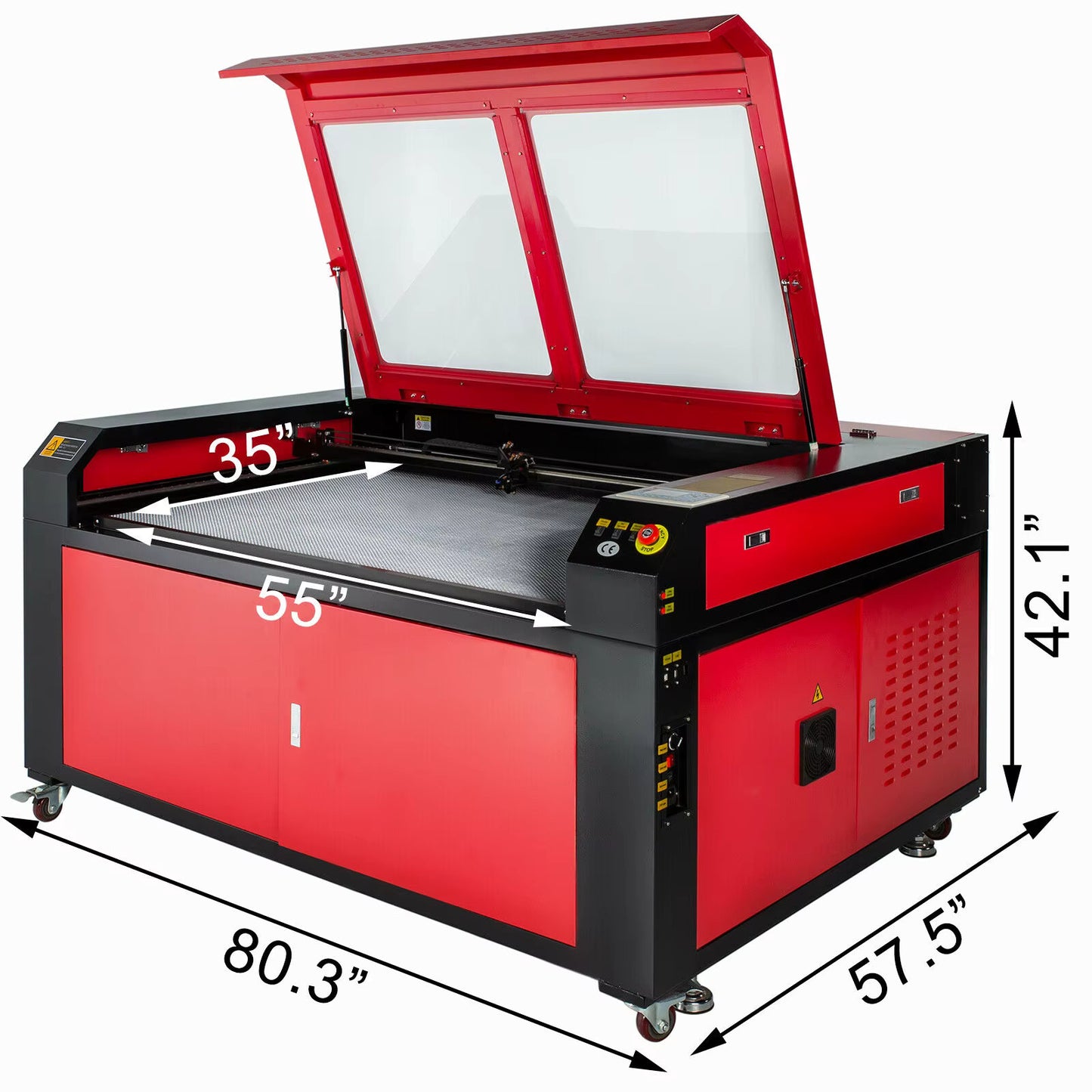

Machine Dimensions: 80" L × 57-1/2" W × 42-1/8" H

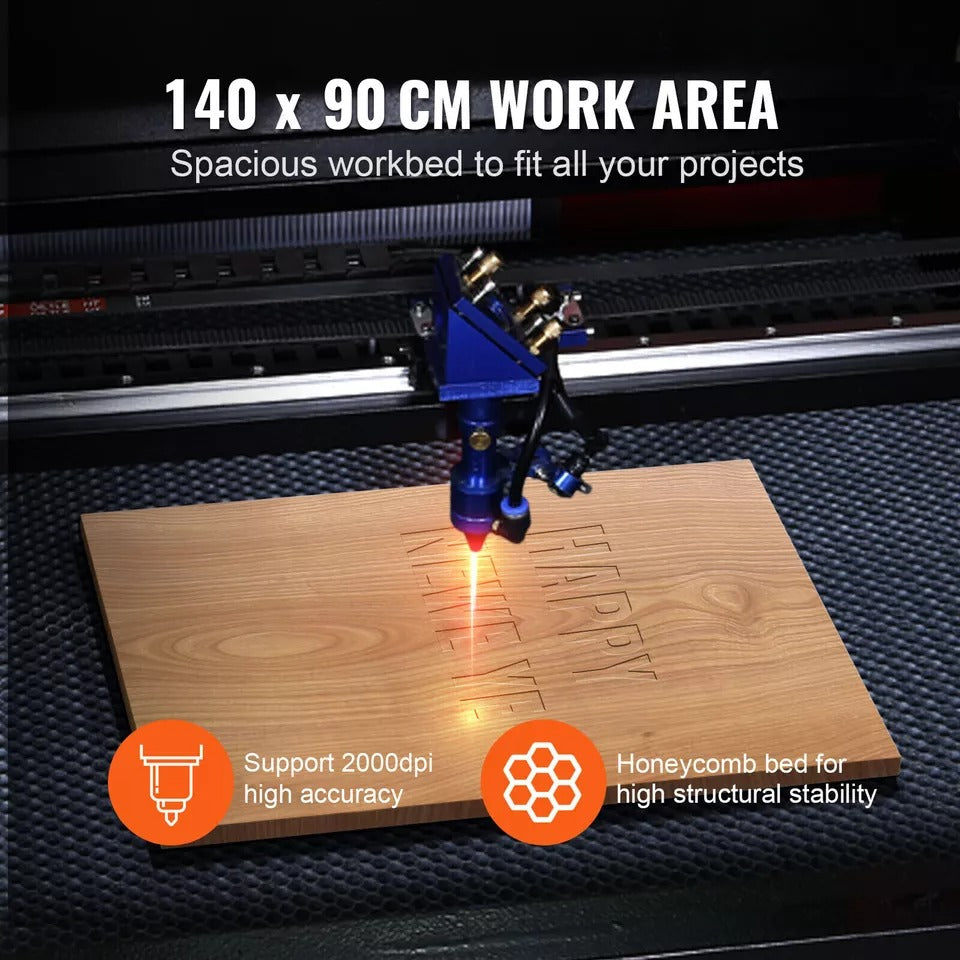

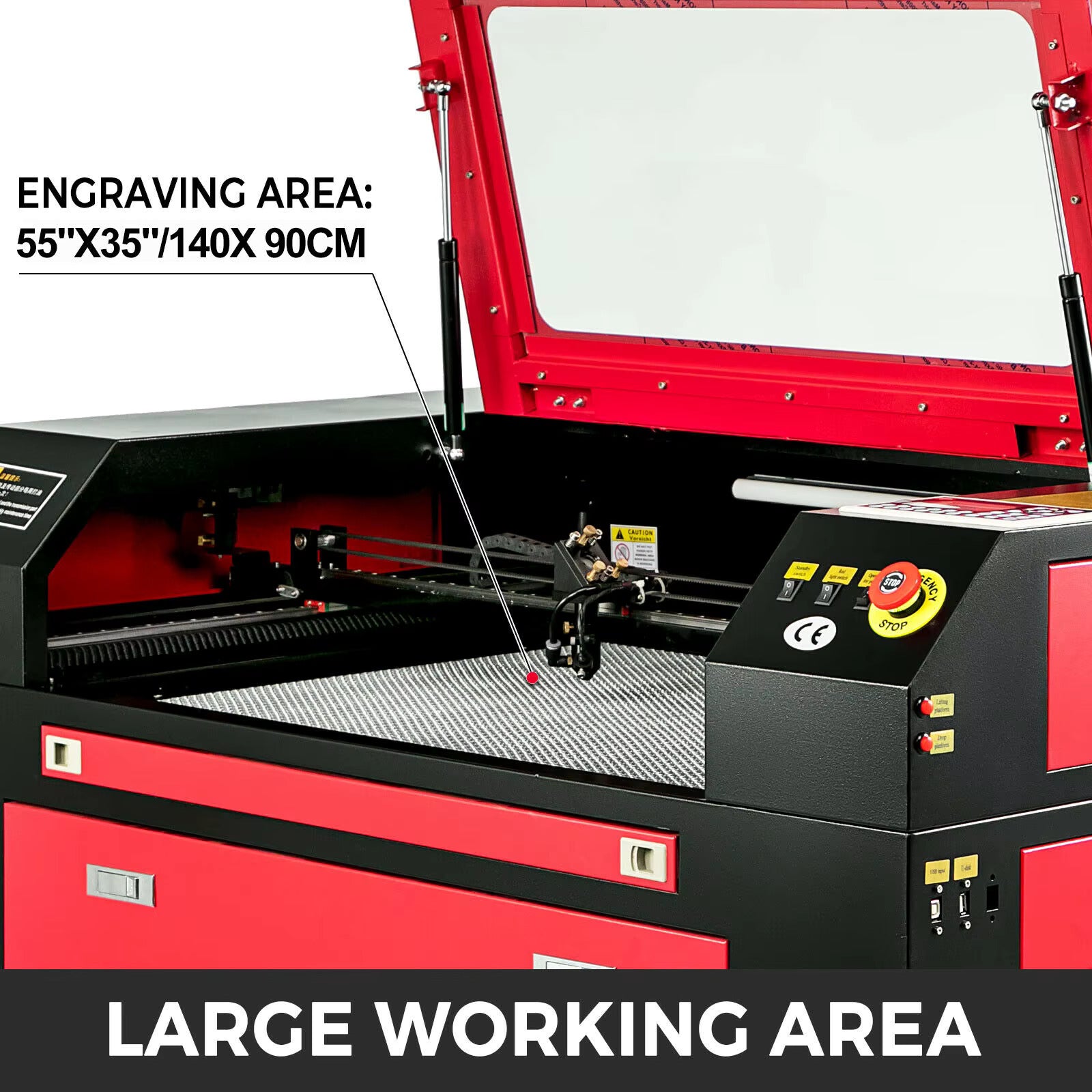

Engraving Area: 1400x900mm / 55x35in
Laser Wavelength: 10.6um
Work Motor: 57 Hybrid Stepper Motors
Bench Adjustment: Electric up and down lift 50cm
Positioning Accuracy: ±0.01mm

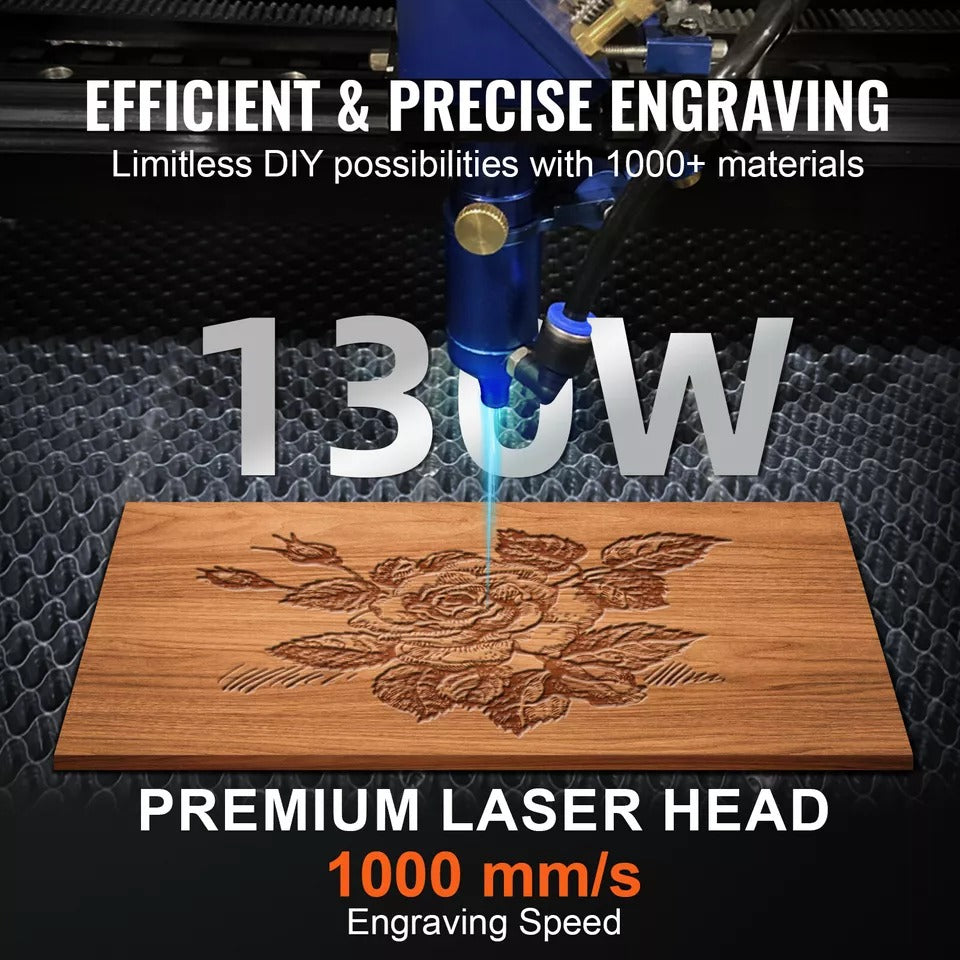

Engraving Speed: 0-800mm/s
Cutting Speed:0-600mm/s
Engraving Cutting Depth: 0-10mm (for reference only, depending on different materials and power)
Engraving and Cutting Precision: ≤1000dpi
Color Separation Cutting: Up to 256 layers of color separation cutting
Subsidiary Positioning: Red Light Positioning
Included Software: RDworks

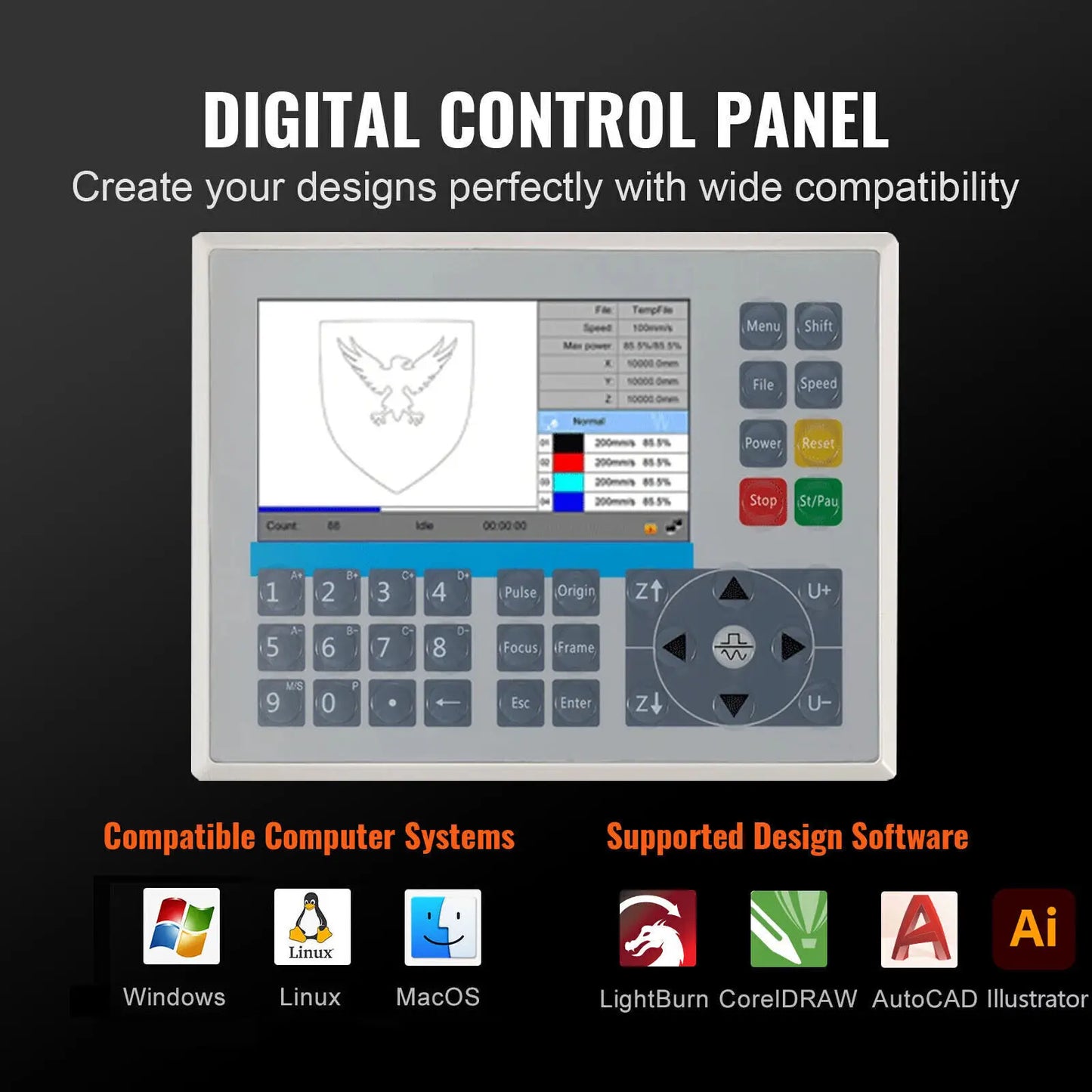

Control Motherboards: RD6445
Software Compatible: CorelDraw, AutoCAD, Illustrator, LightBurn

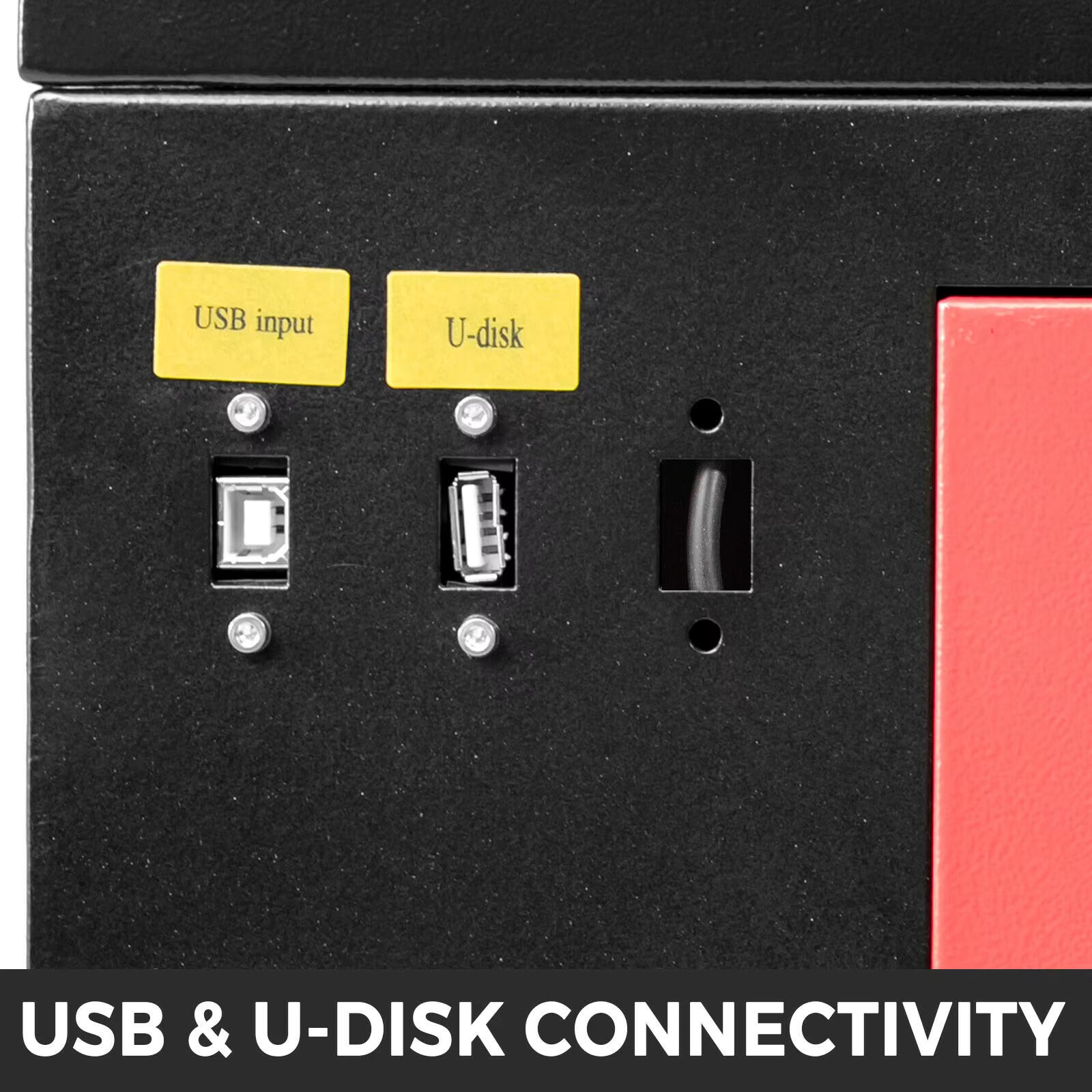

Data Transmission: USB, Web Port, U-Disk
Power Supply: AC110/ 60HZ
Machine Size: 1860*1320*940mm
Product Weight: 400kg

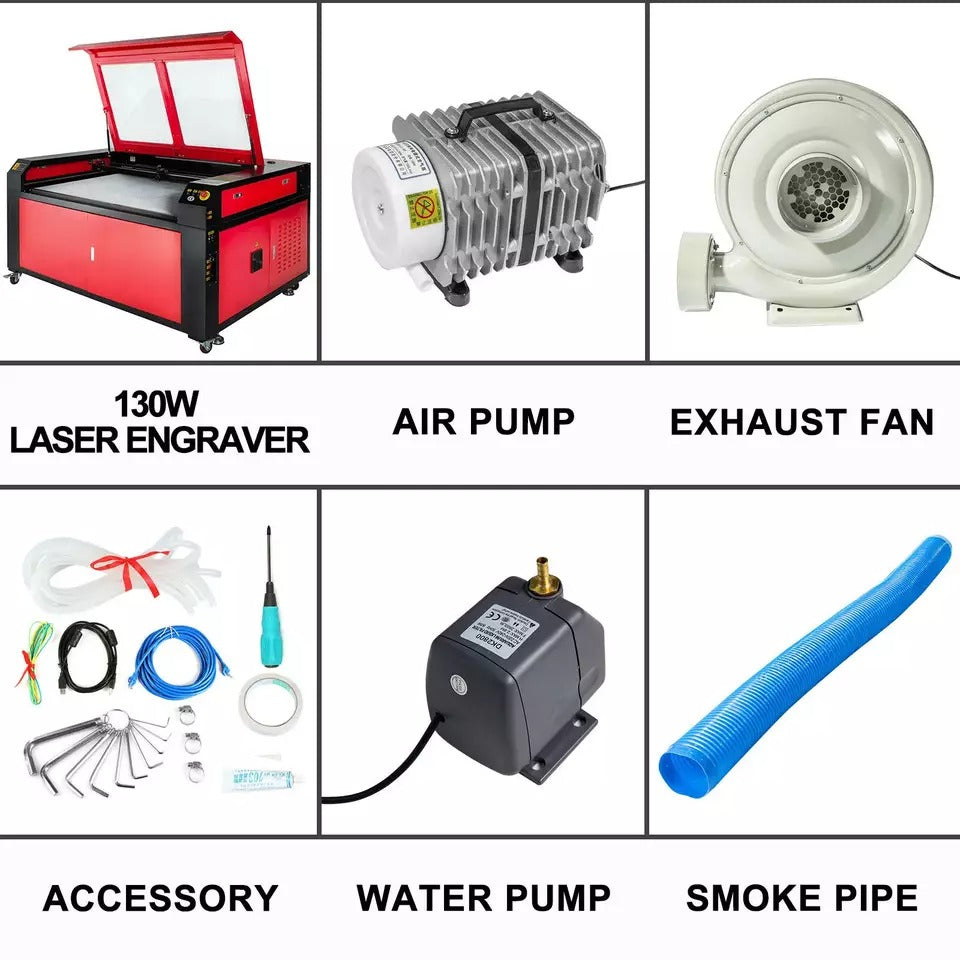

PACKAGE INCLUDED:
130W CO2 Laser Cutter
Air Assist Pump
Water Pump
Vent Pump
U-Disk
Repair tool
Power cable
Pipe clamp
Dimming paper
Smoke tube
Manual

130W CO2 Laser Cutter Warranty Information
