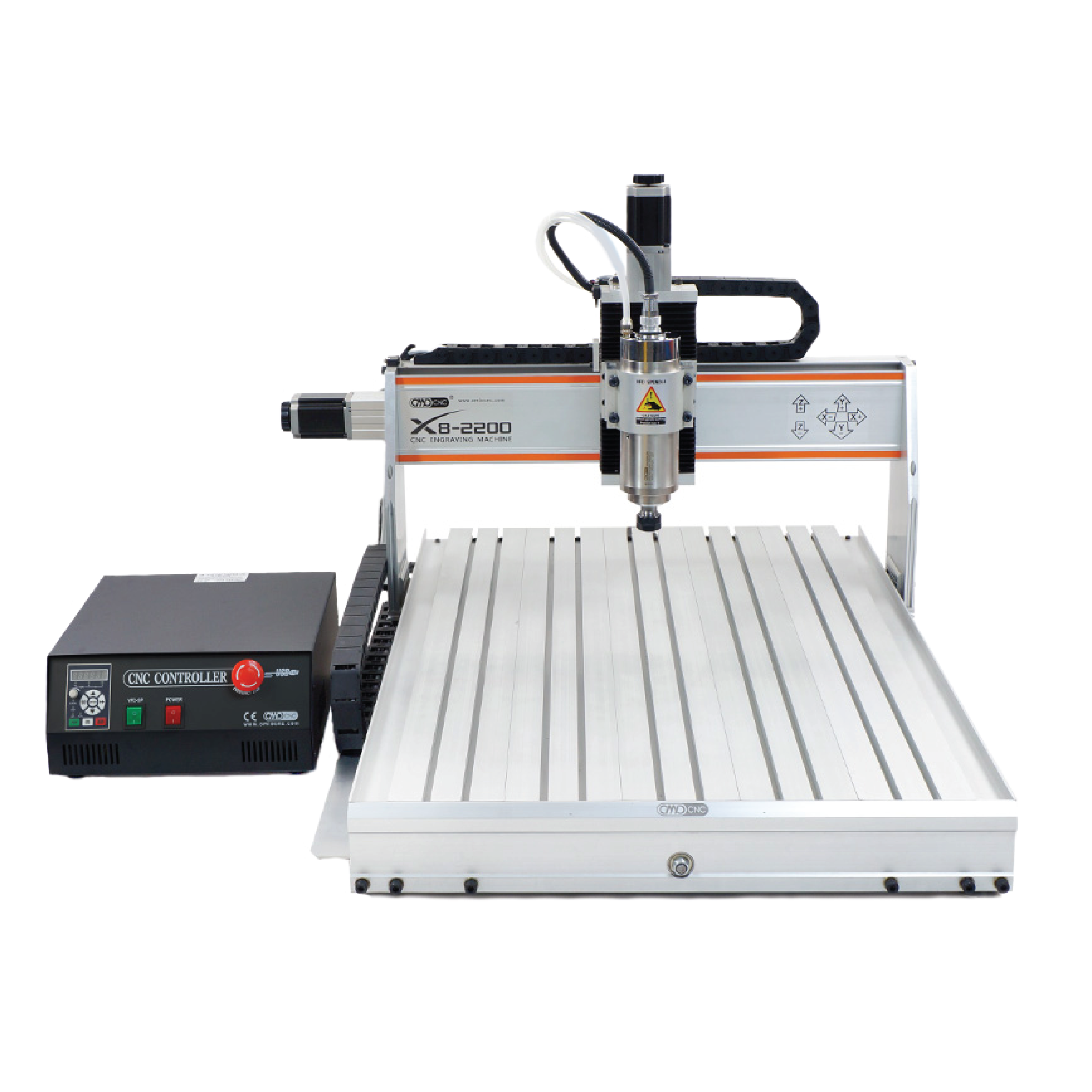

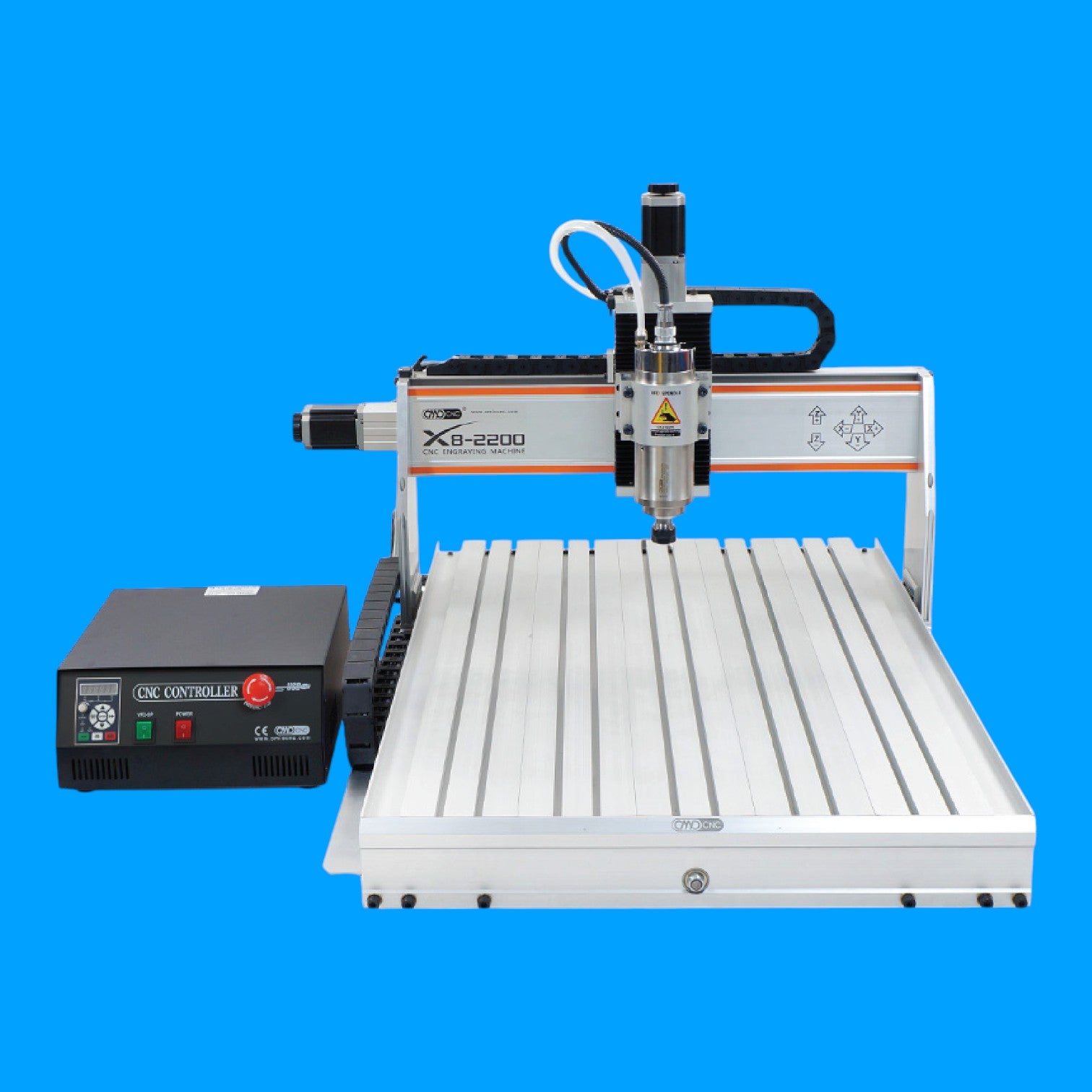

OMIO CNC (X8-2200L-USB 110V)
CNC machines will ship directly from the factory
Documentation:
https://drive.google.com/file/d/1CjTjVDTzEmKJ-iSqHD0kaV4_3-gNhl_i/view?usp=sharing
After download zip file, unzip it , then please see the "Mach3-ConfigurationV3.pdf" first , follow the instructions step by step.
Rout the parts you'd otherwise send out
Mill aluminum plate, Delrin, and polycarbonate to tight tolerances (structural brackets, drivetrain parts, and custom fixtures) without outsourcing or long lead times.
Rigid, repeatable, precise
A water-cooled spindle on a solid frame holds accuracy through real cutting loads, so parts come out to spec run after run.
Set up for schools and teams
Ships directly from the factory, runs on Mach3, and we welcome purchase orders and tax-exempt purchasing for schools and registered teams.
- Spindle power
- 2200W
- Control
- USB
- Input
- 110V
Material capability
Route what your robot is made of
A router earns its keep on the parts you'd otherwise send out. This one handles the stock competition robots are built from:
- Aluminum plate
- Delrin / acetal
- Polycarbonate
- SWYFT Composite
- Hardwood
Compare the range
Find the right cnc machine for your team
The OMIO X8 is a staple in the robotics community. The 8060Z is a lower-cost alternative with similar performance, two work-area sizes, and more spindle and 4th-axis options.
| You're viewingOMIO CNC (X8-2200L-USB 110V) |  8060Z CNC Machine | |
|---|---|---|
| Work area | One size | Two sizes: 575 × 375 mm or 790 × 580 mm |
| Spindle | 2200 W | 1500 W or 2200 W water-cooled |

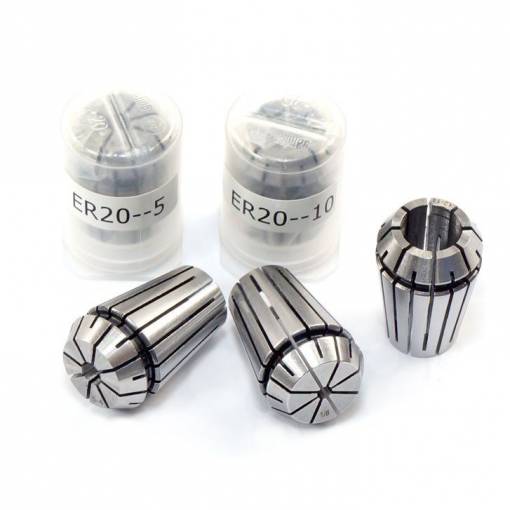

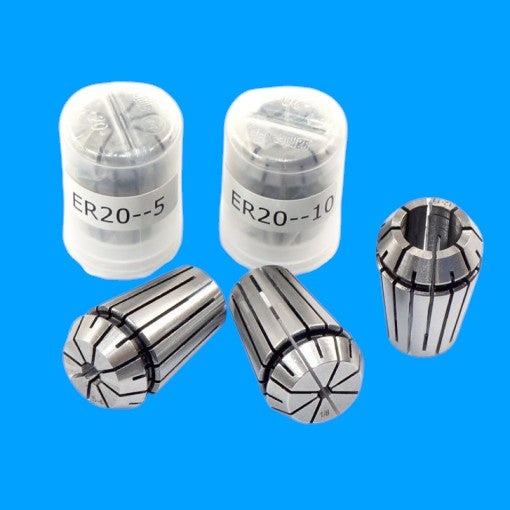

| Collet | ER20 — 1/8″ to 1/2″ end mills | ER16 (1500 W) or ER20 (2200 W), 1/8″ included |
| Best for | The shop staple — widely used on FTC and FRC teams | Lower-cost alternative with similar performance, and more options |
| Starting price | From $3,999.99 | From $2,399.99 |
| This machine | View → |
